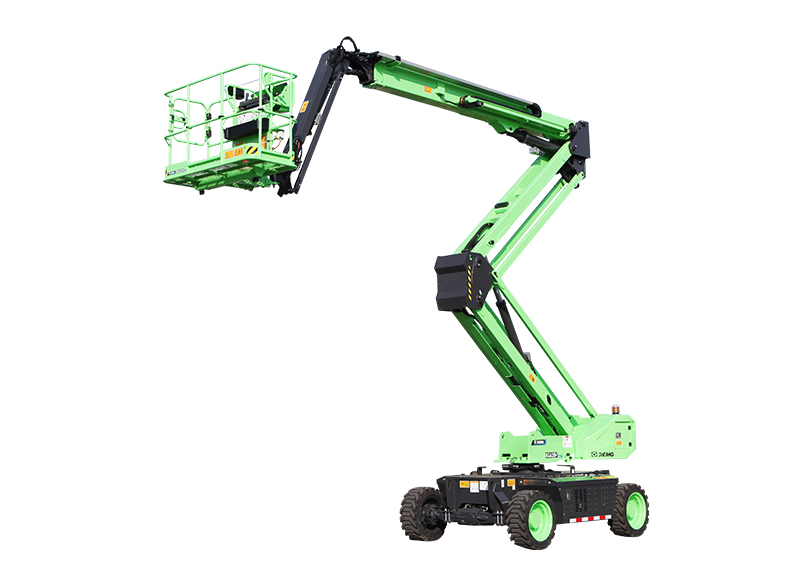

XGA20H

Hybird Boom Lift

XGA20H

Working Height(mm): 201.8 Lift capacity(kg): 320(unlimited) Weight(kg): 9500

Order Online Service Outlets

XGA20H

XGA20H is a diesel generator set equipped with a diesel hybrid boom lift, the machine structure is compact, large load capacity, strong driving ability, long range, energy saving and environmental protection, suitable for indoor and outdoor working conditions.With a load capacity of 320kg, the XGA20H is leading in the same metre class.XGA20H adopts the extended-range hybrid system, with a full fuel range of over 20 days, and can also work while charging, with worry-free range.

XGA20H

Service Outlets Order Online

Parameters
Cases

PARAMETERS

Item Unit Parameter: Working Height mm 201.8; Lift capacity kg 320(unlimited); Weight kg 9500; Overall dimension-Stowed mm 8067×2300×2570; Overall dimension-Transportation mm 7215×2300×3000; Dimension of working platform mm 1830×760×1150; Wheelbase mm 2500; Fly jib length mm 1850; Ground clearance mm 320; Max.Platform height m 18.18; Max.Working range m 11.14; Max.Occupants - 2; Max.Working slope - X-5°/ Y-5°; Flying jib luffing range - -65°～70°; Turntable rotation - 360°; Platform rotation - 160°; Drive speed stowed 6; Turntable tailswing Axle retracted/Axle extended 750; Max.Gradeability - 40% (22°)
