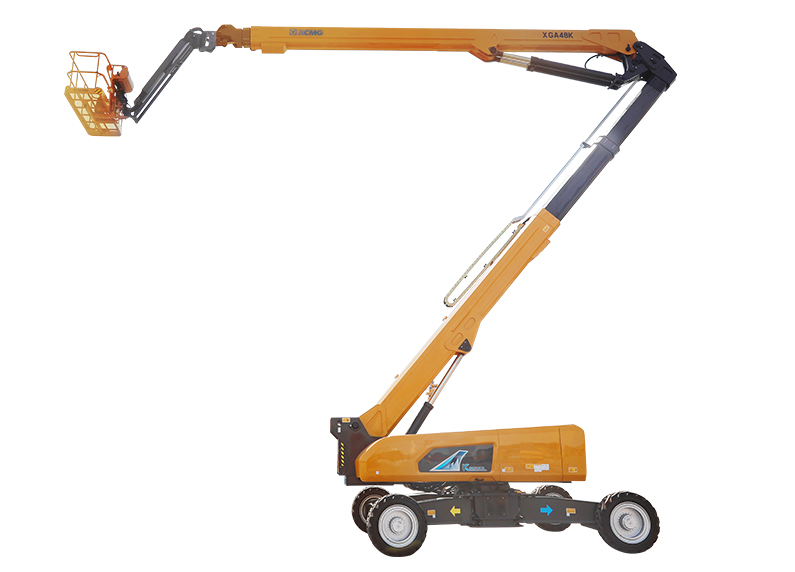

XGA48K

Engine Powered Articulated Boom Lifts

XGA48K

Max. Working Height(m): 48.7 Max. Platform Height(m): 46.7 Max. Working Range(m): 24.5

Order Online Service Outlets

The XGA48K has outstanding extensibility and working range, which can maximise upward, downward and spanning capabilities; with a maximum working range of 24.5 metres, it can realise multi-directional positioning functions and reach the workspace efficiently.It has excellent control performance, with customised valve control system, each movement can be precisely controlled, greatly improving the smoothness of movement.The XGA48K equipped with power self-matching energy-saving system, reduces the comprehensive fuel consumption by more than 30% in each working condition compared with the traditional hydraulic system.

XGA48K

Service Outlets Order Online

Parameters
Cases

PARAMETERS

Item Unit Parameter: Max. Working Height m 48.7; Max. Platform Height m 46.7; Max. Working Range m 24.5; Max. Load Capacity kg 300(unlimited)/460(limited); 1st boom luffing range ° -4°~ +68°; 2nd boom luffing range ° -64°~ +75°; Rotation Angle of Turntable ° 360°; Max. Travel Speed km/h 4.5（stowed) 0.5（raised or extended); Max. Grade Ability % 40% (22°); Wheel Base mm 5220（axle retracted）/4590（axle extended）; Total Weight kg 27380
