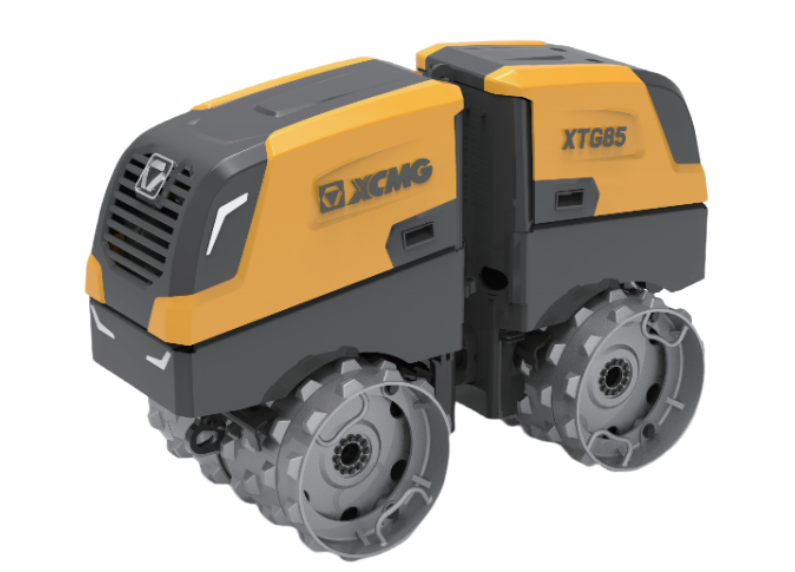

XTG85

Trench Compactor

XTG85

Operating weight(kg): 1600 Front axle weight(kg): 800 Rear axle weight(kg): 800

Order Online Service Outlets

XTG85

XTG85 groove compactor has large exciting force, vertical vibration, two-stage amplitude, remote control, safety and reliability. Compact structure, flexibility, especially suitable for ditch and sewer construction, backfilling and foundation soil compaction.

XTG85

Service Outlets Order Online

Parameters

PARAMETERS

Item Unit Parameter: Operating weight kg 1600; Front axle weight kg 800; Rear axle weight kg 800; Static linear load N/cm 92/92; Operating speed km/h 1.2/2.8; Theoretical gradeability % 55/45; Minimum turning radius mm 1440/2290(inside/outside); Minimum ground clearance mm 225; Wheelbase mm 1000; Braking distance m ≤ 1.6(smooth cement pavement); Model - KUBOTA; Dimensions mm 1,910 x 610 x 1,300; Emission standard - EU Stage V / T4F
