Core Drilling Rig
Drilling depth (m): 1000 (BQ) Max. torque (N·m): 4000 Max. rotation speed (rpm): 1250

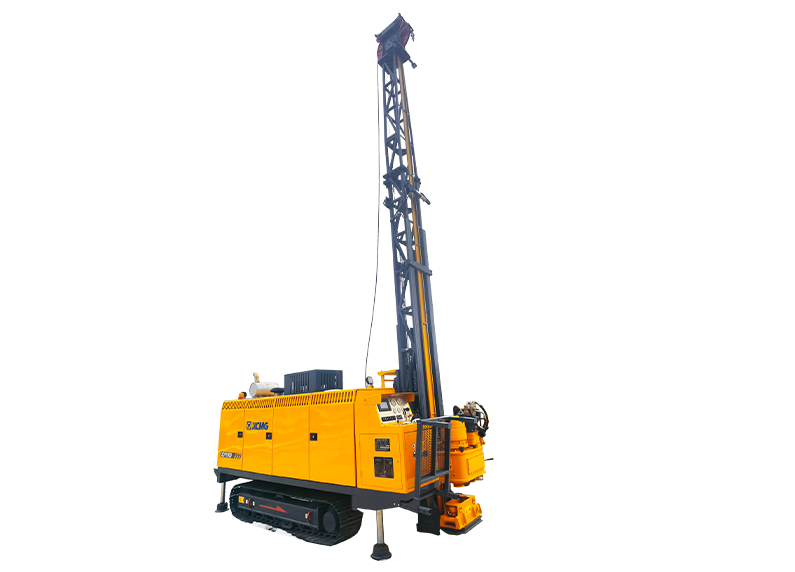

XDY1000 core drilling rig is specially designed for the general investigation and exploration of minerals which need coring operation, and it is applied to a great variety of high efficiency drilling process such as diamond wire-line coring. The equipment is powered by hydraulic system, and has a lot of merits like easy operation and convenient transportation. It can be widely used in the exploring of mining, nonferrous metals, chemical industry and coal field.

  • Parameters
Item Unit Parameter
Drilling depth m 1000 (BQ)
Max. torque N·m 4000
Max. rotation speed rpm 1250
Max. pull of main winch kN 68
Rated power kW 119
Engine - QSB4.5
Emission standard - CN III
Weight t 12.1
Transport dimensions mm 6100×2410×2730
