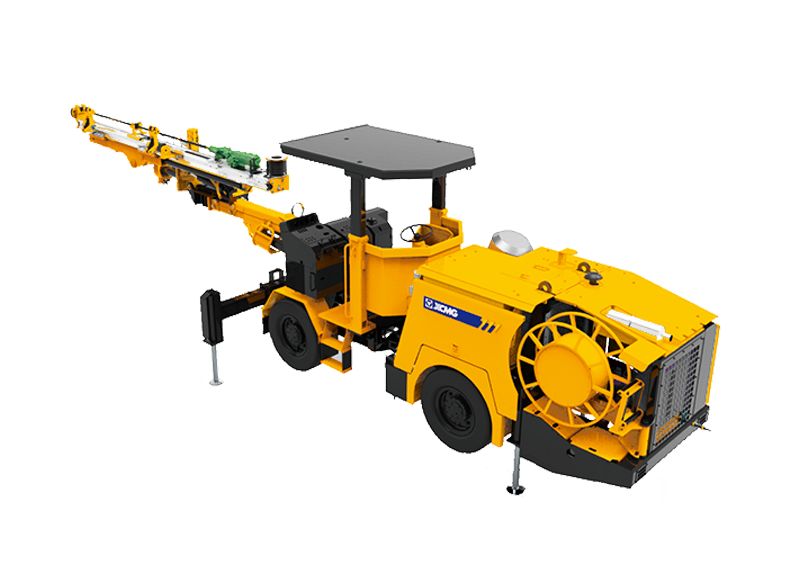

XUD135

Face Drill rig

XUD135

Engine Brand(/): Yuchai Engine Model(/): YCF3090-T481 Engine Rated power(kW): 66

Order Online Service Outlets

High Reliability: The light aluminum alloy beam has high bending, torsion and fatigue resistance. The unique single-layer hose reel can effectively improve the hose life and reduce the maintenance strength.
Precise Operation: The telescopic drill boom is kept in parallel in all directions, and the positioning is fast and accurate. The square structure provides high strength and good shock absorption performance.
Stable Construction: The drilling system has anti-jamming, anti-idle-drilling and automatic withdraw functions, which can effectively improve the drilling efficiency and reduce the loss of drilling tools.
Safety Protection: The hood of the whole machine adopts full cover structure to provide safe and reliable protection.

XUD135

Service Outlets Order Online

Parameters

PARAMETERS

Item Unit Parameter: Engine Brand / Yuchai; Engine Model / YCF3090-T481; Engine Rated power kW 66; Engine Emission standard / 国四 China Stage IV; Rock drill Brand / 安百拓/蒙特贝/XCMG; Rock drill Model / 18U/HC109/XHD20; Rock drill Impact power kW 18/18/20; Drill boom Boom extension mm 1250; Drill boom Feed extension mm 1250; Feed beam Total length mm 5437/5986; Feed beam Drill steel length mm 3700/4305; Feed beam Single-pass drilling depth mm 3400/4000; Water system Rated flow m3/h 5; Water system Min. water inlet pressure bar 2; Air system Flow L/min 600/700; Air system Pressure bar 8; Electrical system Voltage V 380; Electrical system Frequency Hz 50; Electrical system Cable length m 80; Chassis Gradeability ° 14; Chassis Traveling speed km/h 15/18; Dimensions Transport state mm 11860×2065×2420; Total operating weight t 14
