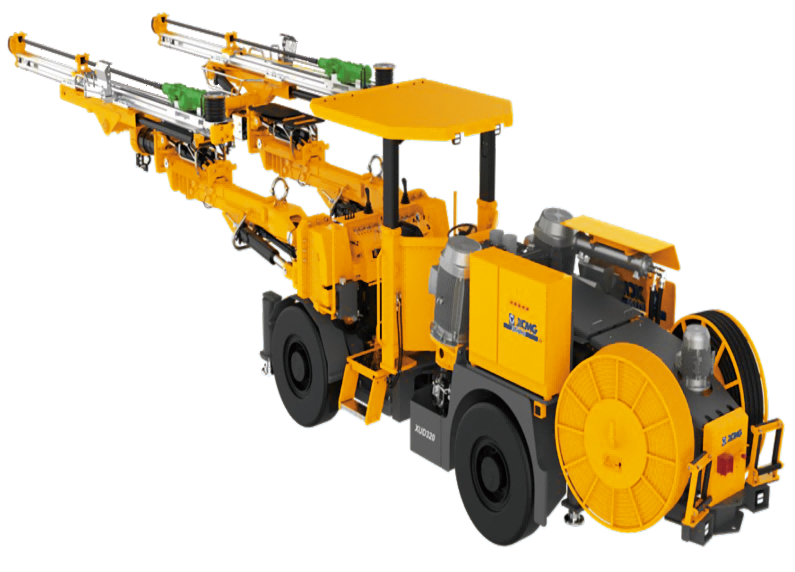

XUD235B

Face Drill rig

XUD235B

Engine Brand(/): Cummins Engine Model(/): B3.9CS4 130 Engine Rated power(kW): 96

Order Online Service Outlets

High Reliability: The light aluminum alloy beam has high bending, torsion and fatigue resistance. The unique single-layer hose reel can effectively improve the hose life and reduce the maintenance strength.
Precise Operation: The drill boom structure is newly optimized and upgraded to get larger extension stroke and shorter retracted length.
Stable Construction: The drilling system has anti-jamming, anti-idle-drilling and automatic withdraw functions, which can effectively improve the drilling efficiency and reduce the loss of drilling tools.
Safety Protection: The full cover structure, top anti-skid design, and air spring assisted opening of left and right doors provide convenience for maintenance. The enclosed cab with cooling and heating A/C ensures low dust and noise.
Intelligent Control System: The whole machine is equipped with a fully electronic control system based on CAN bus, which is easy and fast to operate.

XUD235B

Service Outlets Order Online

Parameters

PARAMETERS

Item Unit Parameter: Engine Brand / Cummins; Engine Model / B3.9CS4 130; Engine Rated power kW 96; Engine Emission standard / 欧III/国四 Euro Stage III/China Stage IV; Rock drill Brand / 蒙特贝/XCMG; Rock drill Model / HC95SA/XHD20; Rock drill Impact power kW 21/20; Drill boom Boom extension mm 1450; Drill boom Feed extension mm 1250; Feed beam Total length mm 5380/5990（选配 Optional）; Feed beam Drill steel length mm 3700/4310（选配）; Feed beam Single-pass drilling depth mm 3400/4000（选配）; Water system Rated flow m3/h 6; Water system Min. water inlet pressure bar 2; Air system Flow L/min 1150; Air system Pressure bar 10; Electrical system Voltage V 380; Electrical system Frequency Hz 50; Electrical system Cable length m 80; Chassis Gradeability ° 14; Chassis Traveling speed km/h 15; Dimensions Transport state mm 12611×2000×2750; Total operating weight t 22.5
