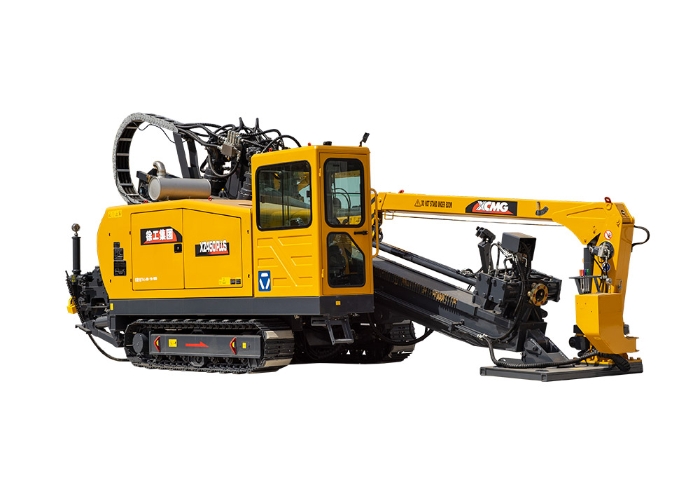

XZ450Plus

Horizontal Directional Drilling Rig

XZ450Plus

Engine(/): Cummins Rated power(kW): 194 Power head Max. thrust-pull force(kN): 900

Order Online Service Outlets

XZ450Plus

The small tonnage drilling rig is mainly used in the field of municipal pipe network construction.
The equipment adopts integrated design, has small size, and is flexible in construction and convenient for transportation.
The drilling rig can be equipped with a variety of functional components to meet diverse needs.

XZ450Plus

Service Outlets Order Online

Parameters

PARAMETERS

Item Unit Parameter: Engine / Cummins; Rated power kW 194; Power head Max. thrust-pull force kN 900; Power head Max. thrust-pull speed m/min 50; Power head Torque N·m 27000; Power head Max. rotation speed r/min 135; Mud pump Max. flow L/min 600; Mud pump Max. pressure MPa 8; Crane Lifting weight t /; Crane Lifting moment t•m /; Recommended drill pipe mm×m φ89×4.5/3; Max. entry angle ° 20; Max. back reaming diamete mm φ1000; Weight t 13; Outline dimensions mm 8800×2280×2640
