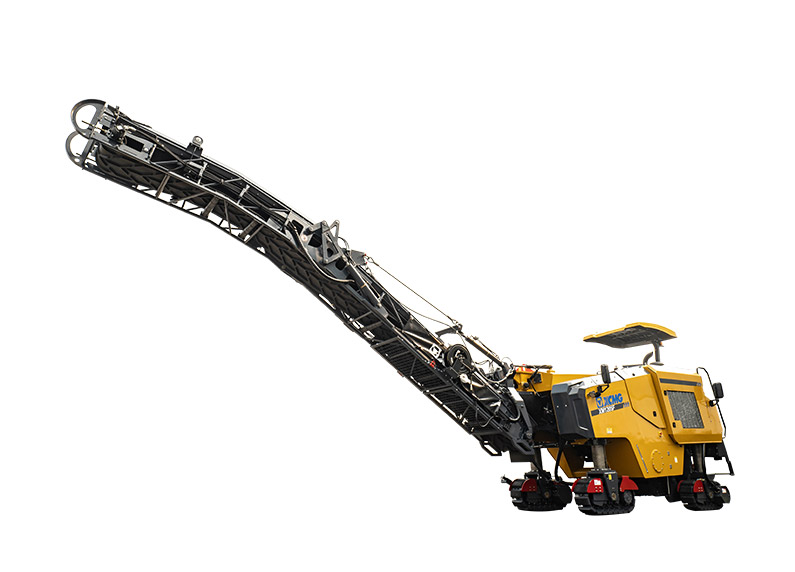

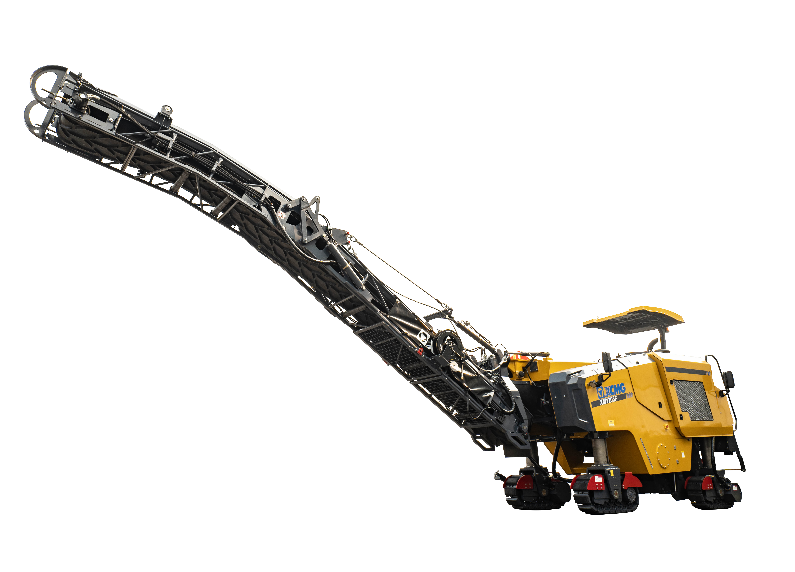

XM1205F

Medium Milling Machine
XM1205F
Engine(-): Shangchai Rated Power(kW): 192 Emission(-): EU Stage 4a/CN Stage Ⅲ
XM1205F

XM1205F milling machine is a kind of front-conveying medi-um-sized milling machine with high performance,which is mainlyused for excavation and renovation of asphalt concrete pave-ments of highways,urban roads,airports,freight yards,parkinglots,etc.It can efficiently remove road congestion,waves,meshpatterns,ruts,etc.;excavate the pavement pits and trenches;roughen the cement pavement and mill the surface faulting.

This machine adopts various advanced technologies of intelligentcontrol,limit load,water sprinkling intelligent control, engine hightemperature protection and construction data management etc.Itis a kind of pavement maintenance equipment with advancedtechnologies,high working efficiency,convenient operation andhigh reliability.

XM1205F
  • Parameters
  • Images Gallery
PARAMETERS
Item Unit Parameter
Engine - Shangchai
Rated Power kW 192
Emission - EU Stage 4a/CN Stage Ⅲ
Weight in transportation state kg 20000
Weight in work state kg 21500
Milling width mm 1200
Max.Milling Depth mm 300
Number of cutters - 100
Transport Dimensions / L x W x H mm 9950×2180×3000

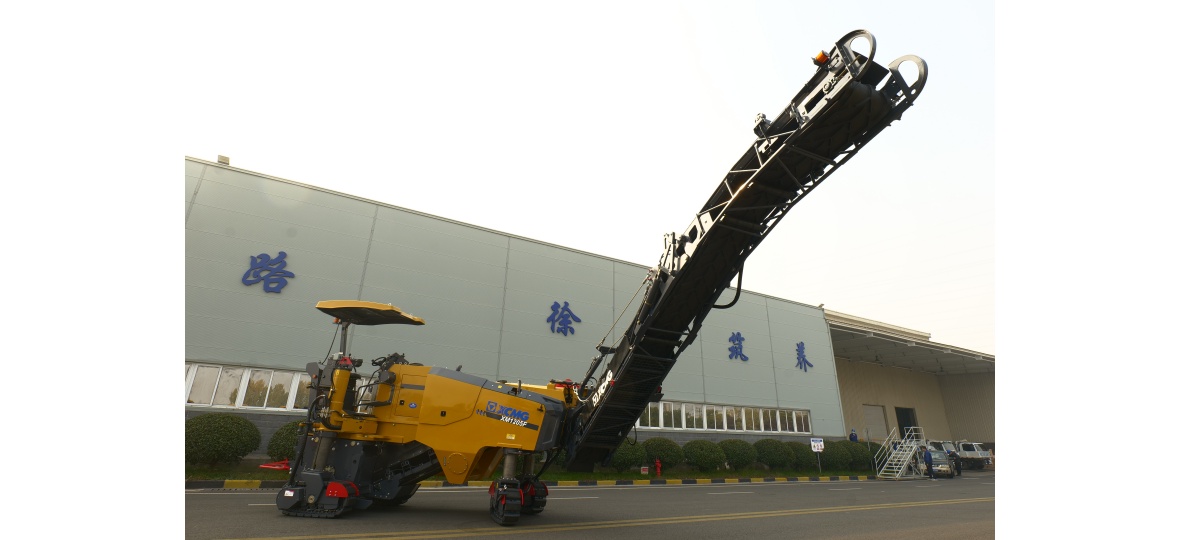

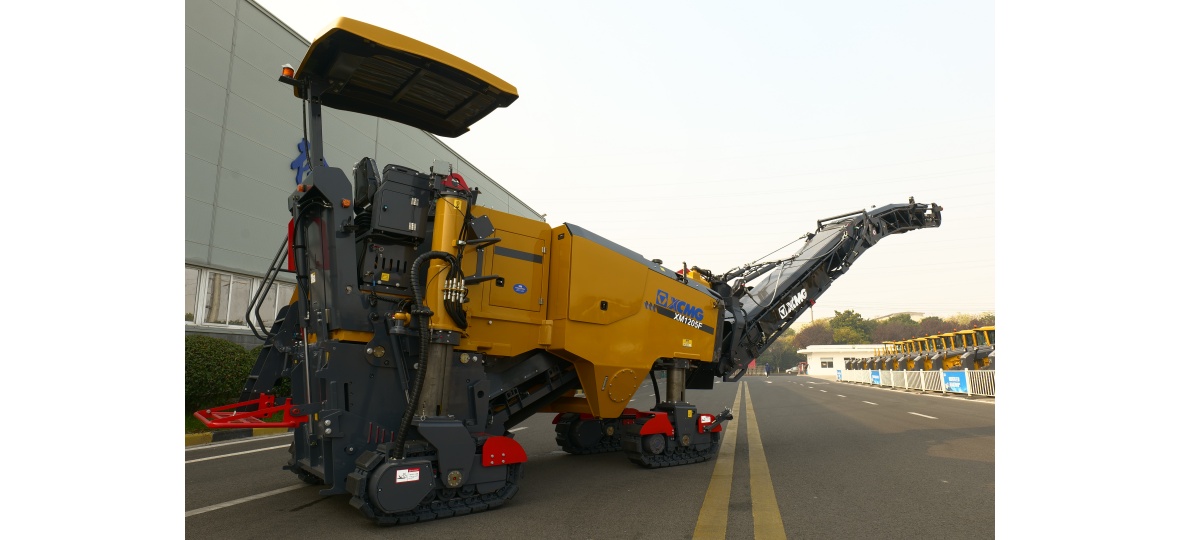

Images Gallery
