Milling Machine
Milling width(mm): 210 Milling depth(mm): 15 Space between tools(mm): 60

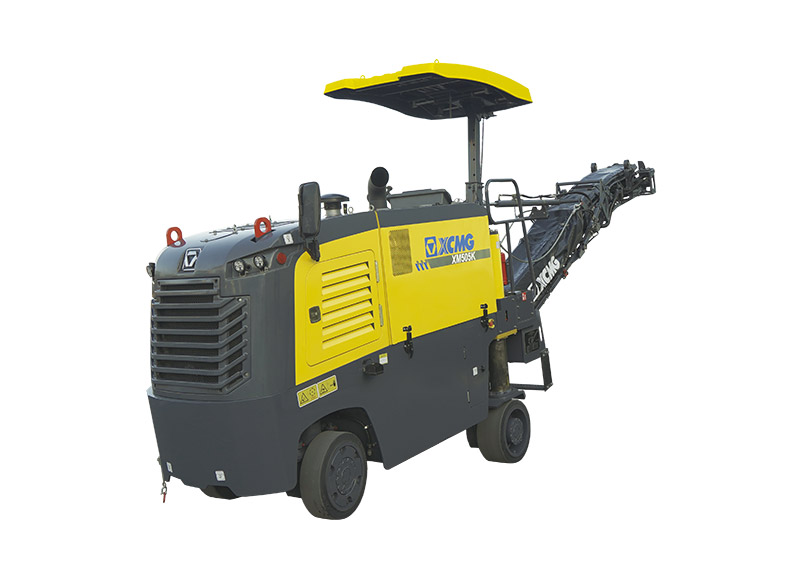

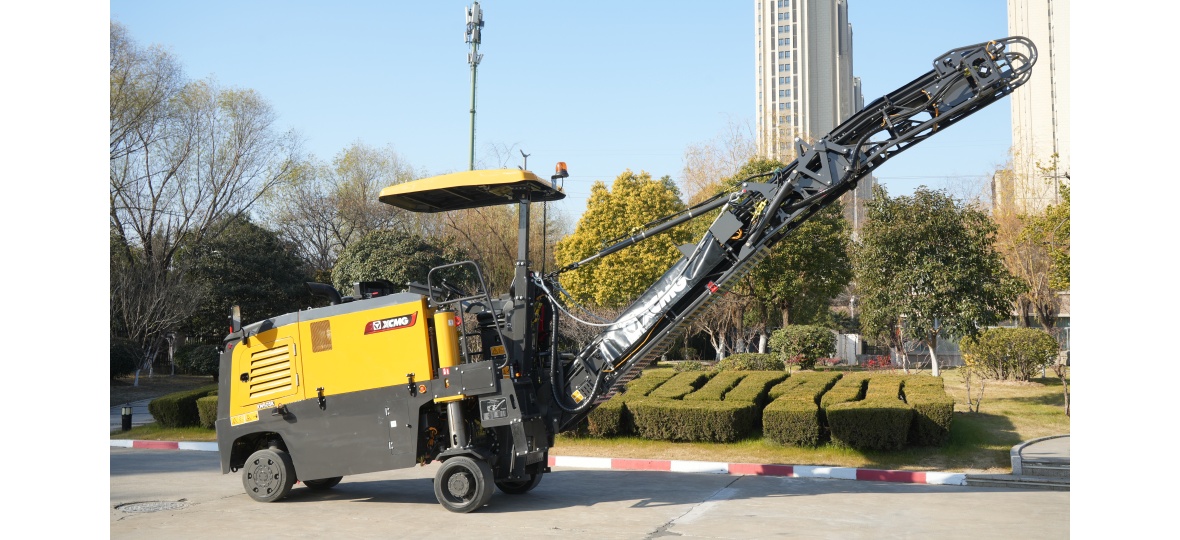

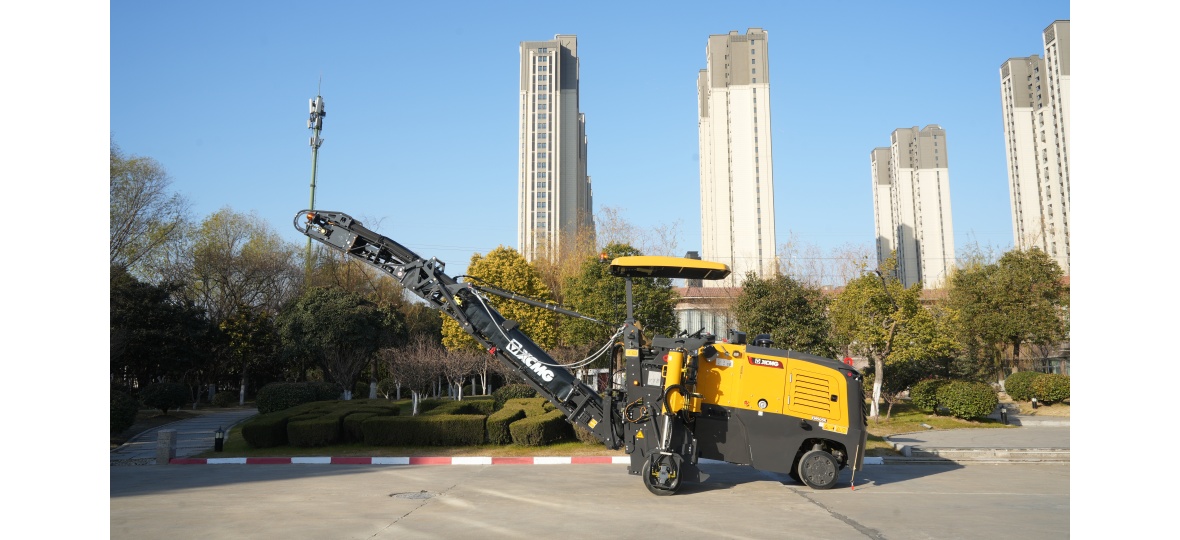

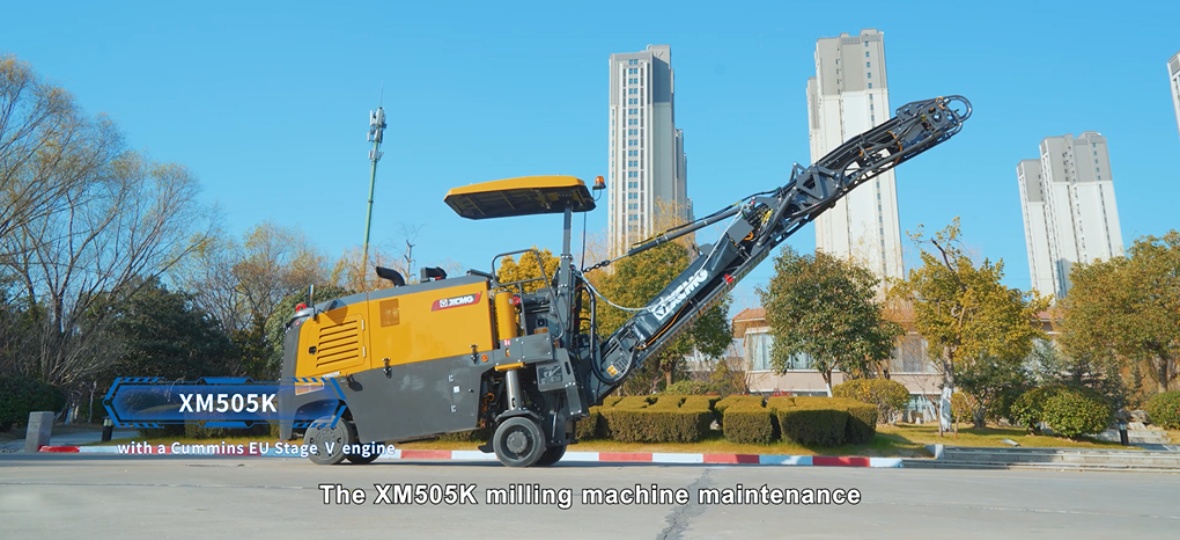

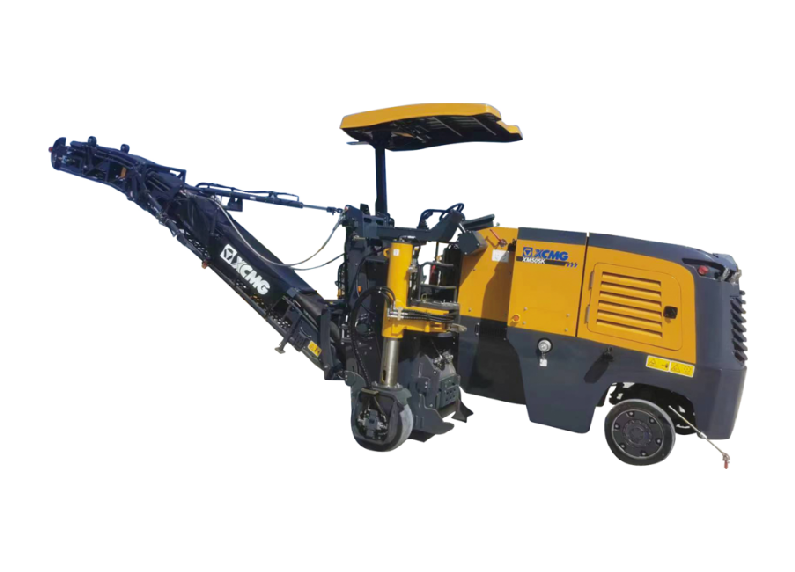

XM505K milling machine is a kind of asphalt pavement mainte-nance machinery,which is mainly used for the maintenance of mu-nicipal roads and as the auxiliary machinery for the construction oflarge milling machine.It can be used for small-scale excavationand renovation of asphalt concrete pavements of highways,urbanroads,airports,freight yards,parking lots,etc.It can efficientlyremove road congestion,waves,mesh patterns,ruts,etc.;rough-en the cement pavement and mill the surface faulting.It is capableof milling along the road sides and manhole covers.If the machineis equipped with a hydraulic hammer,it can be used for breakingthe pavement;it can be optionally fitted with wheels for rumblestrips to mill the rumble strips along the road sides.

  • Parameters
Item Unit Parameter
Milling width mm 210
Milling depth mm 15
Space between tools mm 60
Quantity of tools / 750
Rotor diameter including tool mm Cummins
Manufacturer / B4.5
Model / Water-cooling
Cooling mode / 4
Number of cylinders / 115/2200
Rated power kW/rpm 4.5
Displacement L 29.5
Full-load fuel consumption L/h 11.8
Comprehensive fuel consumption L/h EU Stage 5
Emission standard 24
Voltage V 230
Fuel tank L 600
Hydraulic oil tank L 0-46
Water tank L 70
Working speed m/min 0-12
Traveling speed km/h 220
Theoretic gradeability % 210
Ground clearance mm 559x254
Specification Front mm /
Specification Rear mm /
Width of discharging belt mm /
Width of aggregate belt mm /
Theoretic conveying capacity m³/h /
Weight in transportation state kg 9800
Weight in work state kg 5750
Swinging angle of conveying belt ° /
Conveying height mm /
Transportation dimension of main unit L×W×H /
No-load mass kg /
working mass kg /
Dimension of front track mm /
