GR2205T

5 Series Motor Grader

GR2205T

Engine model(-): QSB6.7 Rated power/speed(kW/rpm): 164/2200 Machine dimension(mm): 9230×2625×3432

Order Online Service Outlets

GR2205T

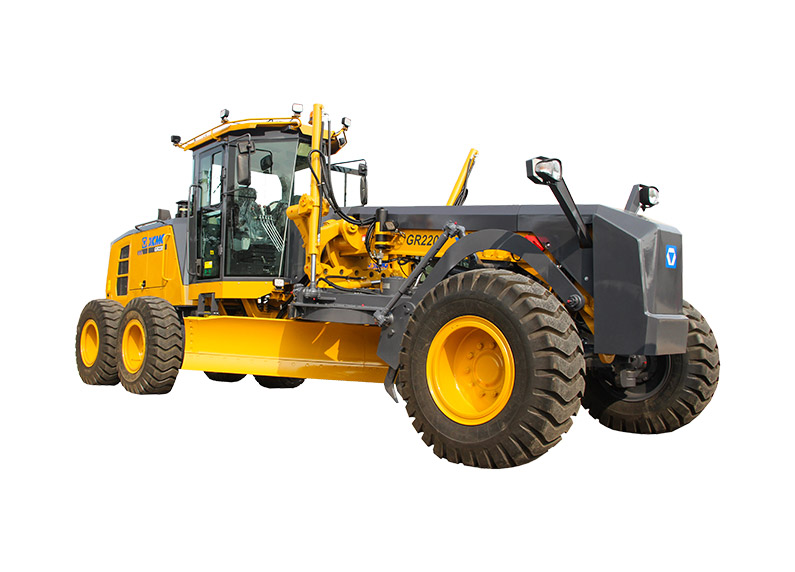

GR2205T motor grader is mainly used for groundleveling,ditching,slope scraping,bulldozing,scari-fication,snow removal for large areas such as high-way,airports,farmlands etc.The machine featurescompact structure and high reliability,is the indis-pensable construction machinery for national de-fense projects,urban and rural roads and other etc.building construction and water conservancy con-struction,farmland improvement,etc.

GR2205T

Service Outlets Order Online

Parameters
Images Gallery

PARAMETERS

Item Unit Parameter: Engine model - QSB6.7; Rated power/speed kW/rpm 164/2200; Machine dimension mm 9230×2625×3432; Machine weight kg 16500; Drive speed, forward km/h 5、9、12、20、25、45; Drive speed, reverse km/h 5、12、25; Traction force f=0.75 kN ≥85; Maximum gradeability % ≥25; Minimum turning radius m 7.6; Blade Length x Height mm 3965×610; Emission - EU Stage Ⅲ
