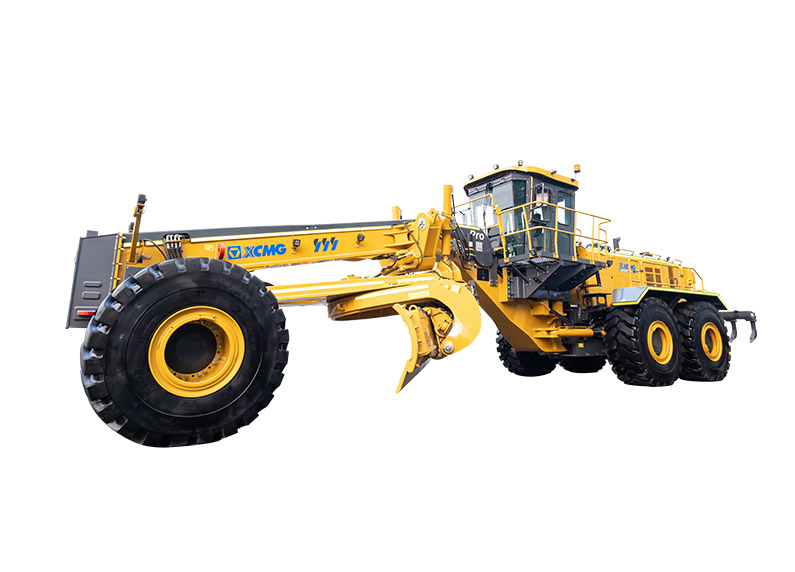

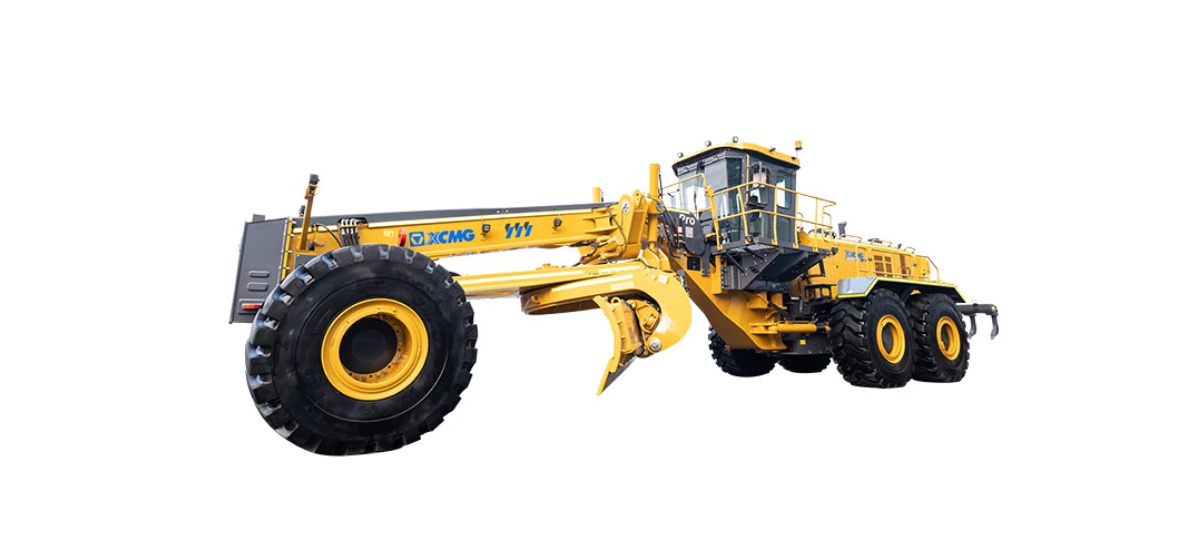

GR5505T Pro

Motor Grader
GR5505T Pro
Engine model: 2806D-E18TA Rated power/speed(kW/rpm): 447/2100 Machine dimension/standard(mm): 16430x4560x4810
GR5505T Pro

Motor grader is one of the key earthmoving machinery used for finishing and leveling of ground surface and stable layer at highways, airports andother massive jobsites. In recent years,with its constantly expanded application and enhanced productivity, motor grader has been favored also inbulldozing and laydown of roadbed mixture in the open pit mines, as much in reconditioning of original landforms, etc.With robust structural partsand sufficient horse power, GR5505T, Proheavy-duty motor grader is specifically designed for large open pit mines.

GR5505T Pro
  • Parameters
PARAMETERS
Item Unit Parameter
Engine model - 2806D-E18TA
Rated power/speed kW/rpm 447/2100
Machine dimension/standard mm 16430x4560x4810
Machine weight/standard kg 74000
Drive speed, forward km/h 4.6,5.9,8.7,11.7,17.7,25.1,32.2,42.7
Drive speed, reverse km/h 4.5,8.7,17.2,32.6
Traction force f=0.75 kN ≥390
Maximum gradeability % ≥30
Minimum turning radius m 12.5
Blade Length x Height mm 7300x1025
