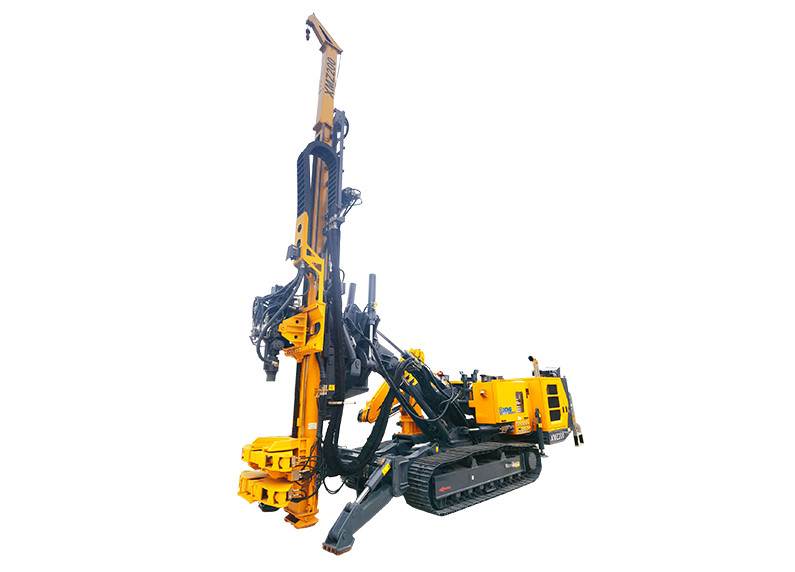

Multifunctional Drilling Rig
Rated power (kW): 194 Max. feed/pull-out force (kN): 110 Max. torque(multiple options)(N·m): 25000/8500

XMZ200 multifunctional drilling rig is mainly used in the construction such as pile anchor support for foundation and landslide, geological prospecting/pipe grouting of tunnel, tunnel rescue hole drilling, micro pile construction.
The wireless remote control is used to control the drilling and walking, and the operator can freely choose the operating position to ensure the best view.
Modular design of drill mast, clamp, rotary drive assembly, etc., and each module is rich in configuration to meet the special needs of different clients.

  • Parameters

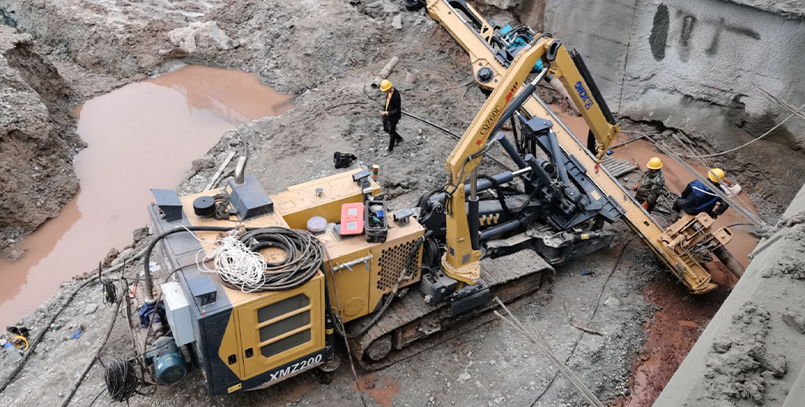

  • Cases
Item Unit Parameter
Rated power kW 194
Max. feed/pull-out force kN 110
Max. torque(multiple options) N·m 25000/8500
Max. rotate speed (multiple options) r/min 80/69
Engine model - QSB6.7
Emission standard - EU III
Feed stroke mm 4260
Clamping range (multiple options) mm Ф60-Ф415
Weight t 20-24
Transport dimensions mm 10781×2450×3293
