New Energy Roller
XS165EP
Operating Weight(kg): 16000 Static Linear Load(N/cm): 414 Vibration Frequency(Hz): 30/36
XS165EP

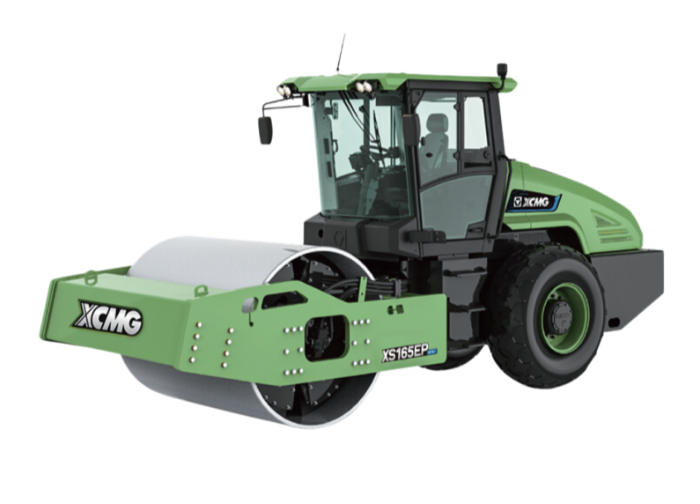

The XS165EP electric vibratory roller is a heavy-duty vibratory roller powered by a battery, capable of achieving zero carbon emissions. The product's travel and vibration systems are driven by motors, making the system more efficient. It is mainly applicable for compaction work on base layers, sub-base layers, and embankments of various materials, making it an ideal compaction equipment for high-grade highways, airports, ports, dams, and industrial construction sites. This road roller is designed for altitudes ≤4000m and operating ambient temperatures from -15 ℃ to +45 ℃.

XS165EP
  • Parameters
PARAMETERS
Item Unit Parameter
Operating Weight kg 16000
Static Linear Load N/cm 414
Vibration Frequency Hz 30/36
Amplitude mm 1.95/0.95
Centrifugal Force kN 305/215
Vibratory Drum Diameter × Width mm 1523×2130
Travel Speed km/h 0~11.0
Theoretical Gradeability % 45
Ground Clearance mm 452
Steering Angle ° ±35
Power Battery kWh 310
Voltage V 579.6
