RP705

Paver
RP705
Basic paving width(m): 2.5~5.0 Max. paving width(m): 6.0~7.5 Max. paving thickness(mm): 300
RP705

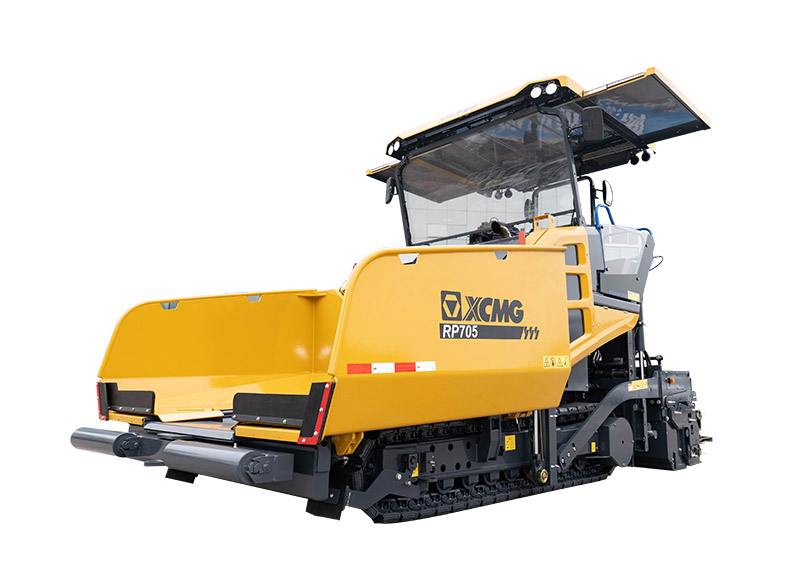

RP705 is a medium-sized full hydraulic tracked paver perfectly equipped with new intelligent control system and user-friendly HMI. The standard E500B four-support hydraulic screed has basic paving width ranging from 2.5m to 5.0m. This screed works with tampers and vibra- tors, hydraulic crown adjustment, hydraulic height adjustment (option). The machine is mainly used for paving asphalt concrete surface course of newly con- structed pavement, as well as road maintenance. The whole machine has compact structure, excellent visibility and high operating comfort, which is the ideal construc- tion equipment for municipal road construction and high-grade road maintenance.

RP705
  • Parameters
PARAMETERS
Item Unit Parameter
Basic paving width m 2.5~5.0
Max. paving width m 6.0~7.5
Max. paving thickness mm 300
Working speed m/min 24
Travel speed km/h 4
Theoretical productivity t/h 600
Hopper capacity t 13
Diesel engine power kW 119
Overall dimension mm 6030×2550×2930
Total weight t 19
Engine Manufacturer - Cummins
Engine Model - QSB4.5
Emission - EC Stage Ⅲ
