RP803

Paver
RP803
Basic paving width(m): 2.5~5.0 Max. paving width(m): 8 Max. paving thickness(mm): 400
RP803

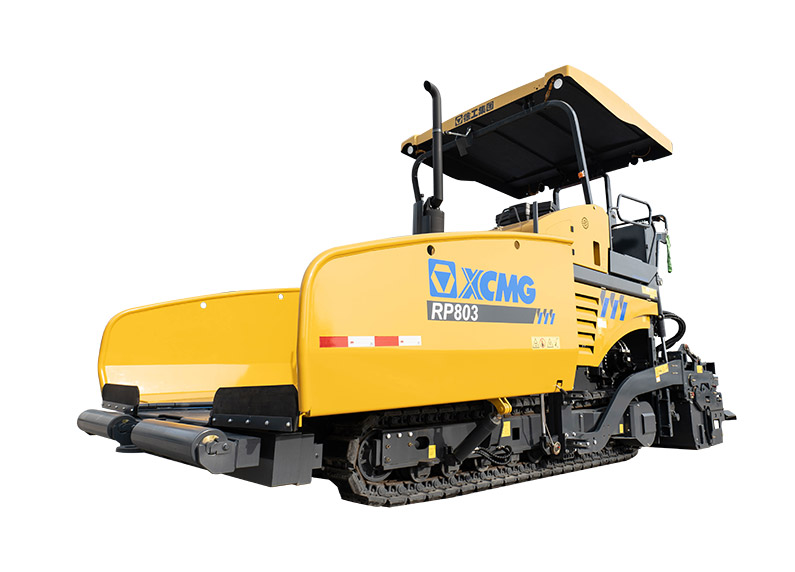

RP803 paver is a versatile medium-sized paving con- struction equipment. The machine is powered by Cum- mins engine with 142kW rated power; reinforced hydrau- lic extending screed provides stable work quality and high evenness. This machine applies the cutting-edge technologies, such as the new microcomputer control, ultrasonic material level sensing, electronic automatic leveling and fault self-diagnosis, to ensure the reliable and stable operation. The equipment is suitable for paving asphalt, cement stabilized soil and other materi- als, meeting the requirements of urban road mainte- nance, high-grade highway base and surface paving and other working conditions.

RP803
  • Parameters
PARAMETERS
Item Unit Parameter
Basic paving width m 2.5~5.0
Max. paving width m 8
Max. paving thickness mm 400
Working speed m/min 0~20
Travel speed km/h 0~3
Theoretical productivity t/h 800
Hopper capacity t 14
Diesel engine power kW 142
Overall dimension mm 7080x2500x4000
Total weight t 22.8
Engine Manufacturer - Cummins
Engine Model - QSB6.7
Emission - EC Stage Ⅲ
