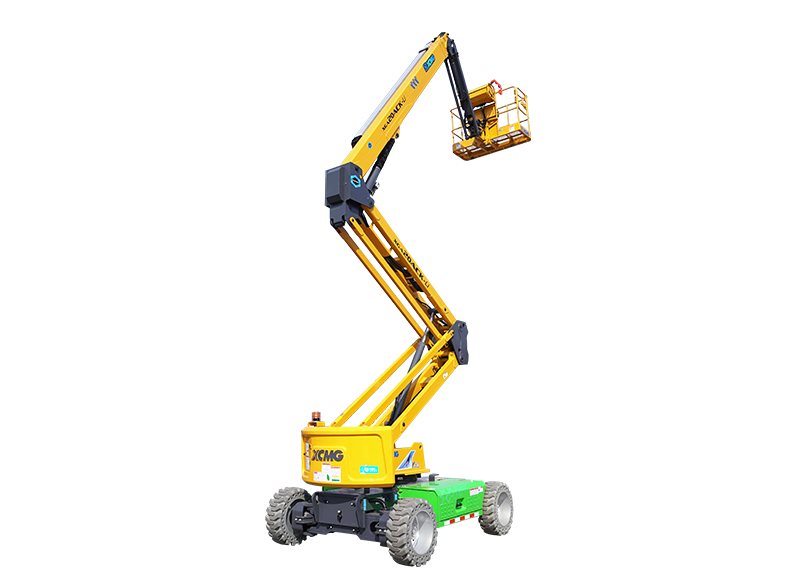

XGA20ACK

Electric Articulated Boom Lifts

XGA20ACK

Working Height(mm): 20600 Lift capacity(kg): 256(unlimited)/350(limited) Weight(kg): 9100

Order Online Service Outlets

XGA20ACK

XGA20ACK

Service Outlets Order Online

Parameters
Cases

PARAMETERS

Item Unit Parameter: Working Height mm 20600; Lift capacity kg 256(unlimited)/350(limited); Weight kg 9100; Overall dimension-Stowed mm 8490x2490x2380; Overall dimension-Transportation mm 8490x2270x2380; Dimension of working platform mm 1800x760x1100; Wheelbase mm 2500; Fly jib length mm 1850; Ground clearance mm 300; Max.Platform height m 18.6; Max.Working range m 11.98; Max.up and over clearance m 7.85; Max.Occupants - 2/3; Max.Working slope ° X-5°/ Y-5°; 1st Boom luffing range ° 0~72°; 2nd Boom luffing range ° 0~73°; Flying jib luffing range ° -65~70°; Turntable rotation ° 360°; Platform rotation ° 160°; Drive speed stowed 4.8; Drive speed Up or extended 0.6; Min.Turning radius inside/outside 5000; Turntable tailswing stowed 560; Max.Gradeability % 45%
