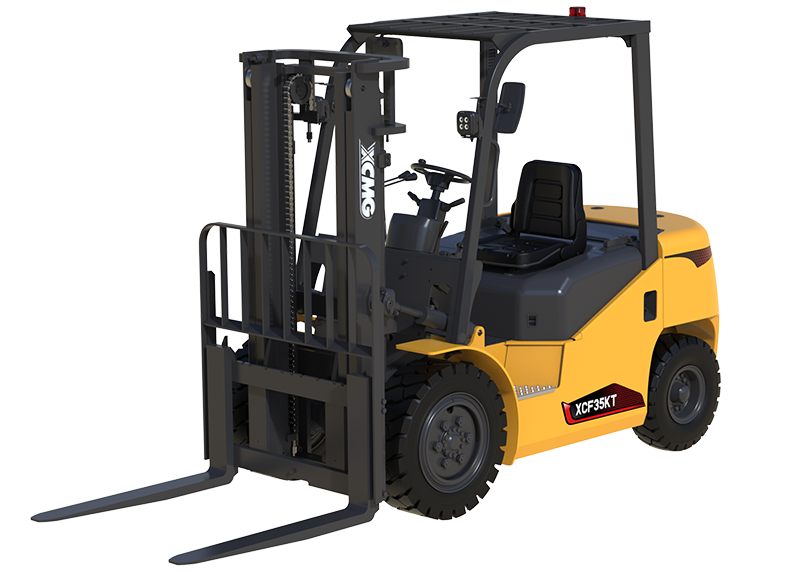

XCF 35KT

Counterbalanced forklift
XCF 35KT
Overall weight(kg): 4608 Rated capacity(kg): 3500 Maximum lifting height(mm): 4217
XCF 35KT

The XCMG XCF35KT adopts a newly optimized van-type frame, a mast structure with a wide field of vision, an integrated engine cover, 24° cone hydraulic sealing, a cast shock-absorbing steering axle, and a large-capacity aluminum radiator, making the whole forklift more reliable.

Thanks to the ergonomic space design, it has a smaller-sized steering wheel, larger legroom and boarding space, providing high comfort. The metal engine cover is internally equipped with heat insulation and sound insulation materials, resulting in low noise.

The integrated electrical control box and the electrical system with standard fault code display ensure good maintainability.

It can be equipped with nearly a hundred types of attachments such as side shift fork positioner, bale clamps, and roll prong attachments, fully meeting customers' differentiated needs. It is widely used in logistics areas such as ports, docks, freight yards, steel plants, and warehouses.


XCF 35KT
  • Parameters
PARAMETERS
Item Unit Parameter
Overall weight kg 4608
Rated capacity kg 3500
Maximum lifting height mm 4217
Maximum travelling speed (unloaded\loaded) km/h 18/20
Maximum lifting speed (unloaded\loaded) km/h 360/380
Maximum gradeability(loaded) - 19
Dimensions without fork - 2798/1225/2132
Wheel base mm 1750
Load center mm 500
Minimum turning radius - 2450
Type of mast Secondary standard type - /
Fork dimensions mm 1070/122/50
Fork adjustment range mm 1100/244
Optional - /
