Products

XHT155

Slipform Paver

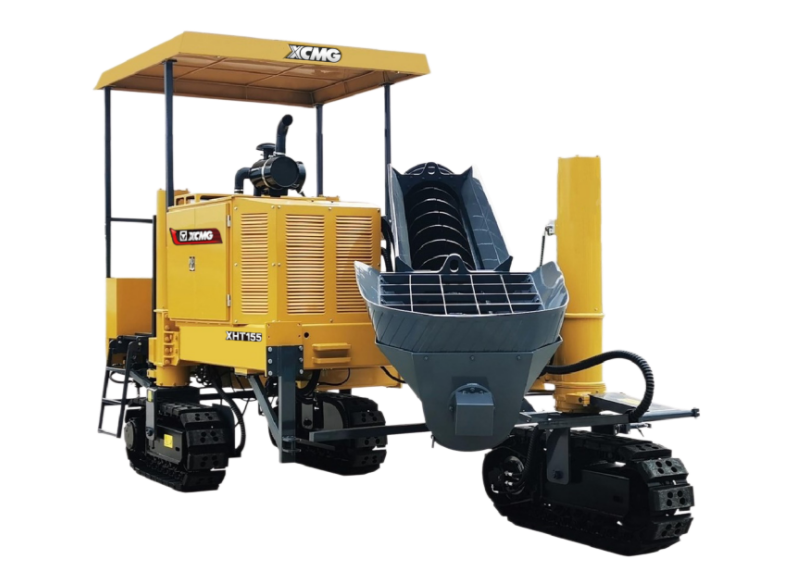

XHT155
Paving Width(mm): 1800 Max. Paving Thickness(mm): 1200 Paving Speed(m/min): 0~10.5
XHT155

XHT155 Spreading machines for slip form cement concrete is an independent developed special construction equipment for curbstone. To keep up with the high-speed development of domestic railway and highway construction, it improves substantially the construction speed and quality of cement concrete structure for all types of curbstone under various working conditions.This machine model features high power reserve, full electronic control, full hydraulic drive, three-crawler propelling as well as automatic steering and automatic leveling control system; It is able to complete whole working processes from conveying, tamping, paving, extrusion forming to screeding.

XHT155
  • Parameters
PARAMETERS
Item Unit Parameter
Paving Width mm 1800
Max. Paving Thickness mm 1200
Paving Speed m/min 0~10.5
Engine - Weichai
Rated Power kW/r/min 73.5/2,300
Transport Weight kg 10000
Transport Dims. mm 5,400 x 2,150 x 2,700
