Products

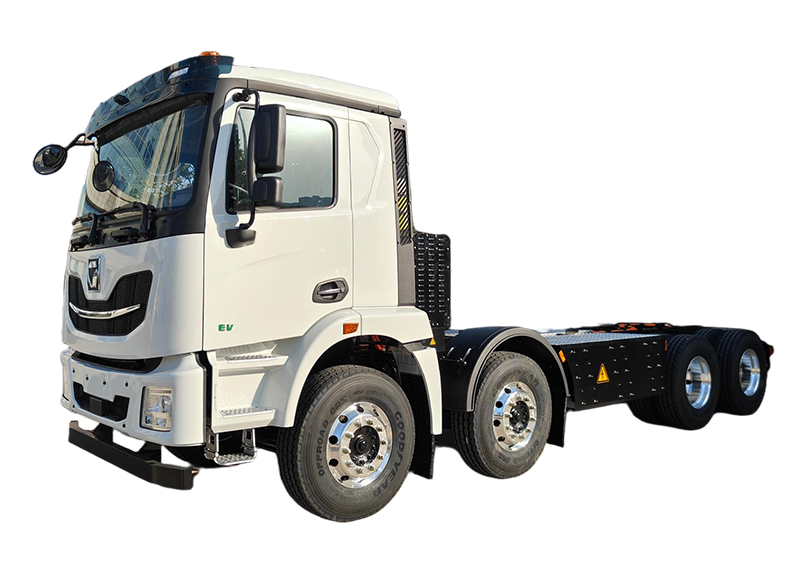

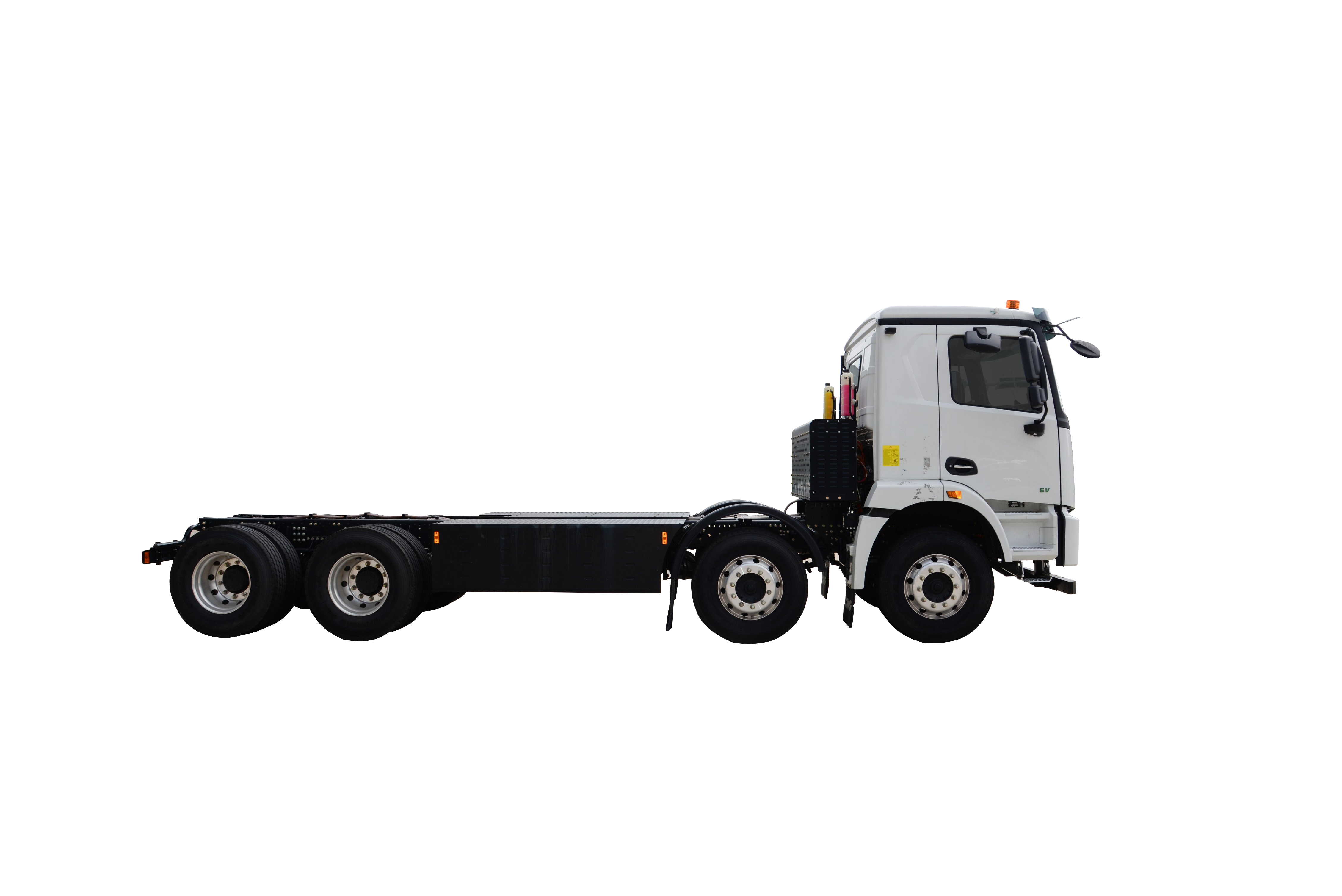

XGA3310BEVWEDX

Tractor
XGA3310BEVWEDX
Drive Type: Kerb Mass(kg): GVW(kg): 32000
XGA3310BEVWEDX

This product is equipped with a high-power 342 kWh battery. Unlike traditional driving systems used in ordinary new energy electric vehicles, it innovatively adopts an electric drive axle technology that directly converts electrical energy into driving force, reducing intermediate energy loss and significantly improving transmission efficiency. The integrated design minimizes the number of components in traditional transmission systems, lowering maintenance costs while enhancing overall reliability. The electric drive axle enables precise torque distribution and control, providing the vehicle with stronger driving capability and adaptability under complex working conditions.

Additionally, this product incorporates a high-voltage isolation design for the upper assembly—a higher-cost yet innovative technology that delivers significant safety improvements. By isolating high voltage, it effectively prevents electrical interference and potential risks between the upper equipment and the high-voltage system, ensuring operational safety.

XGA3310BEVWEDX
PARAMETERS
ParameterValue
Curb Weight11100 kg
GVW32000 kg
Wheelbase1700 + 3150 + 1350 mm
Minimum Ground Clearance235mm
Minimum Turning Radius21m
Maximum Speed90km/h
Maximum Climbing Gradient35%
