XFT1860E

Movable Screening Station
XFT1860E
Curb weight standard configuration(kg): 44300 Disposal capacity(t/h): 150-600 Max. Grade ability(°): 8
XFT1860E

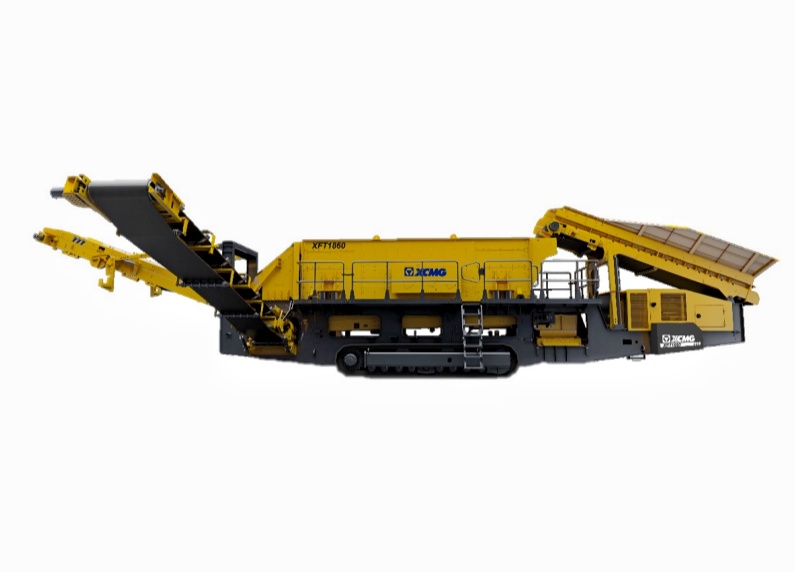

XFT1860E movable screening station is integrated with stock-feeding, screening and conveying functions. The whole machine can bring outstanding user experience by virtue of professional design, lean manufacturing, ultrahigh reliability and intelligent control system. Highly efficient three-shaft elliptical screener has a strong screening capacity and precise grading performance, is very suitable for screening medium and fine aggregates; it is diesel driven and electrically powered, and the hybrid power configuration enables it to adapt to various working conditions; intelligent fault detection can real-time monitor and troubleshoot fault in a accurate and quick manner.

XFT1860E
  • Parameters
PARAMETERS
Item Unit Parameter
Curb weight standard configuration kg 44300
Disposal capacity t/h 150-600
Max. Grade ability ° 8
Max. Speed km/h 0.6/1.2 (two gears)
Working state dimension / LxWxH mm 19800 x 16400 x 4650
Transportation state dimension / LxWxH mm 19700 x 3490 x 3720
Diesel tank capacity L /
Hydraulic oil volume L /
Screening machine layers - 3
