XGF1214

Impact Crusher

XGF1214

Hardness of crushed materials(MPa): ≤150 Max. feedstock size(mm): 300 Feed inlet dimensions(mm): 1450 × 800

Order Online Service Outlets

XGF1214

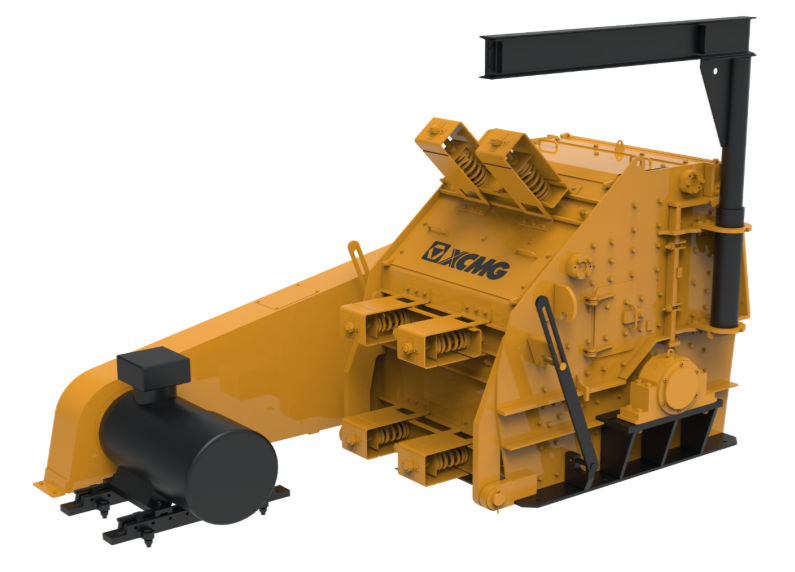

XGF1214 impact crushing station is independently developed by XCMG based on of years of R&D experience and can be used to break natural stones with medium and soft hardness and recycle construction waste. It is characterized by stability, flexibility, efficiency and intelligence.

XGF1214

Service Outlets Order Online

Parameters

PARAMETERS

Item Unit Parameter: Hardness of crushed materials MPa ≤150; Max. feedstock size mm 300; Feed inlet dimensions mm 1450 × 800; Range of discharge opening mm 0~40(70%-85%); Productivity t/h 145~350; Driving type - Motor + narrow V belt; Number of narrow V-belts - 10; Motor power kW 185~250; Overall weight t 19; Overall dimensions mm 4500 × 2410 × 2350
