XLZ2103S

Stabilizer Cold Recycler
XLZ2103S
Milling width(mm): 2100 Miling depth(mm): 0-400 Space between tools(mm): 18
XLZ2103S

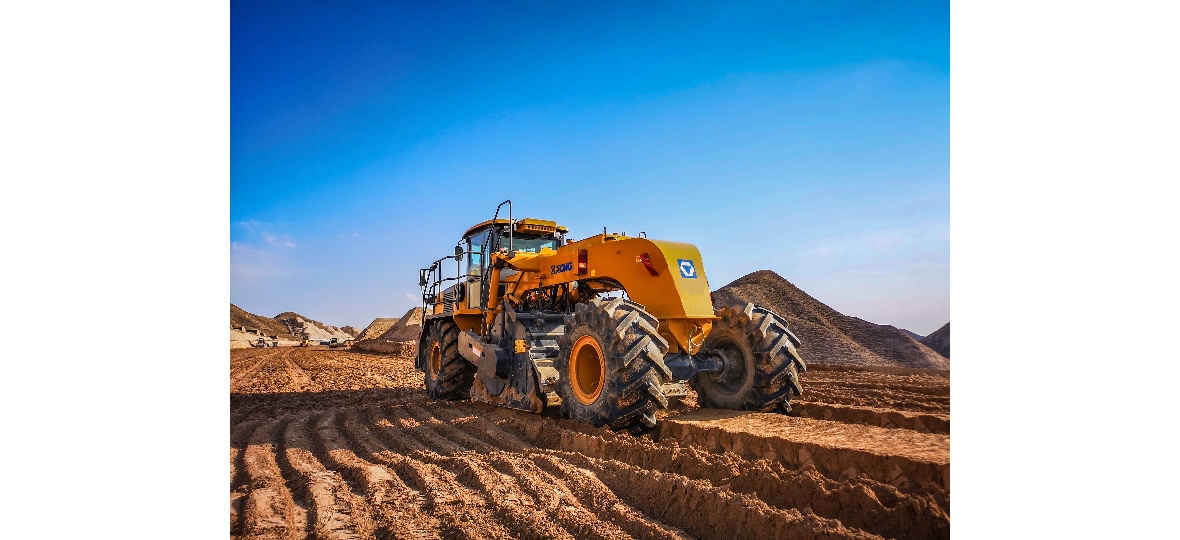

XLZ2103S cold recycler is a kind of multi-functional pavement maintenance equipment, which is mainly used forthe in-place mixing of stabilized soil of base course and subgrade course in the highways, urban roads, squares, wharfs and parking lots etc. It is suitable for mixing the filler, cement and lime etc. with the natural soil to improve the mechanical and physical properties of the soil; for cold-recycling the base course in the upgrading and modification engineering of the existing asphalt pavement ofrural roads; and for milling the damaged asphalt pavementwhich is less than 150mm thick.

XLZ2103S
  • Parameters
PARAMETERS
Item Unit Parameter
Milling width mm 2100
Miling depth mm 0-400
Space between tools mm 18
Quantity of tools Piece 144
Diameter of milling wheel mm 1380
Manufacturer / WEICHAI POWER CO.. LTD
Cooling mode / Water-cooling + air-air inter-cooling
Model / WP12G480E310
Number of cylinders / 6
Rated power kW 353
Engine speed rpm 1900
Fuel consumption: Full load kg/h 70
Working speed km/h 0-3.2
Traveling speed km/h 0-23
Theoretical gradeability(working gear) % 20
Ground clearance mm 350
Front axle load kg 15000
Rear axle load kg 6000
Shipping weight kg 21000
Working weight kg 21000
Diesel tank L 650
Hydraulic oil tank L 300
Water tank L 200
Electric system V 24
Machine(LxWxH) mm 9230×3160×3450
