XLZ2305C

Stabilizer Cold Recycler
XLZ2305C
Milling width(mm): 2300 Miling depth(mm): 0-330 Space between tools(mm): 25
XLZ2305C

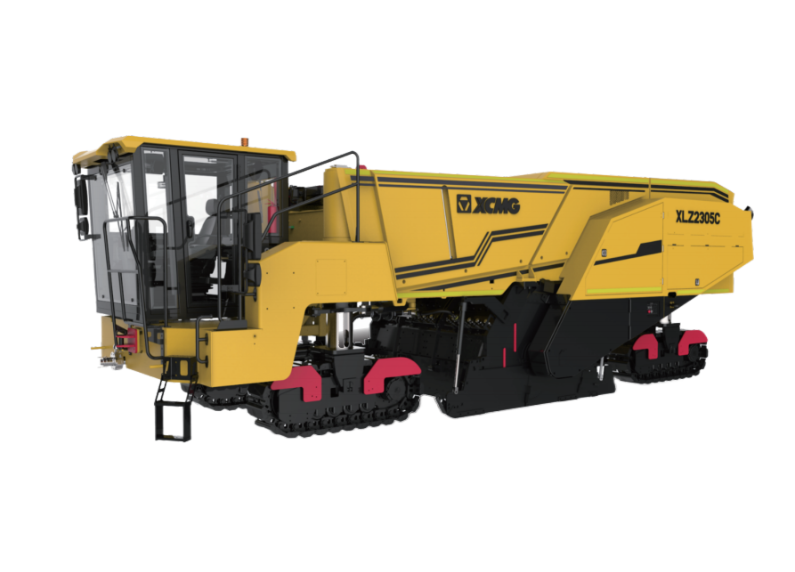

XLZ2305C cement road recycler is a multi-functional road maintenance machine, mainly used for in-situ crushing and recycling of old cement pavement of C30 strength or below for highway, town road, country road, airport, cargo yard, parking lot, etc. It can also be efficiently used for the recycling of cobblestone water-stabilized layer, water-stabilized sand water-stabilized layer and other hard water-stabilized layer. After replacing the special milling drum, it can also be used for high grade cement and asphalt pavement fine cutting.

XLZ2305C
  • Parameters
PARAMETERS
Item Unit Parameter
Milling width mm 2300
Miling depth mm 0-330
Space between tools mm 25
Quantity of tools Piece 132
Diameter of milling wheel mm 1220
Manufacturer / CAT
Cooling mode / Water-cooling
Model / 2806C
Number of cylinders / 6
Rated power kW 571
Engine speed rpm 2100
Fuel consumption: Full load kg/h /
Working speed km/h /
Traveling speed km/h /
Theoretical gradeability(working gear) % 70
Ground clearance mm 500
Front axle load kg /
Rear axle load kg /
Shipping weight kg /
Working weight kg /
Diesel tank L 1400
Hydraulic oil tank L 350
Water tank L 6000
Electric system V 24
Machine(LxWxH) mm 9800 x 3000 x 3100
