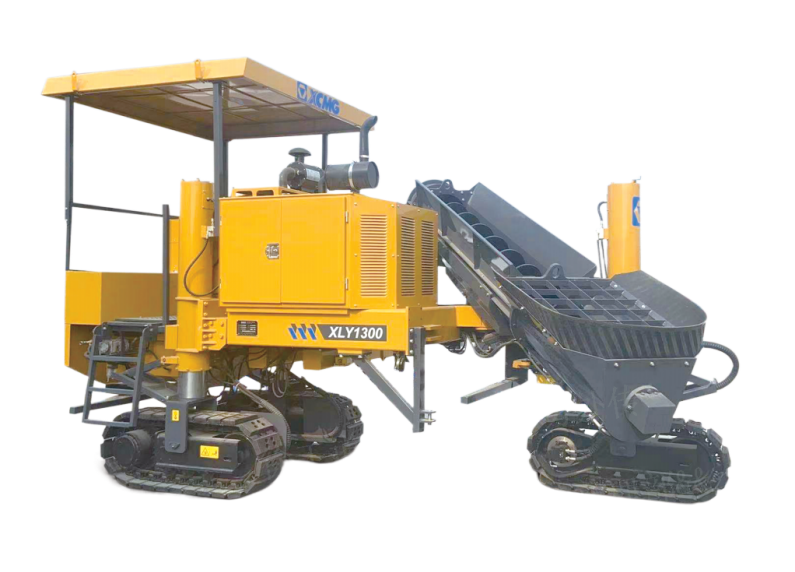

XLY1300

Slipform Paver

XLY1300

Standard paving width(mm): / Maximum paving width(mm): 2500 Paving thickness(mm): /

Order Online Service Outlets

XLY1300 Spreading machines for slip form cement concrete is an independent developed special construction equipment for curbstone. To keep up with the high-speed development of domestic railway and highway construction, it improves substantially the construction speed and quality of cement concrete structure for all types of curbstone under various working conditions.

This machine model features high power reserve, full electronic control, full hydraulic drive, three-crawler propelling as well as automatic steering and automatic leveling control system; It is able to complete whole working processes from conveying, tamping, paving, extrusion forming to screeding.

XLY1300

Service Outlets Order Online

Parameters

PARAMETERS

Item Unit Parameter: Standard paving width mm /; Maximum paving width mm 2500; Paving thickness mm /; Paving speed m/min 0～ 10.5; Gradeability % ≥20; Vibration frequency Hz /; Engine model - Weichai WP4.1G (optional Yanmar 4TNV98T); Rating power kW 73.5(Optional 63.9); Rating rotate speed r/min 2300 (Optiona 2500); Screw rotate speed r/min /; Overall weight t 9; Transportation dimensions mm 540×230×230
