XCT35_SR

Truck Crane
XCT35_SR
Max. load capacity(t): 35 Telescopic boom(m): 44 Number of axles: 3
Order Online Service Outlets
XCT35_SR

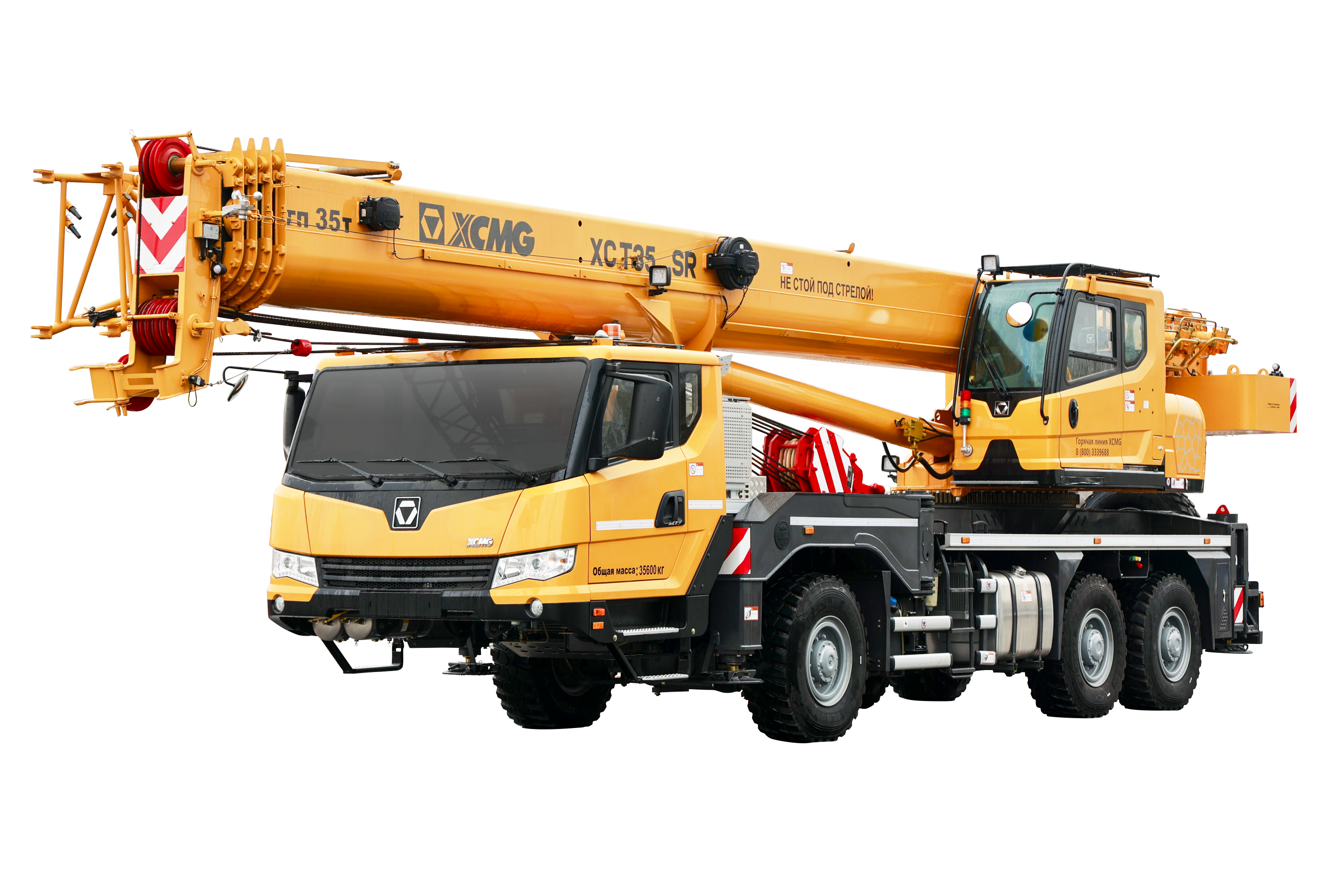

XCT35_SR is a 3-axle 35-ton truck crane with high adaptability to the job site and a wide range of acceptable operating conditions.

It features a 44-meter, 5-section main boom, an 8.3-meter fixed boom, a fixed 5.5-ton counterweight, a V-shaped diesel engine paired with a 9-speed gearbox, 3-axle type K outriggers, and all-wheel drive.


XCT35_SR
Service Outlets Order Online
  • Parameters
  • Cases
PARAMETERS
Item Unit Parameter
Max. load capacity t 35
Telescopic boom m 44
Number of axles - 3
Max. hoist height m 51.2
Max.load moment kN.m 1240
Drive engine model - SC9DF340Q5
Drive engine power kw 251
Drive/Steering - 6×2
Driving speed km/h 80
Dead Weight in Travel State kg 35600
Dimensions mm 13480×2550×3650
Emission standard - Euro V
