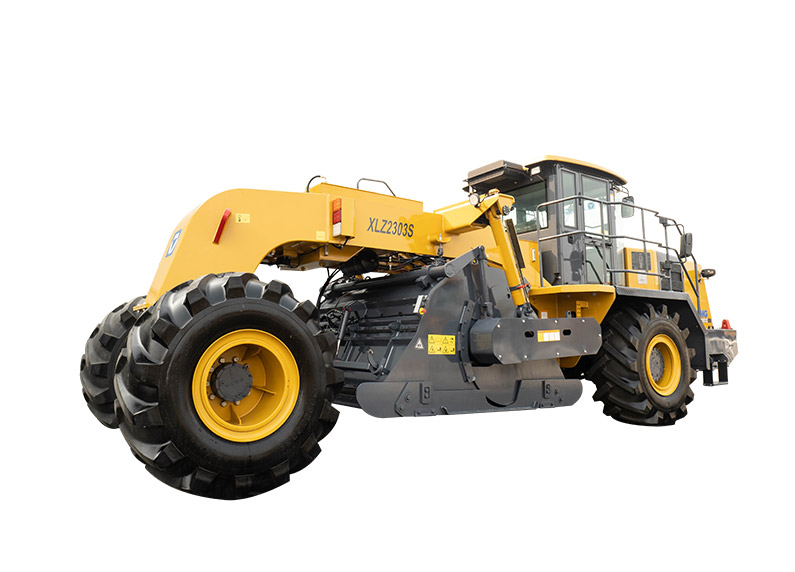

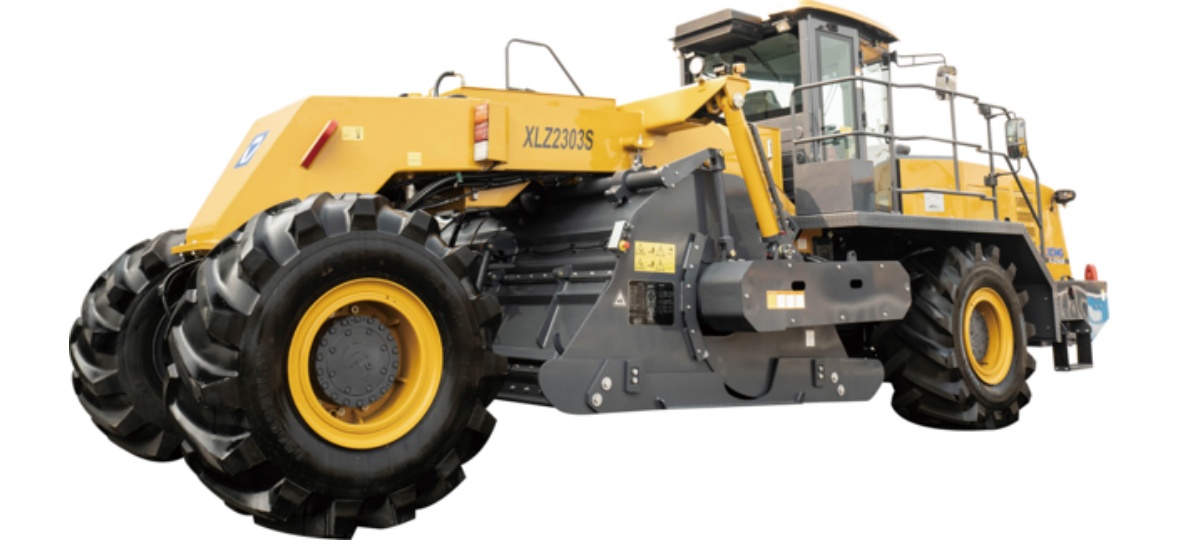

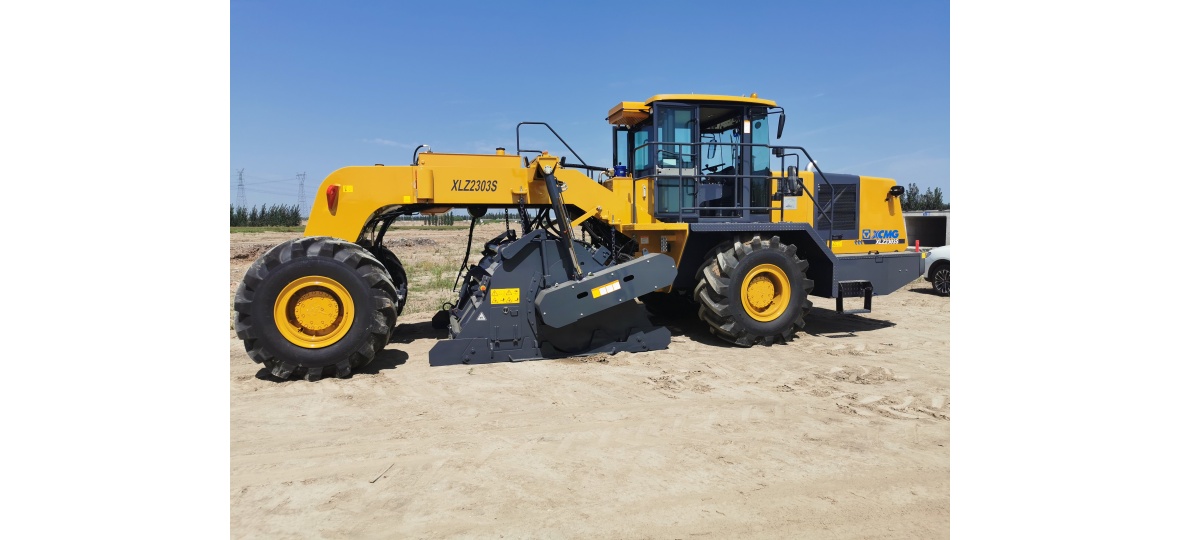

XLZ2303S

Hydraulic Cold Recycler

XLZ2303S

Milling width(mm): 2300 Miling depth(mm): 0-400 Space between tools(mm): 18

Order Online Service Outlets

XLZ2303S

XLZ2303S cold recycler is a kind of multi-functional pavement maintenance equipment, which Is mainly used for the in-place mixing of stabilized soil of base course andsubgrade course in the highways, urban roads, squares, wharfls and parking lots etc.It is suitable for mixing the filler, cement and lime etc.with the natural soil to improve the mechanical and physical properties of the soil; forcold-recycling the base course in the upgrading and mod-ification engineering of the existing asphalt pavement of rural roads; and for milling the damaged asphalt pavementwhich is less than 150mm thick.

XLZ2303S

Service Outlets Order Online

Parameters
Images Gallery

PARAMETERS

Item Unit Parameter: Milling width mm 2300; Miling depth mm 0-400; Space between tools mm 18; Quantity of tools Piece 162; Diameter of milling wheel mm 1380; Manufacturer / WEICHAI POWER CO., LTD.; Cooling mode / Water-cooling + air-air inter-cooling; Model / WP13G530E310; Number of cylinders / 6; Rated power kW 390; Engine speed rpm 2100; Fuel consumption: Full load kg/h 78; Working speed km/h 0-3.2/4(with single-drive as an option); Traveling speed km/h 0-22.8/29(with single-drive as an option); Theoretical gradeability（working gear） % 20; Ground clearance mm 350; Front axle load kg 16000/15000(with single-drive as an option); Rear axle load kg 10500/7500(with single-drive as an option); Shipping weight kg 26500/22500(with single-drive as an option); Working weight kg 26500/22500(with single-drive as an option); Diesel tank L 650; Hydraulic oil tank L 300; Water tank L 200; Electric system V 24; Machine（LxWxH） mm 9230x3260×3450
