GR2205AT

5 Series Motor Grader
GR2205AT
Engine model(-): SC9DK220G3 Rated power/speed(kW/rpm): 164/2200 Machine dimension(mm): 9343 x 2465 x 3432
Order Online Service Outlets
GR2205AT

GR2205AT motor grader is mainly used for ground leveling, ditching, slope scraping, bulldozing, scarification, snow removal for large areas such as high-way, airports, farmlands etc. The machine features compact structure and high reliability, is the indispensable construction machinery for national defense projects, urban and rural roads and other building construction and water conservancy construction, farmland improvement, etc.

GR2205AT
Service Outlets Order Online
  • Parameters
  • Images Gallery
PARAMETERS
Item Unit Parameter
Engine model - SC9DK220G3
Rated power/speed kW/rpm 164/2200
Machine dimension mm 9343 x 2465 x 3432
Machine weight kg 16500
Drive speed, forward km/h 5、9、12、20、25、45
Drive speed, reverse km/h 5、12、25
Traction force f=0.75 kN ≥111
Maximum gradeability % ≥25
Minimum turning radius m 7.6
Blade Length x Height mm 3965×610
Emission - EU Stage Ⅲ

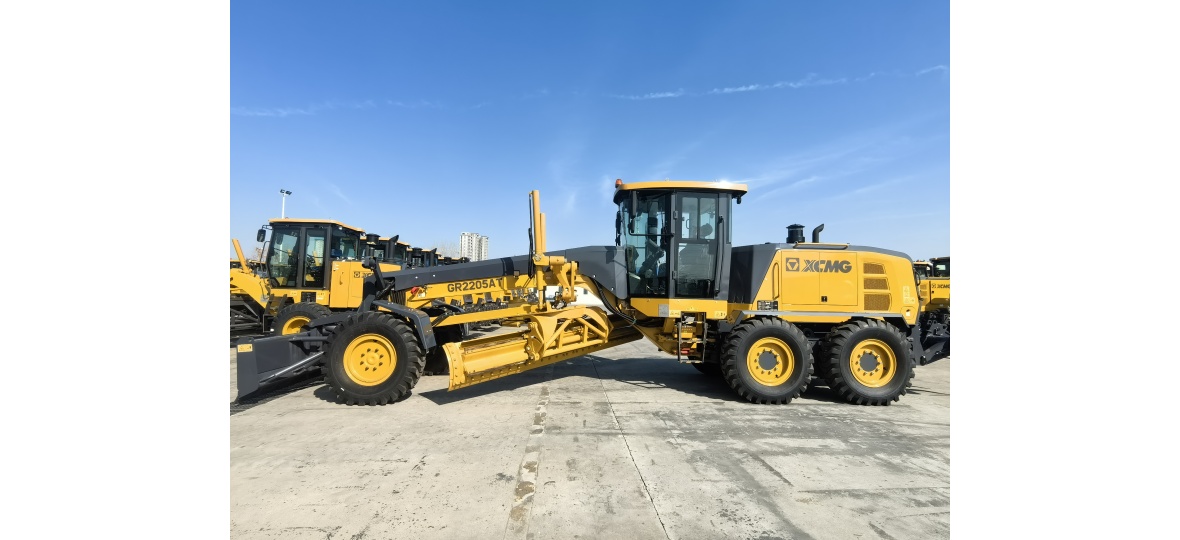

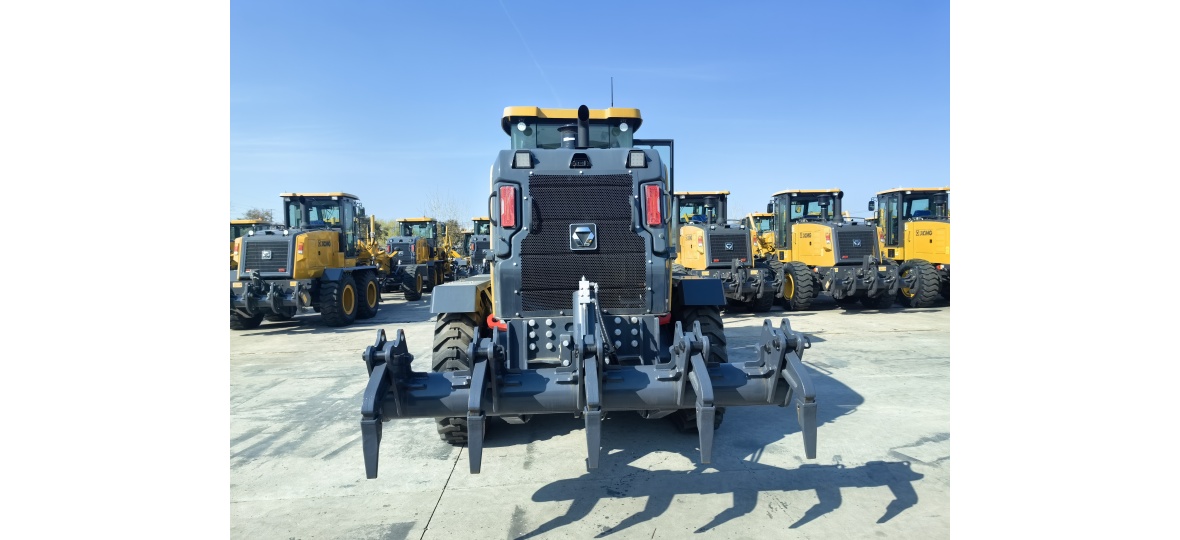

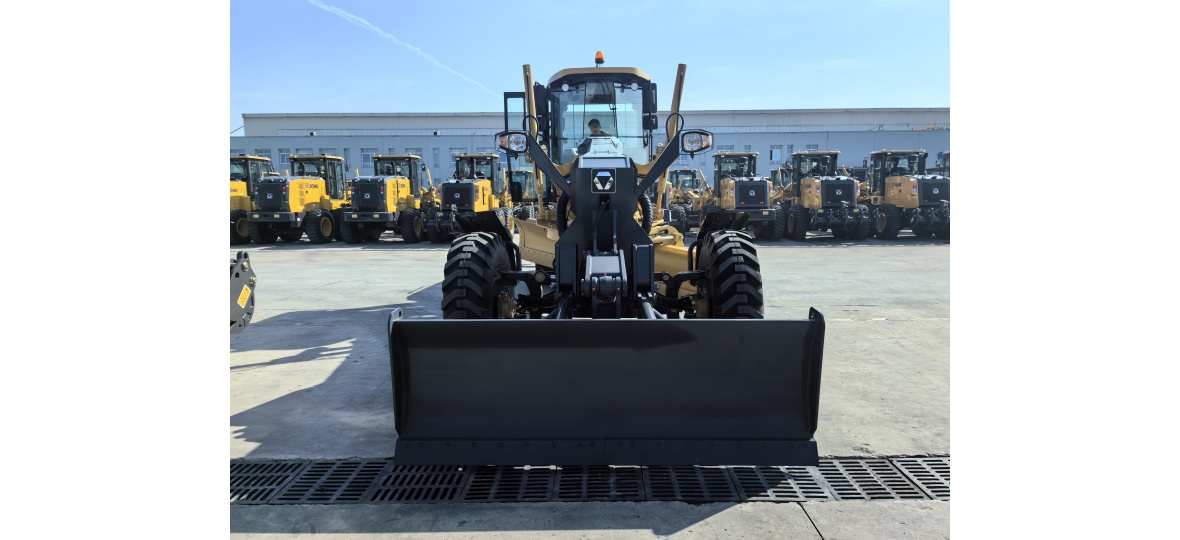

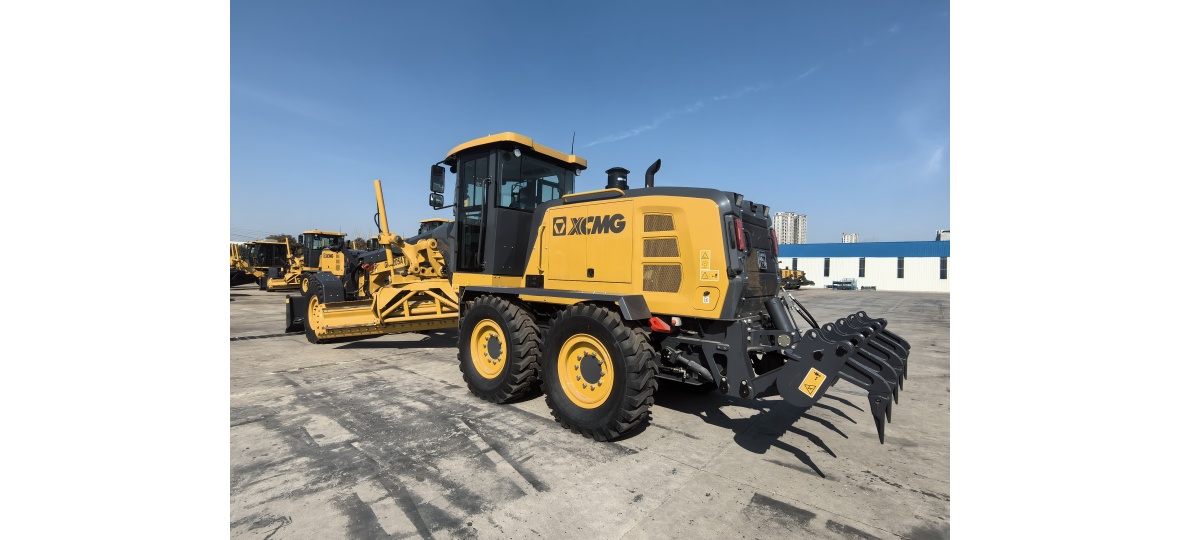

Images Gallery
Images Video
