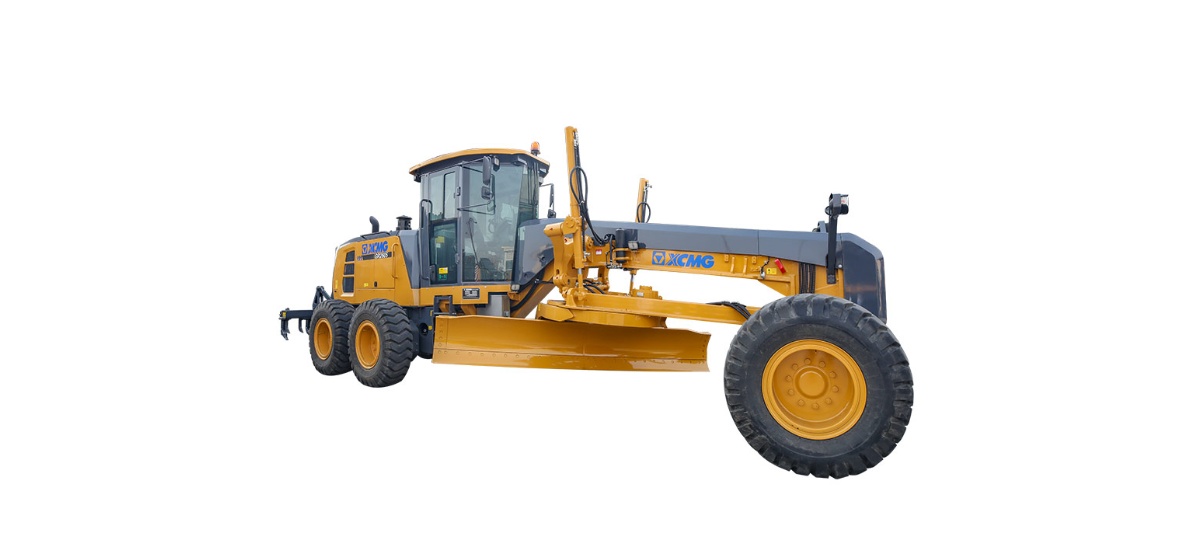

GR2605T Pro

5 Series Motor Grader
GR2605T Pro
Engine model(-): QSL8.9 Rated power/speed(kW/rpm): 194/2200 Machine dimension(mm): 9448×2625×3500
GR2605T Pro

As major machine for shaping and leveling operation in earthwork engineering, motor grader is widely used for large ground (such as road and airport) and leveling operation of stable layer. With the constant expansion of its functions and development of its high-efficiency over the years, motor grader is applied to bulldozing and spreading of open-pit and roadbed mixture as well trimming of original landform. Besides, it can be applied to snow removing in cold region. Featuring 260HP power, strong strength of machine components and sufficient driving force, GR2605T Pro is a heavy-duty motor grader research and developed especially for high-load working condition.

GR2605T Pro
  • Parameters
  • Images Gallery
PARAMETERS
Item Unit Parameter
Engine model - QSL8.9
Rated power/speed kW/rpm 194/2200
Machine dimension mm 9448×2625×3500
Machine weight kg 19000
Drive speed, forward km/h 5、9、14、22、34、48
Drive speed, reverse km/h 6、15、35
Traction force f=0.75 kN ≥99
Maximum gradeability % ≥25
Minimum turning radius m 7.8
Blade Length x Height mm 3660×610
Emission - EU Stage Ⅲ
