XLS1203

Asphalt Distributor
XLS1203
Curb weight(kg): 11200 Overall dimension(mm): 8900×2540×3090 Volume of asphalt tank(m³): 10.7
XLS1203

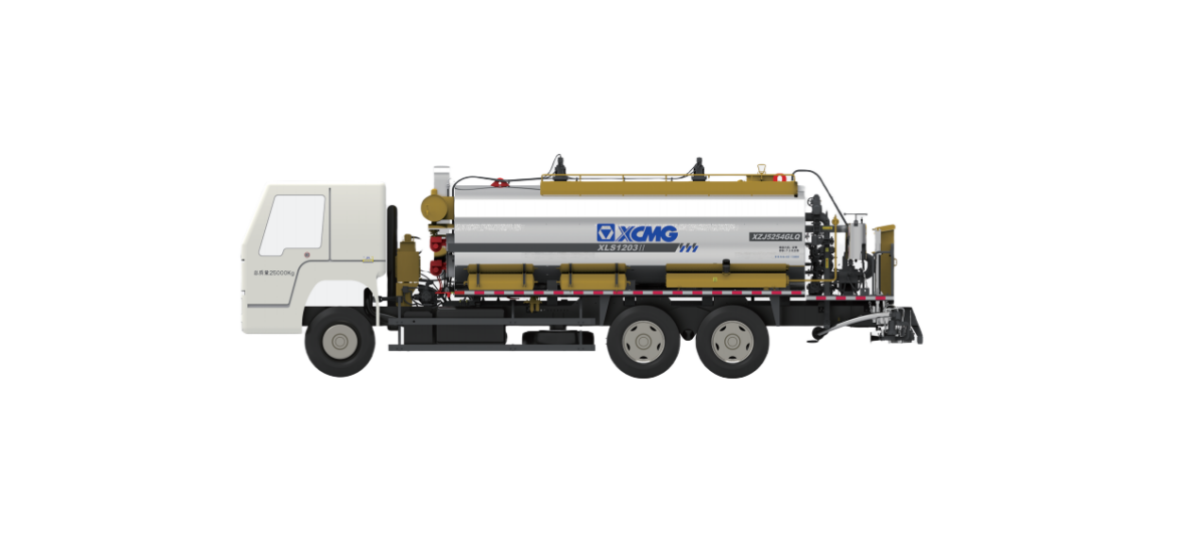

XLS1203 Intelligent asphalt distributor is an automation product specialized in distributing emulsified asphalt, diluted asphalt, hot asphalt and modified asphalt. The product controls the whole process of asphalt spraying through the controller, thus the asphalt distribution amount is not affected by the change of speed, and the high-precision spraying is achieved. It is mainly used for construction and maintenance projects of highway, all grades of roads and municipal roads, suitable distributing construction of prime coat, bonding layer, upper and lower sealing layers of different grades of road surface.


XLS1203
  • Parameters
  • Images Gallery
PARAMETERS
Item Unit Parameter
Curb weight kg 11200
Overall dimension mm 8900×2540×3090
Volume of asphalt tank 10.7
Max. spraying width m 6
Asphalt spraying amount ㎏/㎡ 0.2-3.0
Chassis model / Sinotruk
Engine type / YC6J220-33
Engine power kW/(r/min) 162/2500
Driving mode / 4×2
