GR165

D Series Motor Grader
GR165
Engine model(-): 6BTA5.9-C180-Ⅱ Rated power/speed(kW/rpm): 132/2200 Machine dimension(mm): 8900 x 2625 x 3420
GR165

GR165 motor grader is mainly used for ground leveling, ditching, slope scraping, bulldozing, scarification, snow removal for large areas such as highway, airports, farmlands etc., also can be used inheavy duty working conditions. The machine features compact structure and high reliability, is the indispensable construction machinery for national defense projects, urban and rural roads and other building construction and water conservancy construction, farmland improvement, etc.

GR165
  • Parameters
  • Images Gallery
PARAMETERS
Item Unit Parameter
Engine model - 6BTA5.9-C180-Ⅱ
Rated power/speed kW/rpm 132/2200
Machine dimension mm 8900 x 2625 x 3420
Machine weight kg 15000
Drive speed, forward km/h 5、8、11、19、23、38
Drive speed, reverse km/h 5、11、23
Traction force f=0.75 kN ≥77
Maximum gradeability % ≥25
Minimum turning radius m 7.3
Blade Length x Height mm 3660 x 610
Emission - EU Stage Ⅱ

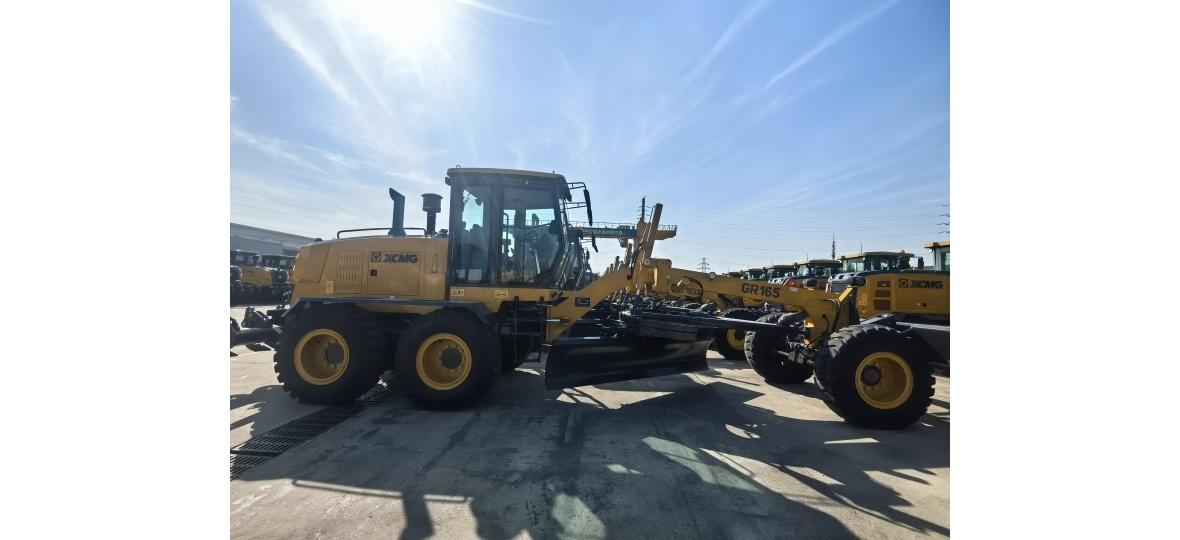

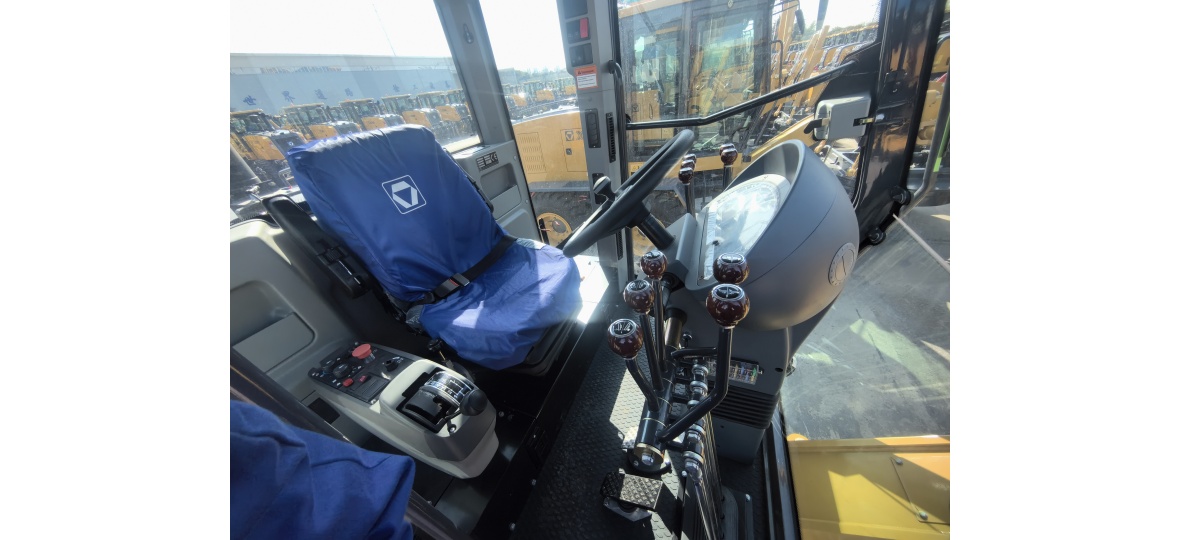

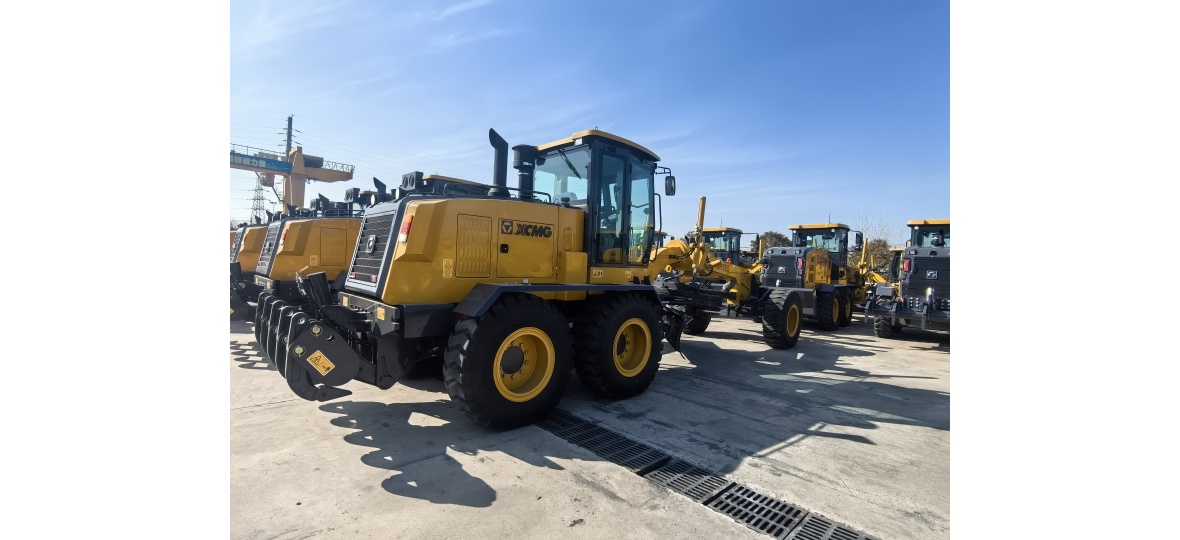

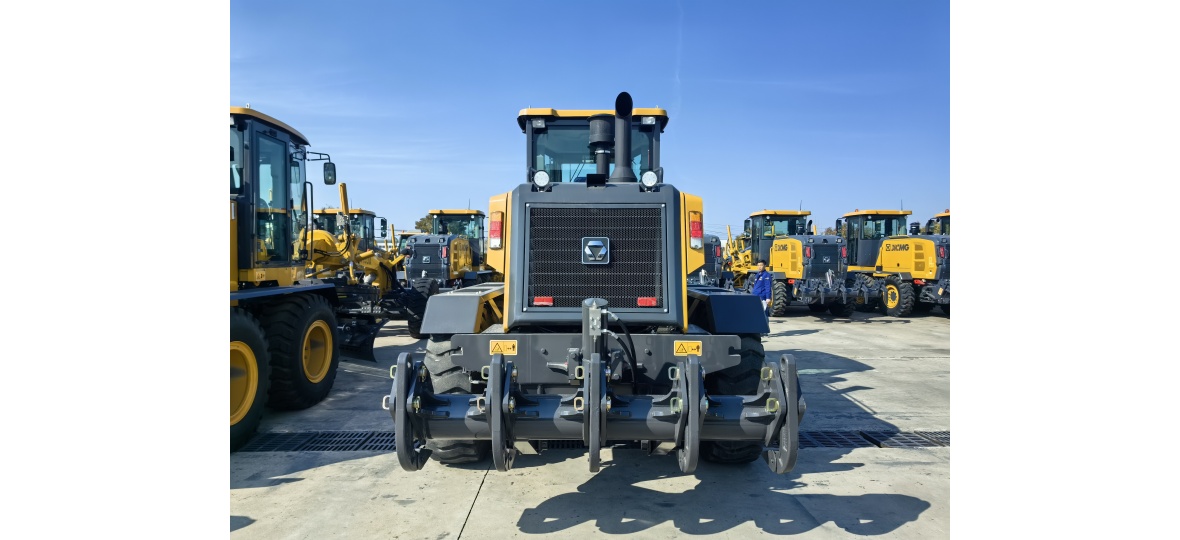

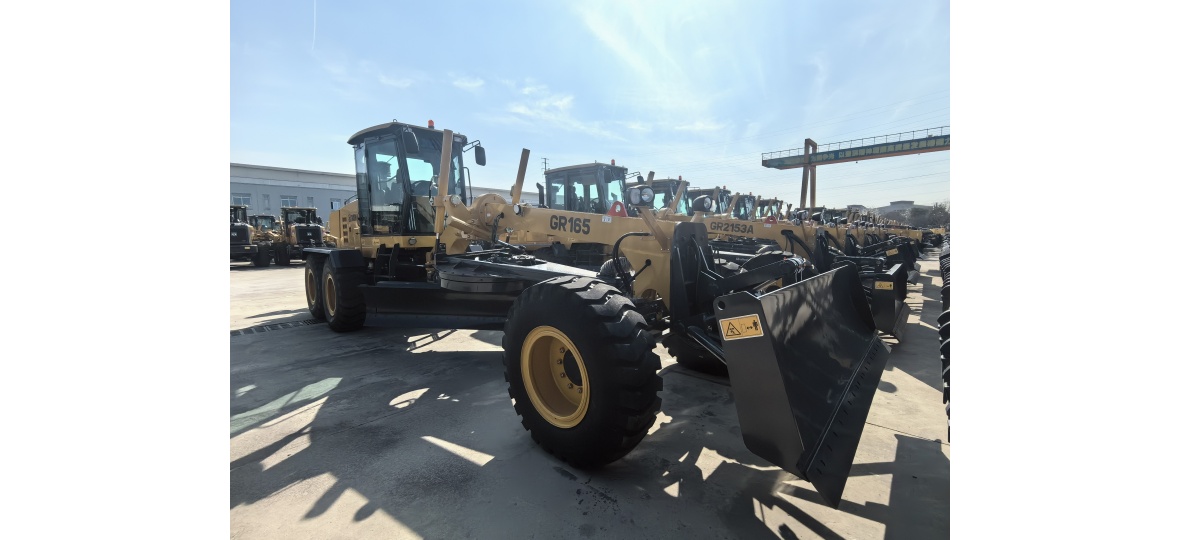

Images Gallery
