GR215A

D Series Motor Grader
GR215A
Engine model(-): 6CTA8.3-C215 Rated power/speed(kW/rpm): 160/2200 Machine dimension(mm): 9180 x 2625 x 3420
GR215A

GR215A motor grader is mainly used for ground leveling, ditching, slope scraping, bulldozing, scarification, snow removal for large areas such as high-way, airports, farmlands etc., also can be used inheavy duty and mining areas. The machine features compact structure and high reliability, is the indispensable construction machinery for national defense projects, urban and rural roads and other building construction and water conservancy construction, farmland improvement, etc.

GR215A
  • Parameters
  • Images Gallery
PARAMETERS
Item Unit Parameter
Engine model - 6CTA8.3-C215
Rated power/speed kW/rpm 160/2200
Machine dimension mm 9180 x 2625 x 3420
Machine weight kg 16100
Drive speed, forward km/h 5、8、11、19、23、38k
Drive speed, reverse km/h 5、11、23
Traction force f=0.75 kN ≥118
Maximum gradeability % ≥30
Minimum turning radius m 7.3
Blade Length x Height mm 4270 x 610
Emission - EU Stage Ⅱ

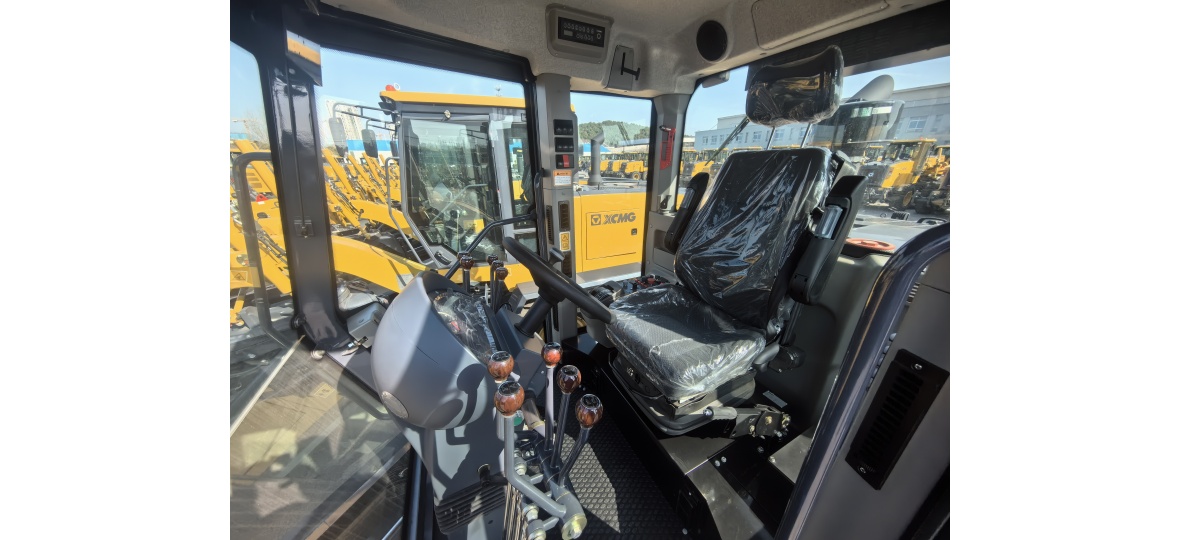

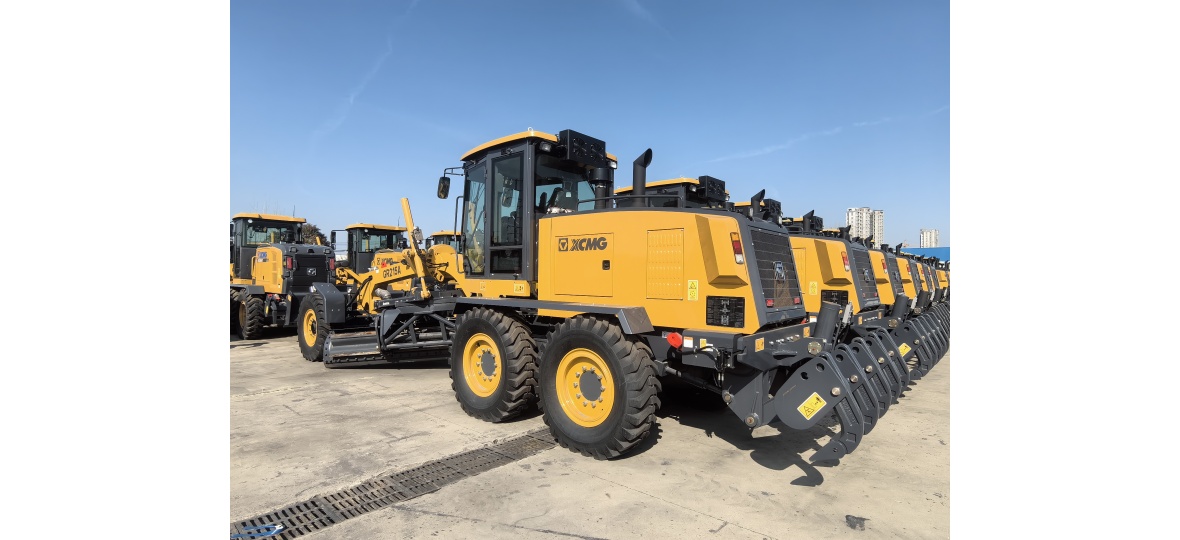

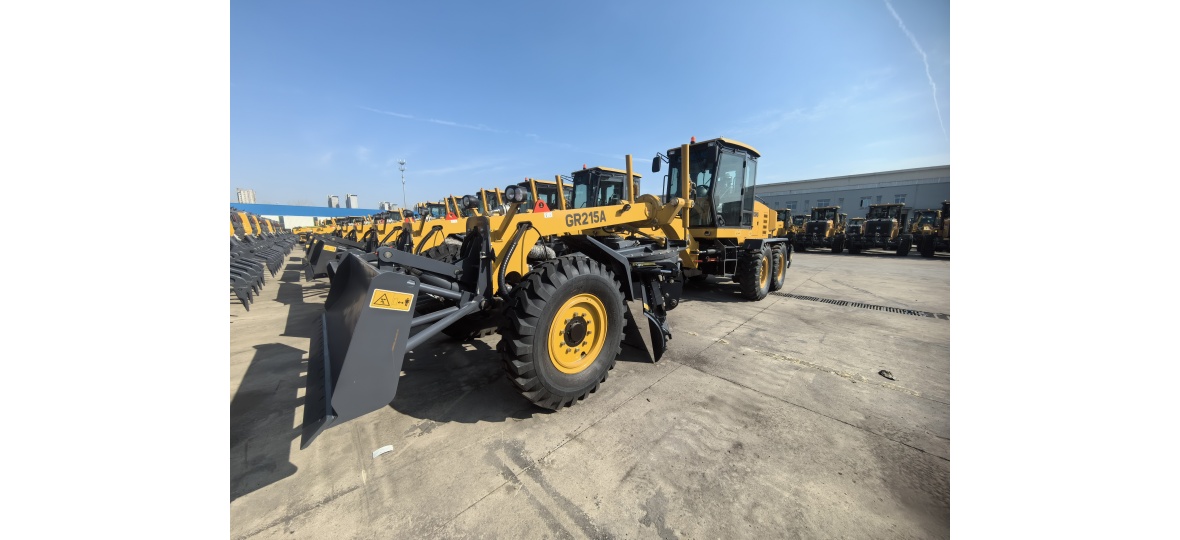

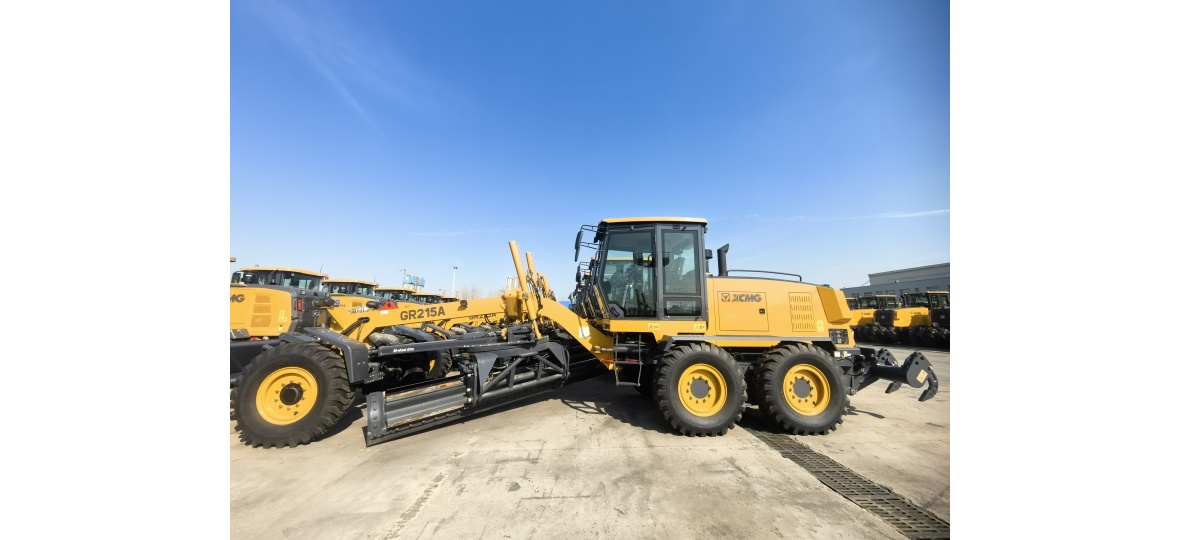

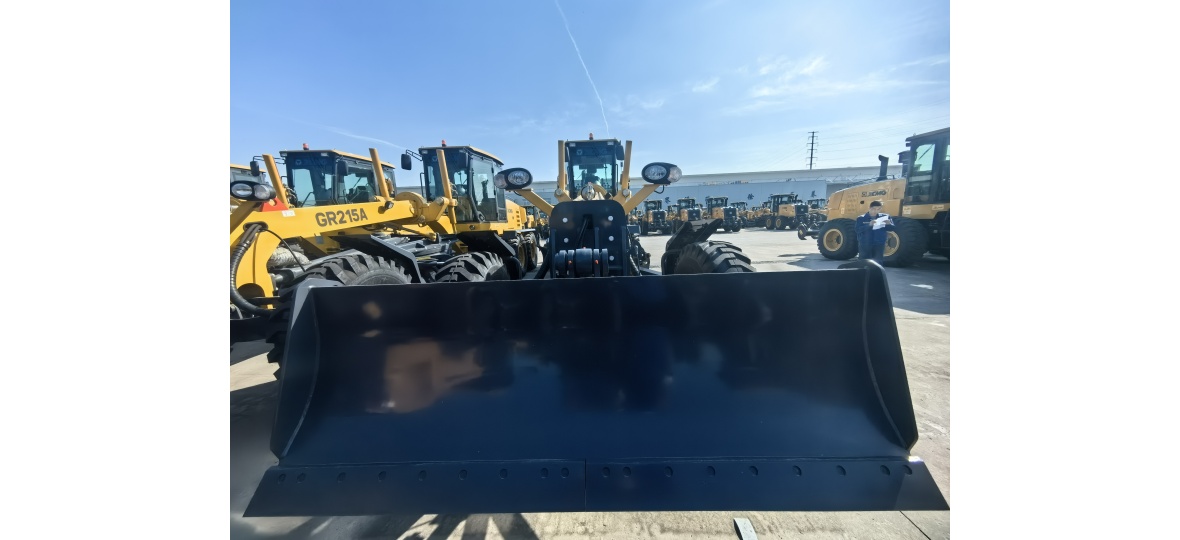

Images Gallery
