XE205D

D Series
XE205D
Operating weight(Kg): 21700 Rated power(kW/rpm): 135 Engine model(-): Shangchai SC7H180
XE205D

XE205D adopts 135kW low-speed and high-torque engine made by XCMG. With customized power and fuel consumption characteristic curves, it has sufficient power and low fuel consumption. The new type radiator with integral brazing technology and robot welding is equipped with a positive pressure degassing expansion tank to improve the service life of the pump, it can quickly remove the gas in the engine and the waterway, reduce rust, and meet the requirements of 50 °C environment. It can be widely applied to farmland water conservancy, river dredging and municipal construction. It can also realize different operations such as excavating, crushing and dismantling.

XE205D
  • Parameters
  • Images Gallery
  • Cases
PARAMETERS
Item Unit Parameter
Operating weight Kg 21700
Rated power kW/rpm 135
Engine model - Shangchai SC7H180
Bucket capacity 1
Emission standard - National Stage Ⅲ
Maximum torque/speed N.m 850/1300
Displacement L 6.5
Travel speed km/h 5.4/3.1
Swing speed r/min 12.5
Bucket digging force kN 149
Arm digging force kN 111

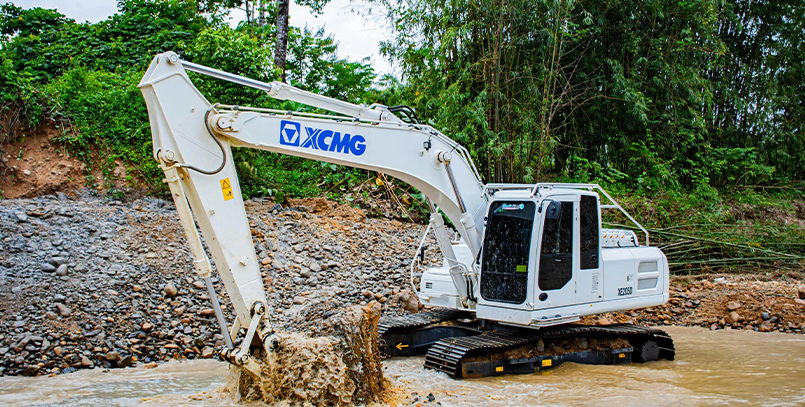

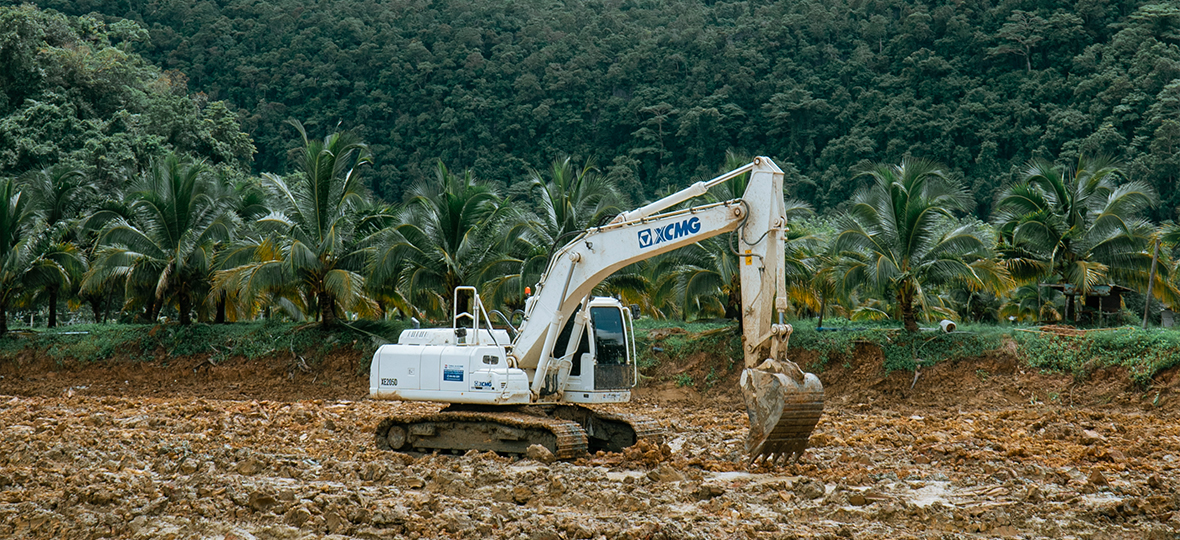

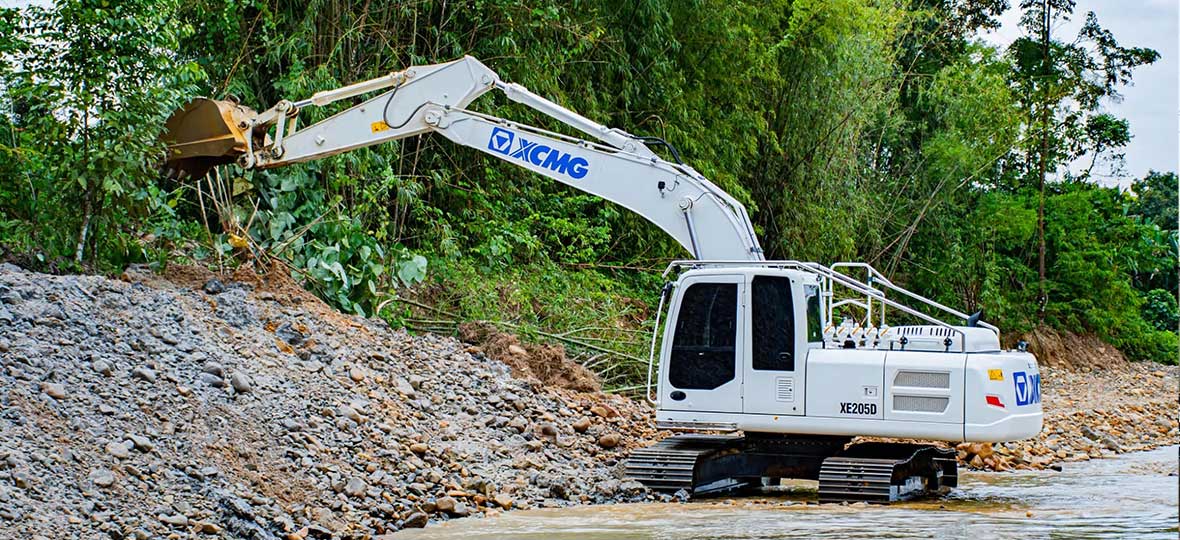

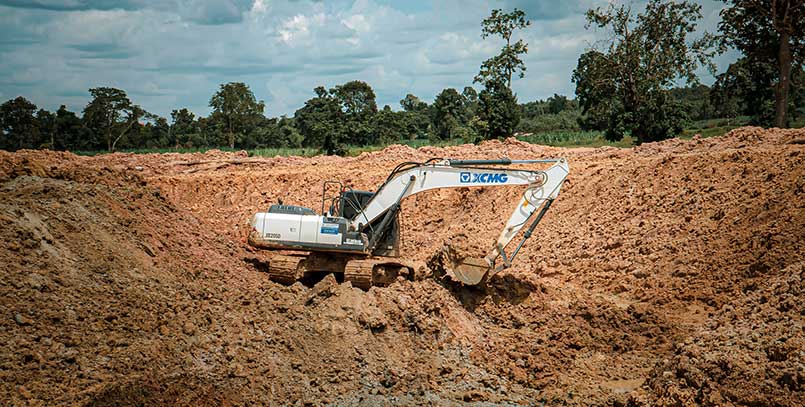

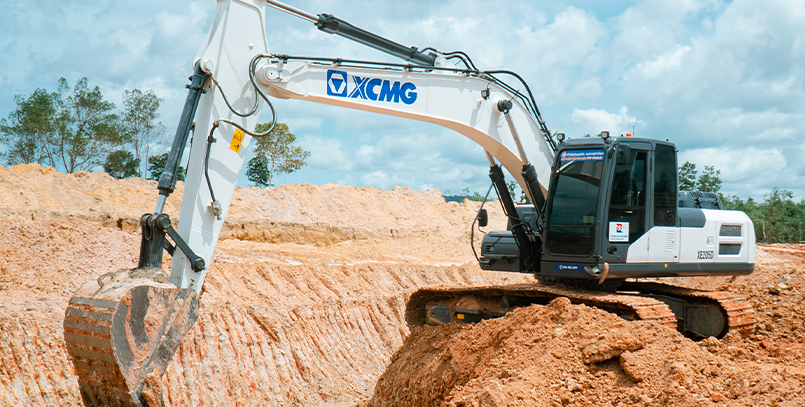

Images Gallery
