XE215DA

D Series
XE215DA
Operating weight(Kg): 21900 Rated power(kW/rpm): 135 Engine model(-): Cummins QSB7
XE215DA

XE215DA uses the latest separate pump independent control system. With the imported new main pump, main valve, and electronic control bucket rod, XE215DA enjoys efficiency improvement of 7%, oil consumption reduction of 10%, and great controllability improvement for the reduction of impacts from bucket rod start and stop, boom start and stop, etc. The large-diameter bucket cylinder and bucket rod cylinder can help improve the digging force by more than 5%. It can be widely used for irrigation and water conservancy, river dredging, municipal construction and small mine construction, meeting requirements of different operations such as digging, breaking and dismantling.

XE215DA
  • Parameters
  • Images Gallery
  • Cases
PARAMETERS
Item Unit Parameter
Operating weight Kg 21900
Rated power kW/rpm 135
Engine model - Cummins QSB7
Bucket capacity 1.05
Emission standard - National Stage Ⅲ
Maximum torque/speed N.m 740/900-1600
Displacement L 6.7
Travel speed km/h 5.4/3.1
Swing speed r/min 11.8
Bucket digging force kN 149
Arm digging force kN 111

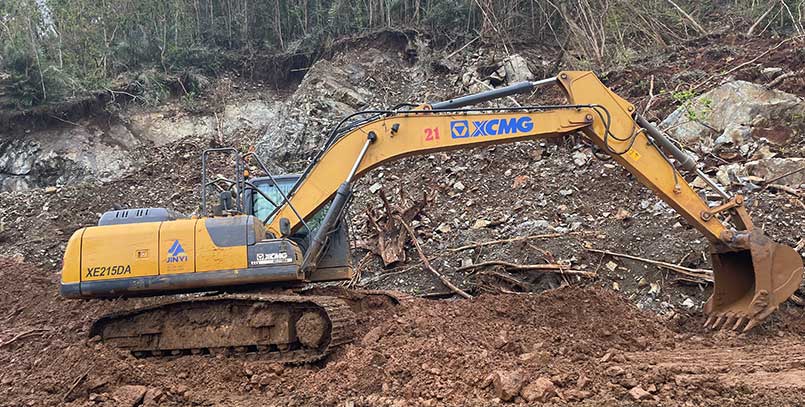

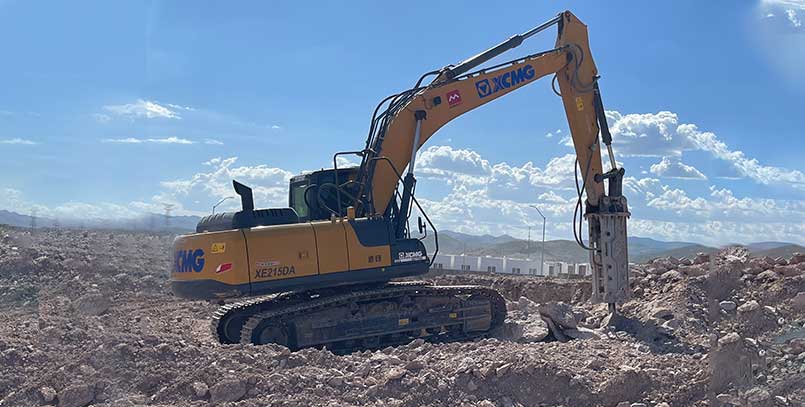

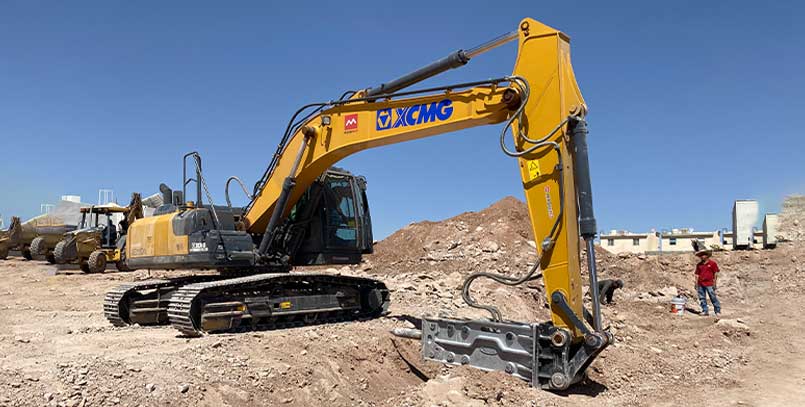

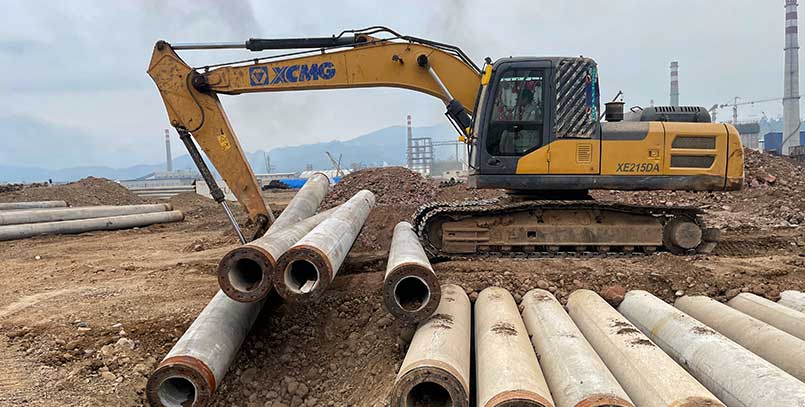

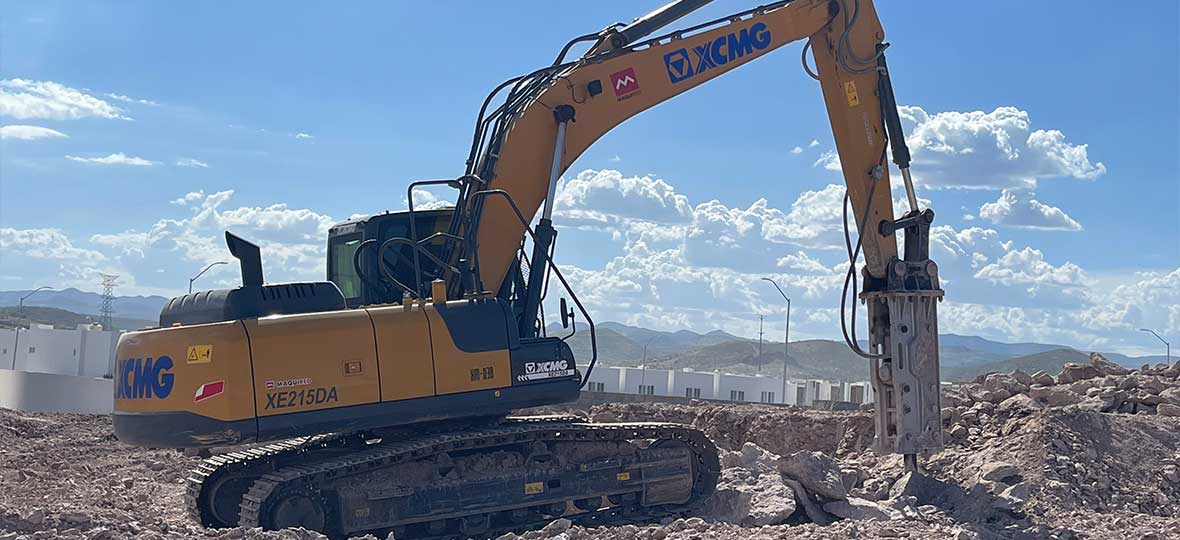

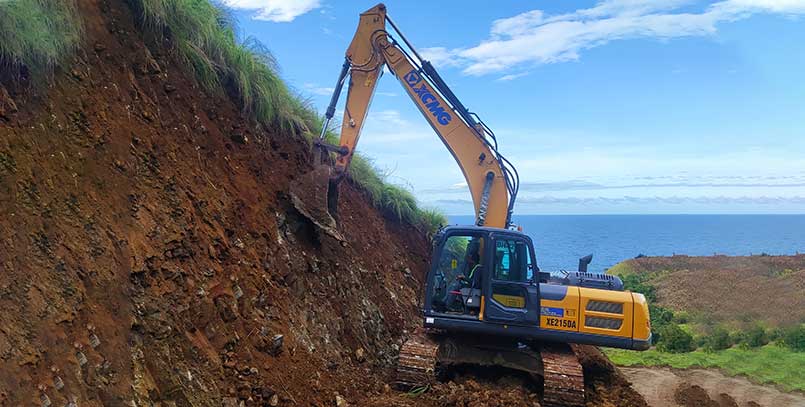

Images Gallery
