Quick Preview

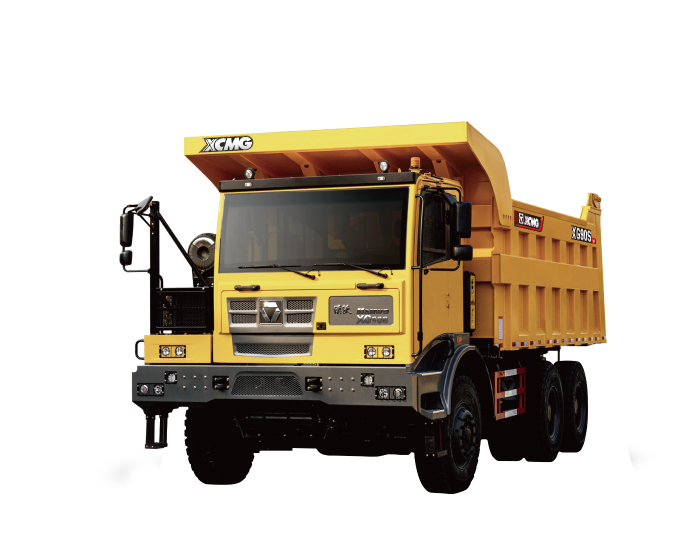

XG90S Mining Dump Truck is one of the flagship mining dump truck series from XCMG. This series combines engineering machinery design concepts with off-highway wide-body dump trucks. It features a unique rigid welded frame. The front suspension adopts a thrust rod + sliding plate suspension structure, while the rear suspension uses rubber-type maintenance-free bearings. The vehicle is equipped with full hydraulic steering, giving the chassis excellent ride comfort and high reliability. The XG90S offers strong driving capability, a small turning radius, and high gradeability, making it highly adaptable to harsh working conditions such as muddy, rugged, and narrow terrains.
| Rated load capacity | kg | 60000 |
| Drive configuration | 6x4 | |
| Travel speed | km/h | 40 |
| Dimensions | mm | 9200 × 3850 × 3940 |
| Ground clearance | mm | 385 |
| Turning radius | m | 11 |
| Tire size | 14.00R25 |
