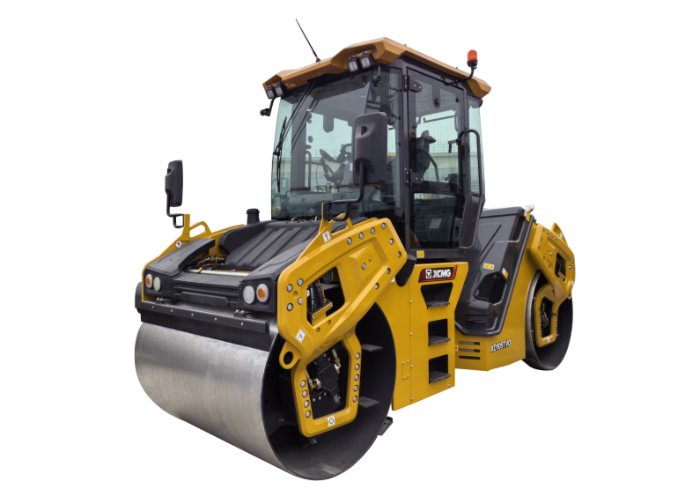

XD105TVO

Double Drum Vibratory Roller
XD105TVO
Operating weight(kg): 10000 Static linear load(N/cm): 292/292 Vibration frequency(Hz): 60/45
XD105TVO

The XD105TVO vibratory roller is designed to meet the high-end customer requirements and special working conditions in markets such as Australia and Central Asia that adhere to Euro III standards. It is suitable for compaction operations of asphalt layers and can compact various materials and layers of different thicknesses. It is particularly suitable for pavement compaction in roads, parking lots, airports, as well as bridges, tunnels, and thin-layer paving. Applicable environment: altitude ≤ 4000m, temperature -10 to +45℃.

XD105TVO
  • Parameters
PARAMETERS
Item Unit Parameter
Operating weight kg 10000
Static linear load N/cm 292/292
Vibration frequency Hz 60/45
Excitation force kN 110/101
Drum width mm 1680
Theoretical gradeability % 35
Model - QSF3.8
Rated power kW 104
Rated speed r/min 2200
Emission - EU Stage Ⅲ
