XD135T(Stage Ⅲ)

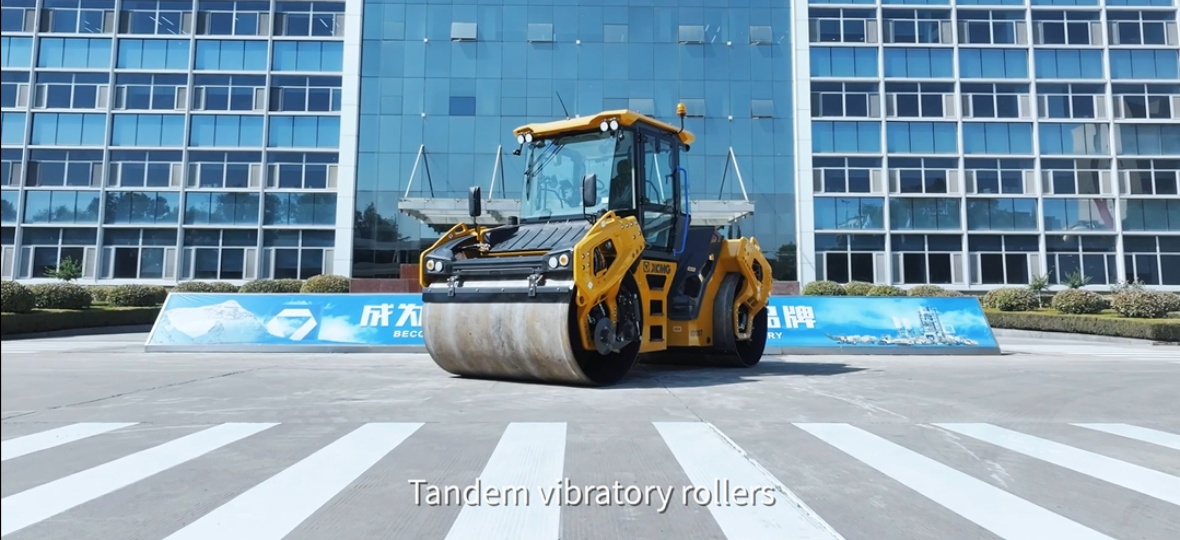

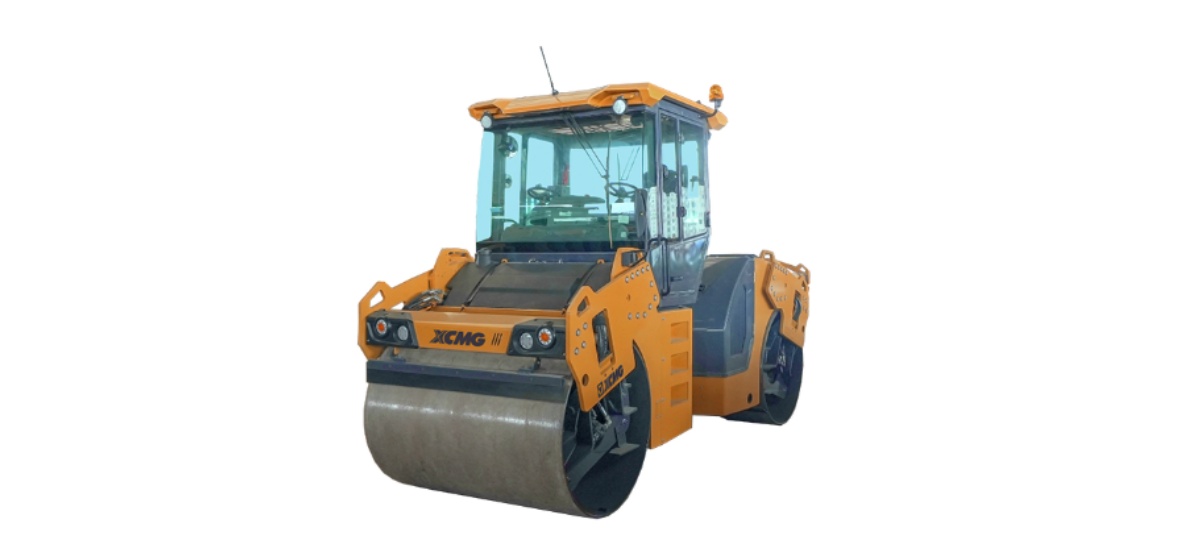

Double Drum Vibratory Roller
XD135T(Stage Ⅲ)
Operating weight(kg): 13000 Static linear load(N/cm): 299/299 Vibration frequency(Hz): 50/60
XD135T(Stage Ⅲ)

XD135T vibratory roller is designed to meet the requirements of high-end customers and special working conditions in high-end market. It is widely applicable to compacting asphalt pavement; layers of different materials and different thickness; large engineering projects such as roads, parking lots, airports; and base layer and sub-base layers. It is an ideal compacting equipment for asphalt top layer construction in highway management and maintenance.

XD135T(Stage Ⅲ)
  • Parameters
  • Images Gallery
PARAMETERS
Item Unit Parameter
Operating weight kg 13000
Static linear load N/cm 299/299
Vibration frequency Hz 50/60
Excitation force kN 178/96
Drum width mm 2130
Theoretical gradeability % 35
Model - Cummins QSF3.8
Rated power kW 104
Rated speed r/min 2200
Emission - EU Stage Ⅲ
