XE10E

E Series
XE10E
Operating weight(Kg): 1200 Rated power(kW/rpm): 9.8/2,300 Engine model(-): Kubota/D782
XE10E

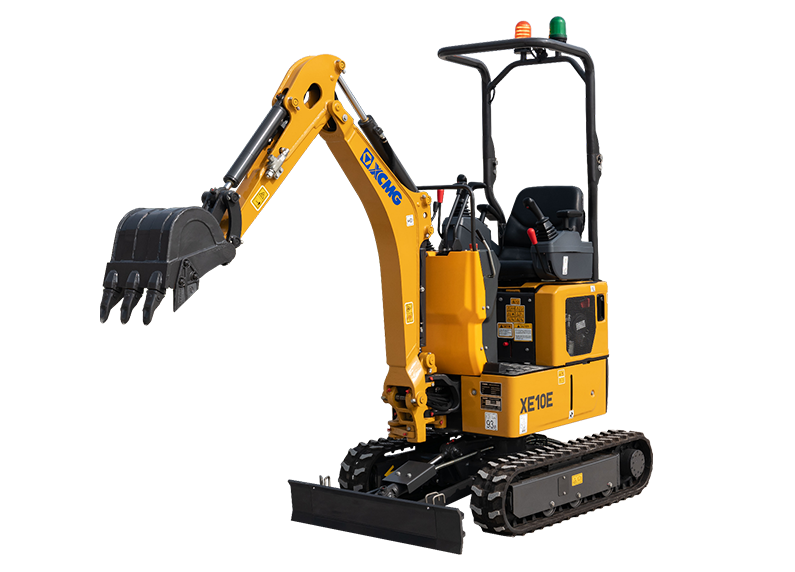

The XE10E hydraulic excavator is equipped with a 9.8kW high-power engine, which is powerful and powerful. The whole machine adopts a compact short-tail design and an extremely narrow body, which makes it easy to work in narrow spaces. It is equipped with a high-power hydraulic oil radiator with strong heat dissipation capacity. It is equipped with a 4.3-inch instrument and can swing the armrest box left and right, which is comfortable for people and machines. With multi-functional working accessories, it can complete tasks such as excavation, loading, leveling, ditching, and crushing. It is widely used in the fields of house and courtyard repair, garden renovation, etc.

XE10E
  • Parameters
  • Images Gallery
  • Cases
PARAMETERS
Item Unit Parameter
Operating weight Kg 1200
Rated power kW/rpm 9.8/2,300
Engine model - Kubota/D782
Bucket capacity 0.022
Emission standard - EU stage V
Maximum torque/speed N.m 44.5/1,800
Displacement L 0.778
Travel speed km/h 3.7/2.1
Swing speed r/min 9
Bucket digging force kN 11.5
Arm digging force kN 6.6
Images Gallery
