XD140VT(Stage Ⅴ)

Light Compaction Equipment
XD140VT(Stage Ⅴ)
Engine(-): Kubota Rated Power(kW): 33.6 Emission(-): EU Stage V / EPA TIER4f
XD140VT(Stage Ⅴ)

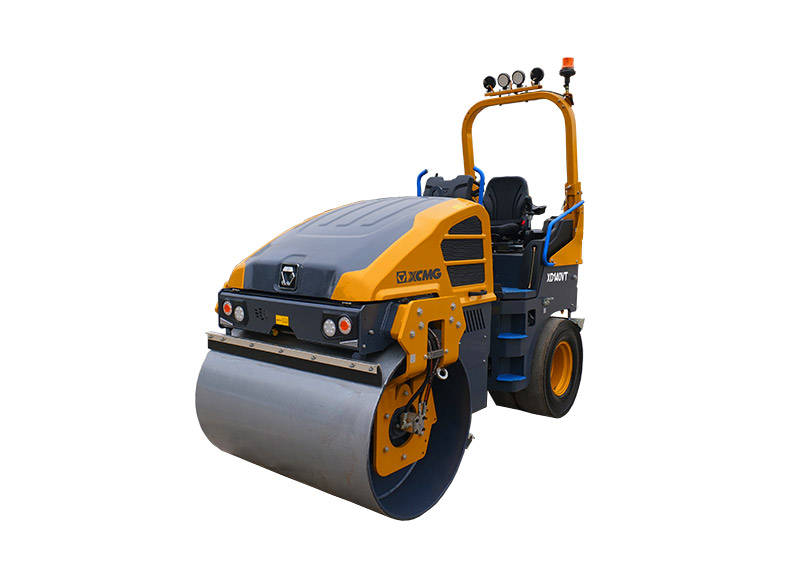

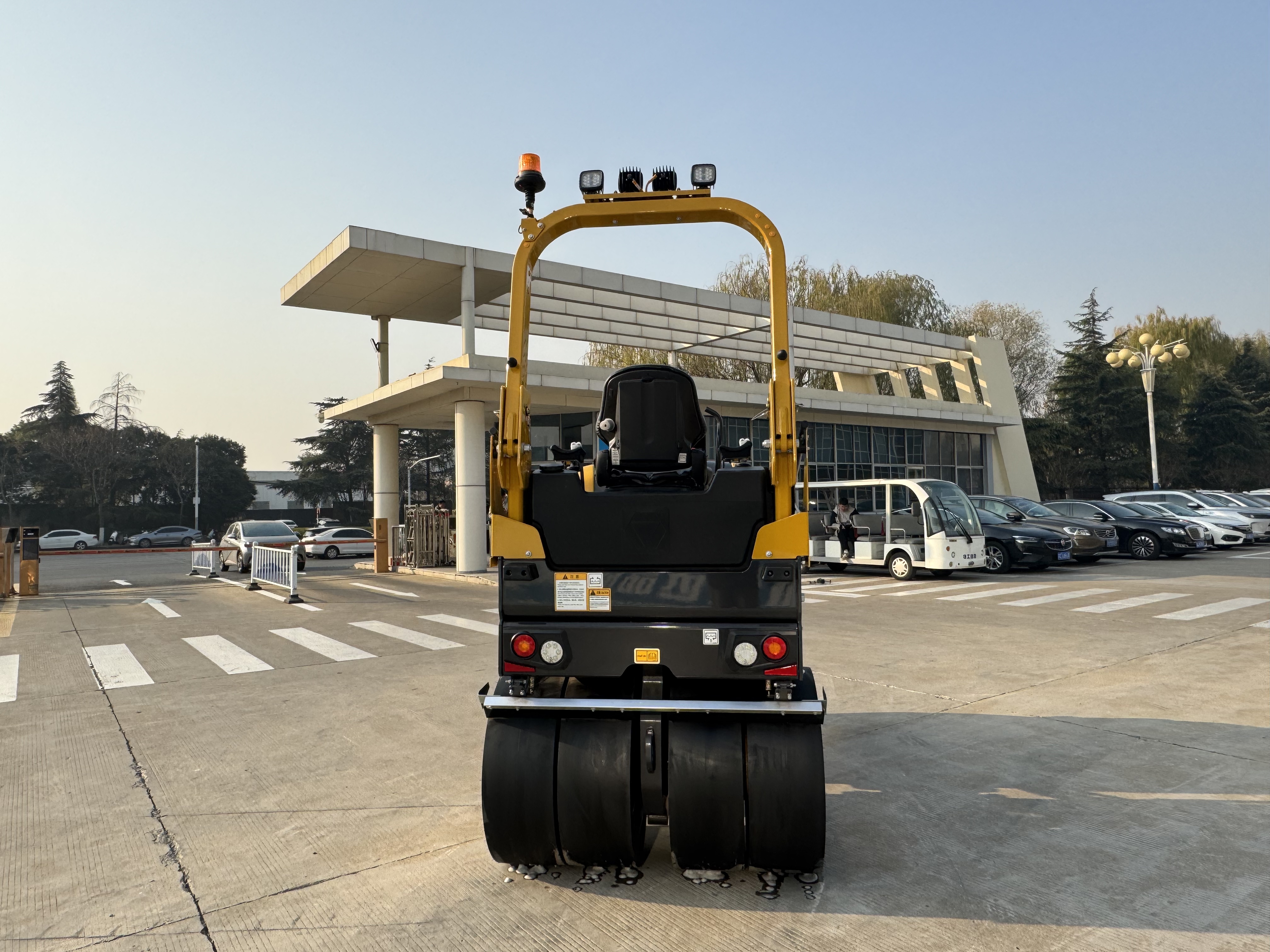

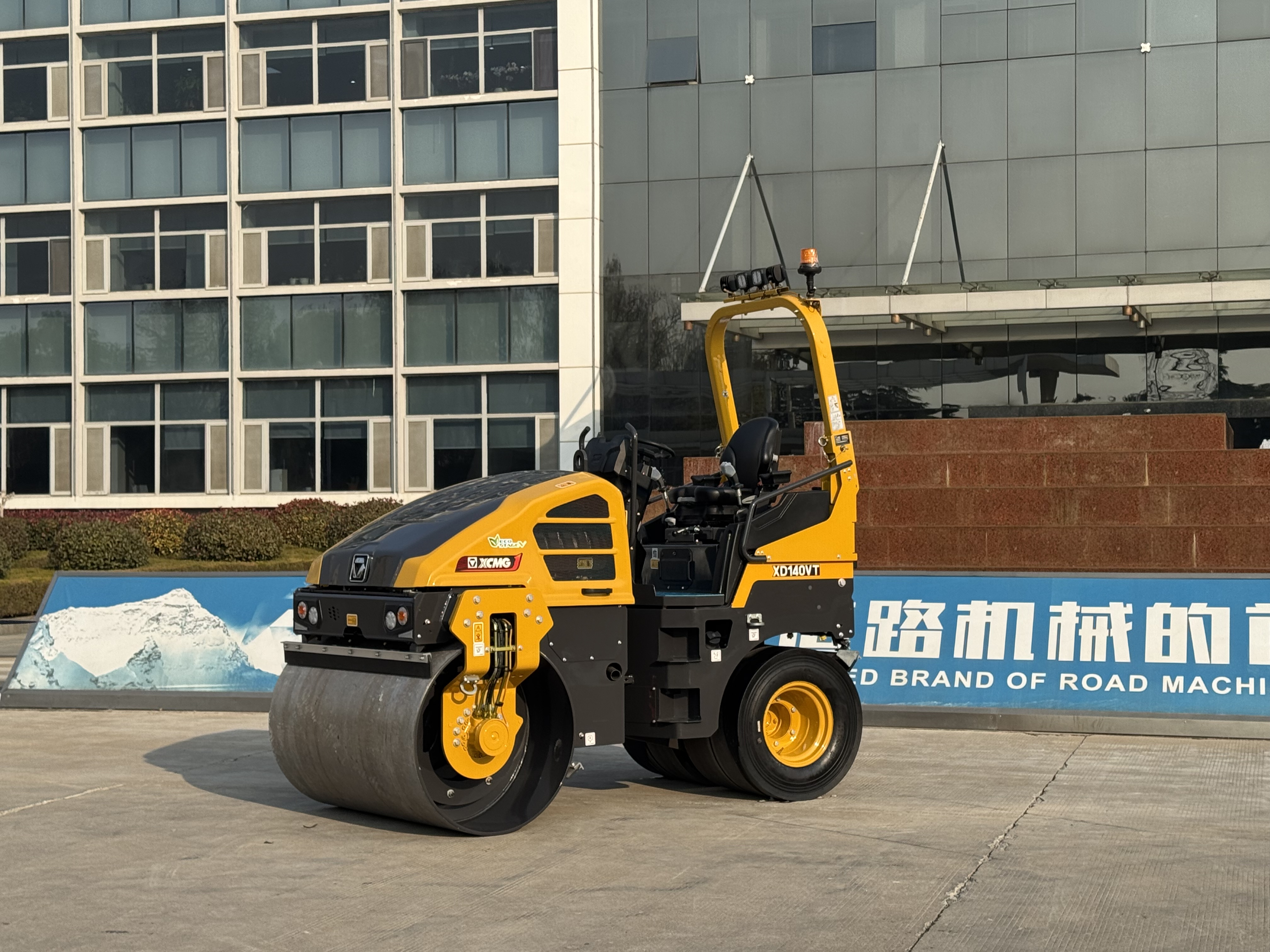

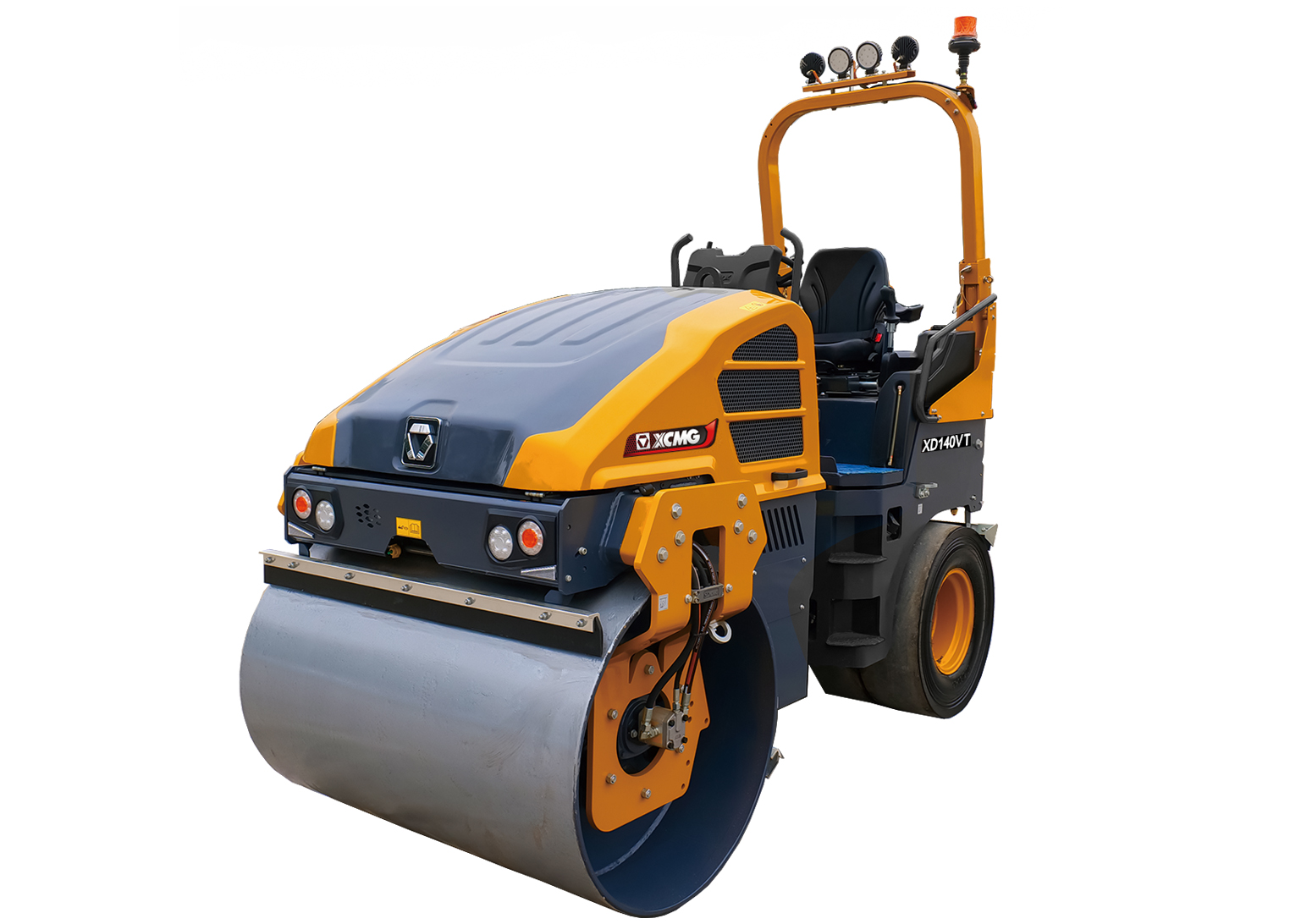

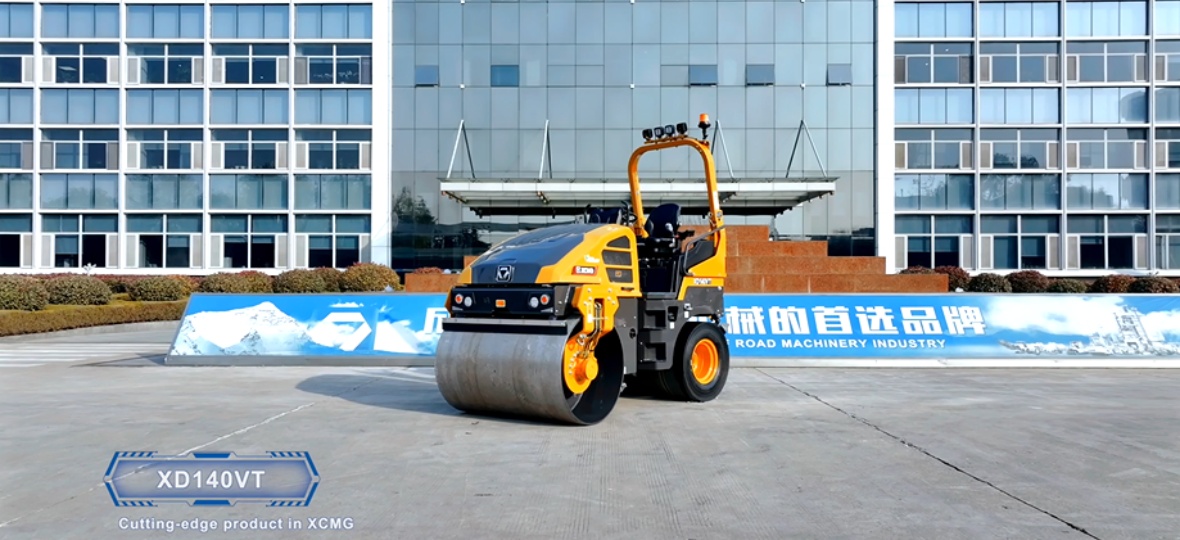

XD140VT combination roller is characterized by combination of front drum and rear static tire, can implement both vibration compaction and surface kneading. It is an efficient and high-quality compaction machine for compaction operations in limited areas and infrastructure reconstruction and expansion projects.

It is mainly applicable to compaction work on asphalt top layer of newly built pavement  and thinner stable soil pavement, and road maintenance work. With compact structure, high flexibility, small blind area, high operating comfort, it is an ideal compaction equipment for municipal maintenance and highway custody.

XD140VT(Stage Ⅴ)
  • Parameters
  • Images Gallery
PARAMETERS
Item Unit Parameter
Engine - Kubota
Rated Power kW 33.6
Emission - EU Stage V / EPA TIER4f
Vibration frequency Hz 53/60
Operating Weight kg 4000
Working Width mm 1380
Dimensions mm 2,910 x 1,515 x 2,940
Foldable ROPS Dimensions mm 3,250 x 1,515 x 1,980
