Motor Grader
Engine model(/): QSB6.7 Rated power/speed(kW/rpm): 178/2200 Machine dimension(standard)(mm): 9343×2625×3432

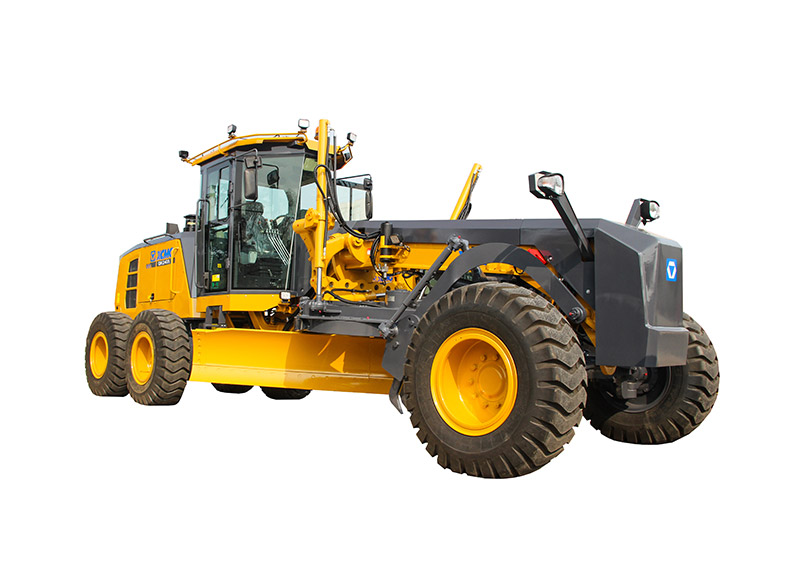

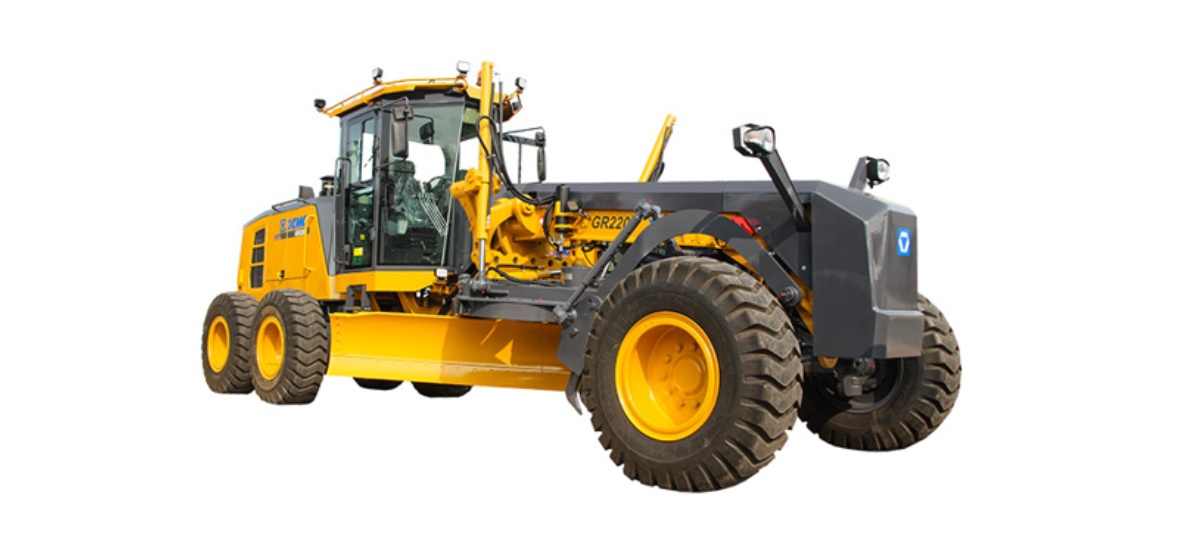

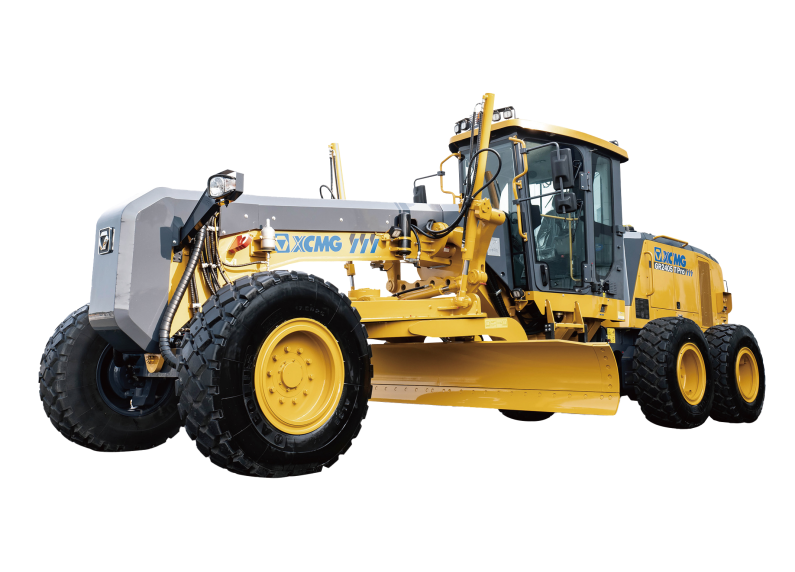

GR2405T motor grader is mainly used for groundleveling,ditching,slope scraping,bulldozing,scari-fication,snow removal for large areas such as high-way,airports,farmlands etc.,also can be used inheavy duty working conditions.The machine fea-tures compact structure and high reliability,is theindispensable construction machinery for nationaldefense projects,urban and rural roads and otherbuilding construction and water conservancy con-struction,farmland improvement,etc.

  • Parameters
Item Unit Parameter
Engine model / QSB6.7
Rated power/speed kW/rpm 178/2200
Machine dimension standard 9343×2625×3432
Machine weight standard 17000
Tire specification / 17.5--25
Ground clearance Front axle /
Wheel track mm 2156
Axle distance between front and rear mm 6527
Minimum ground clearance, front axle mm /
Wheel base between middle and rear mm 1538
Drive speed, forward km/h 5/8/11/18/25/40
Drive speed, reverse km/h 2005-11-25 00:00:00
Traction force f=0.75 kN ≥88
Maximum gradeability % ≥25
Tire inflation pressure kPa 260
Hydraulic system type / /
Work system pressure MPa 26
Transmission box pressure Mpa 1.85-2.2
Maximum steering angle, front wheel ° ±48
Allowable tilt angle, front wheel ° ±17
Maximum oscillation, front axle ° ±15
Maximum oscillation, balance box ° Front 15 rear 15
Maximum steering angle, frame ° ±25
Minimum turning radius m 7.6
Maximum lift above ground mm 452
Maximum cutting depth mm 755
Sideshift distance left/right mm /
Maximum tilt angle ° 90
Cutting angle ° Front 40 rear 5
Swivel angle ° 360
Length x Height mm 3965×610
Coolant L 50
Fuel tank L 390
Engine L 24
Transmusswon box L 38
Balance box L 75 each
Drive axle L 25
Hydraulic oil L 105
