XPY1100

Movable Cone Crushing Station
XPY1100
Curb weight / Including material return conveyor(kg): 63750 Curb weight / Not including material return conveyor(kg): 57400 Handling capacity(t/h): 110-440
XPY1100

XPY1100 movable cone crushing station has reliable performances and a pleasant appearance, and is equipped with a multi-cylinder hydraulic cone crusher, a hydraulic lubrication system, an advanced electric control system and self-adaptive engine power matching technology, and the overall machine design has reached world advanced level. It is widely used for coarse crushing of highly abrasive natural stones and for intermediate and fine crushing, and the application can be extended to mining field.

XPY1100
  • Parameters
  • Images Gallery
PARAMETERS
Item Unit Parameter
Curb weight / Including material return conveyor kg 63750
Curb weight / Not including material return conveyor kg 57400
Handling capacity t/h 110-440
Max. grade ability ° 11
Travel speed km/h 0.8-1.1
Fuel tank capacity L 750
Hydraulic oil tank capacity L 260
Lubrication oil tank capacity L 300

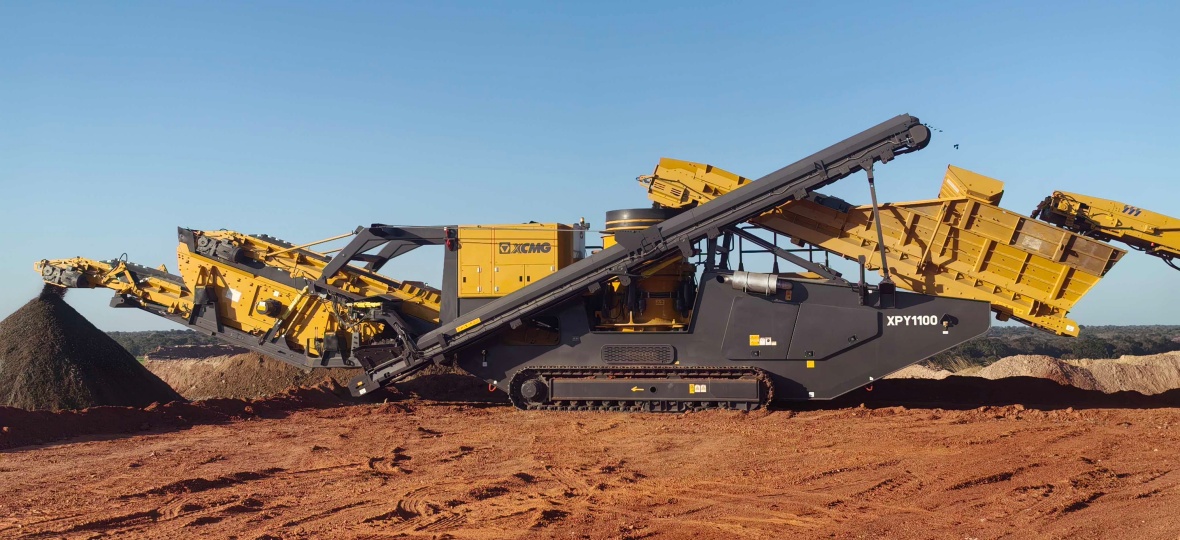

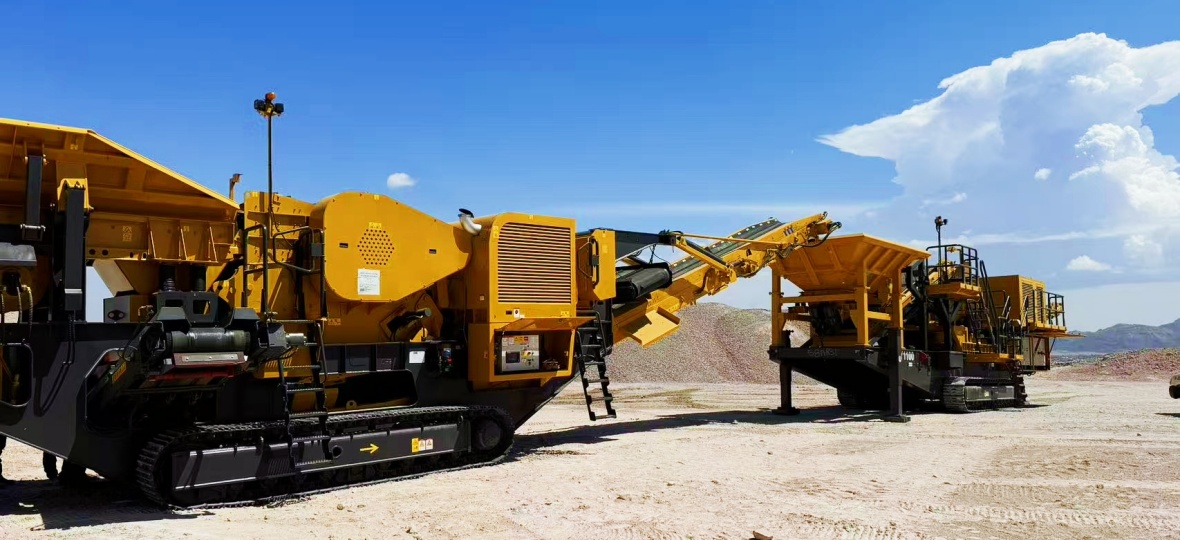

Images Gallery
