XD120EP

New Energy Roller
XD120EP
Operating Weight(kg): 3000 Static Linear Load(N/cm): 122/122 Vibration Frequency(Hz): 42/45/50
Order Online Service Outlets
XD120EP

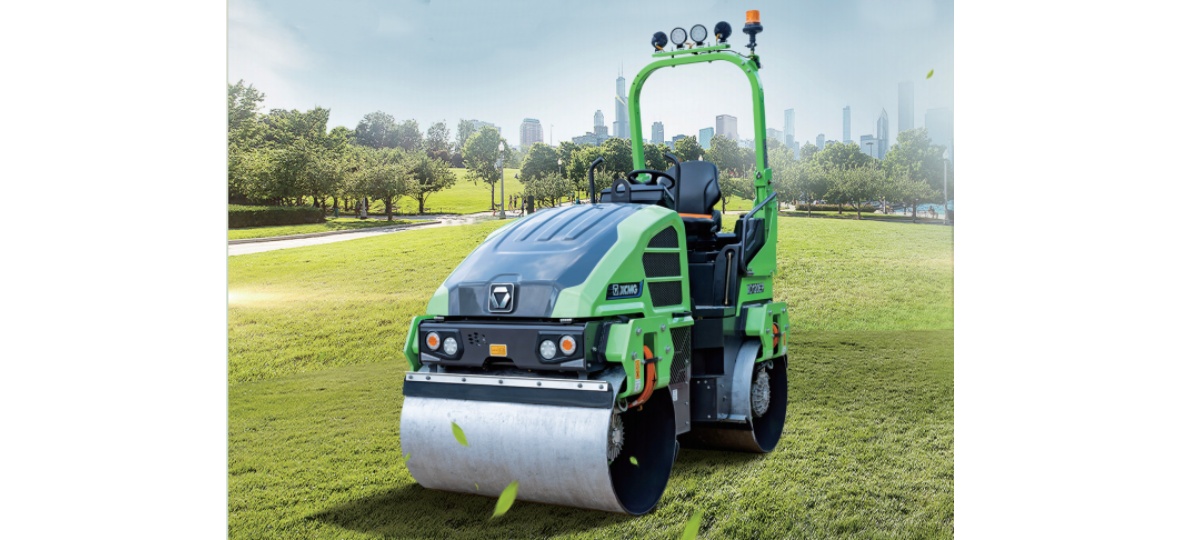

XD120EP electric vibratory roller employs a dual-motor drive and dual-motor vibration design. The machine's

overall flexibility, minimal blind spots, high operating comfort, and low noise and zero emission characteristics make it an optimal choice for asphalt surface lamination in municipal maintenance and high-speed pipe maintenance applications.

XD120EP
Service Outlets Order Online
  • Parameters
  • Images Gallery
PARAMETERS
Item Unit Parameter
Operating Weight kg 3000
Static Linear Load N/cm 122/122
Vibration Frequency Hz 42/45/50
Amplitude mm 0.42
Centrifugal Force kN 37
Vibratory Drum Diameter × Width mm 720×1200
Travel Speed km/h 0-10
Theoretical Gradeability % 30
Ground Clearance mm 275
Steering Angle ° 32
Power Battery kWh 31.4
Voltage V 128
Images Gallery
Images Video

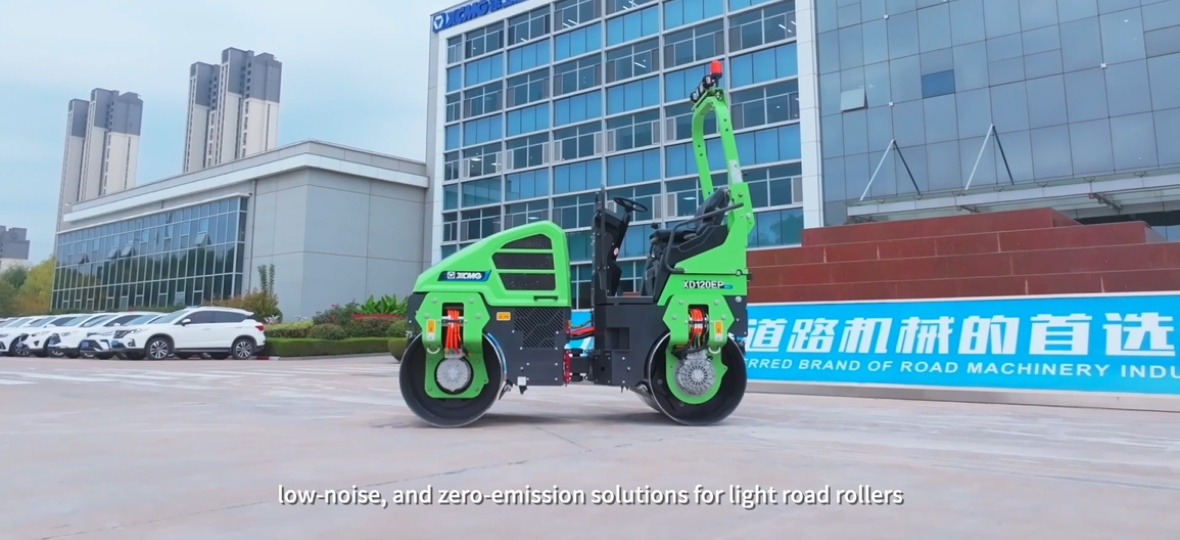

XD120EP介绍
