XP163

Pneumatic Roller

XP163

Engine: Shangchai Rated Power(kW): 86 Emission: Stage Ⅱ

Order Online Service Outlets

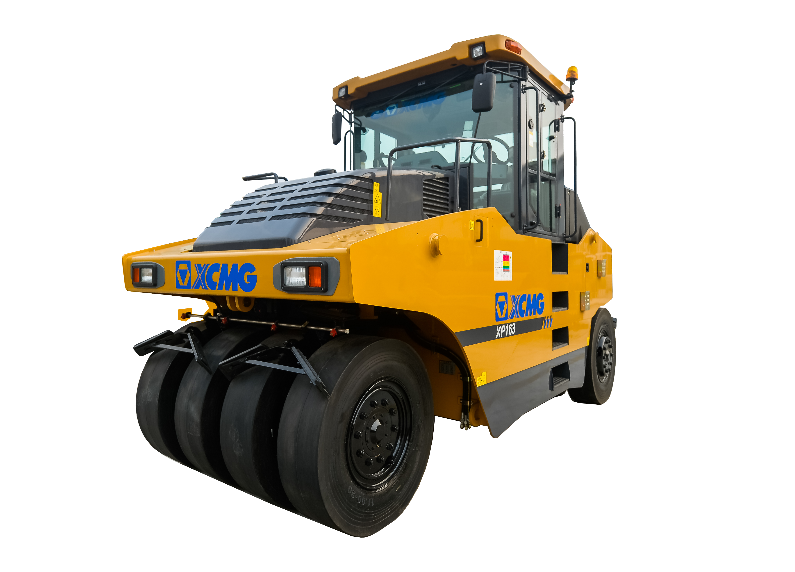

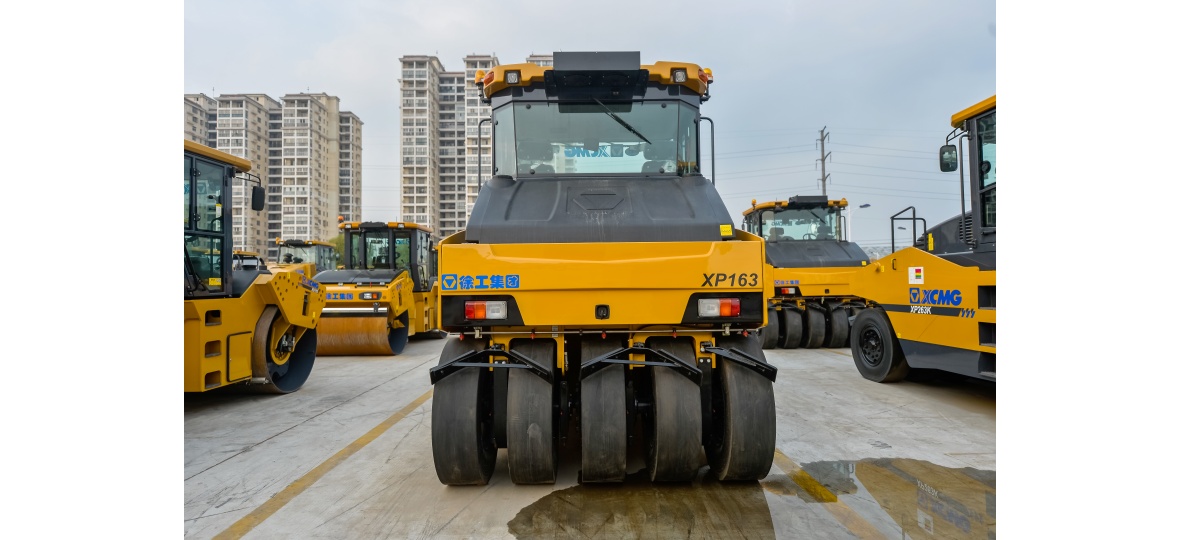

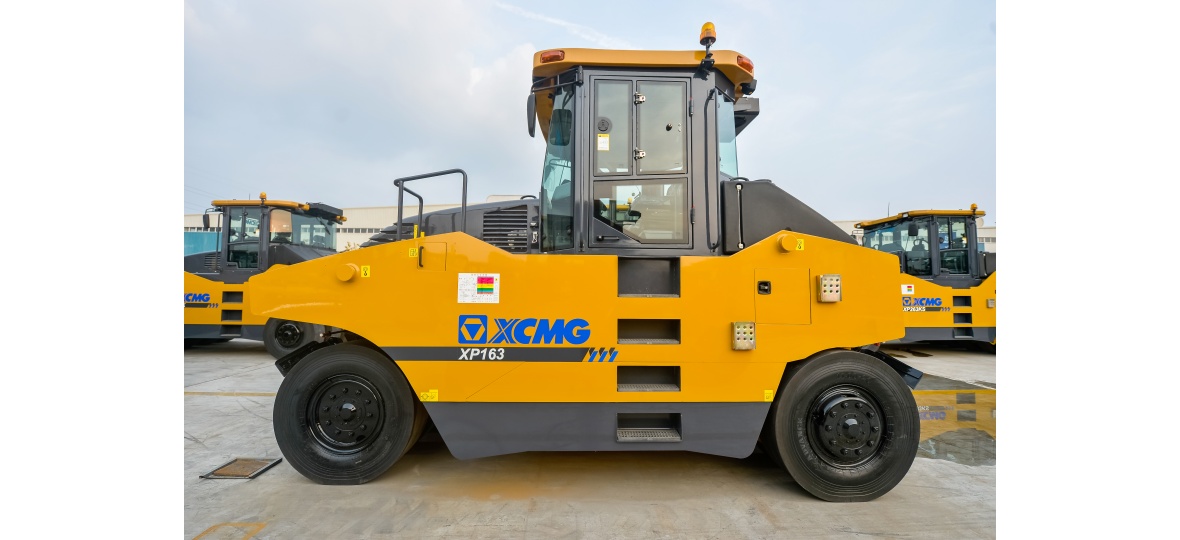

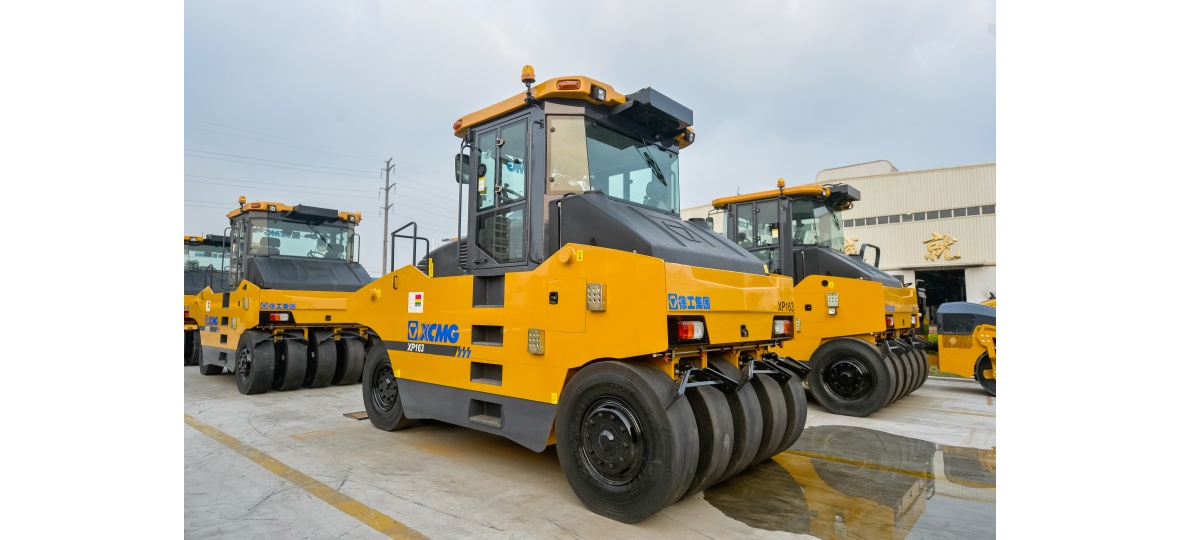

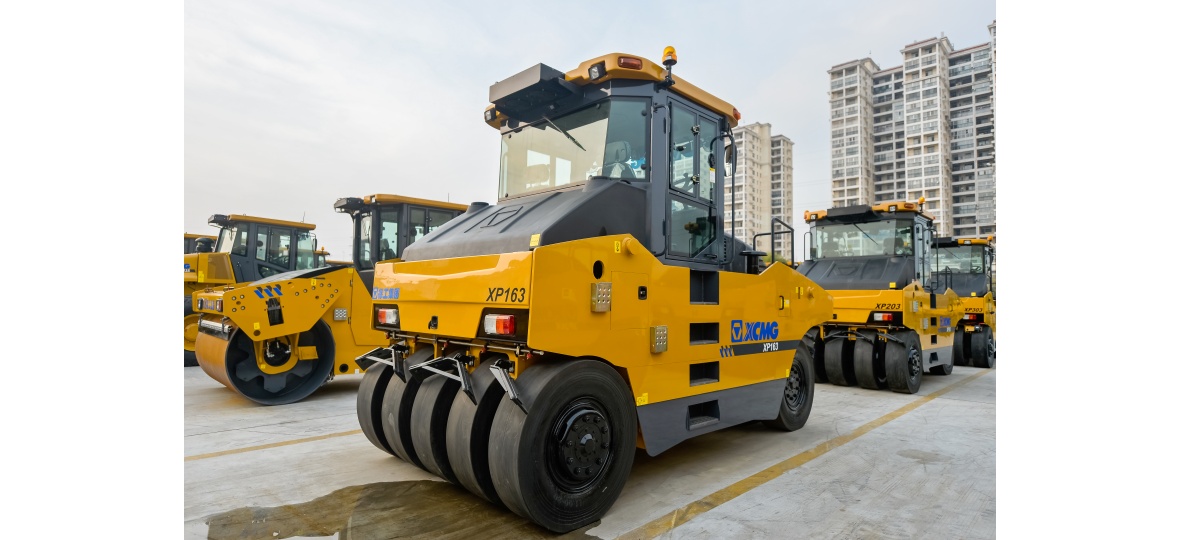

XP163 pneumatic tire roller is an indispensable equipment for the construction of high grade highway, large-scale foundation rolling and all kinds of filling and compaction.Its unique kneading and compaction performance makesit irreplaceable by other machine models. XP163 is a self-propelled static roller, with efficient compaction abili-ty and excellent compaction performance, applies tocompaction asphalt pavement, base layer, subbase layerand filling. It is widely used in compaction operations for all kinds of traffic roads, airports, ports, dams and other large engineering, especially for high grade highway pavement.

XP163

Service Outlets Order Online

Parameters

PARAMETERS

Item Unit Parameter: Engine - Shangchai; Rated Power kW 86; Emission - Stage Ⅱ; Operating Weight kg 16000; Working Width mm 2055; Dimensions mm 4,780 x 2,232 x 3,340; Working speed km/h 0～4.5;0～8.7;0～18.4 / 0~4.5;0~8.7; Gradeability % 30; Minimum turning radius mm 7253; Minimum ground clearance mm 300; Wheelbase mm 3700; Steering angle ° ±35; Oscillation of front wheel mm ±50; Braking distance m ≤5900; Drum width mm 2055; Overlapping quantity mm 30; Ground pressure kPa 150～300; Rated power kW 86; Rated speed r/min 1800
