XP165U

Pneumatic Roller

XP165U

Engine: Cummins Rated Power(kW): 90 Emission: EU Stage V / T4F

Order Online Service Outlets

XP165U

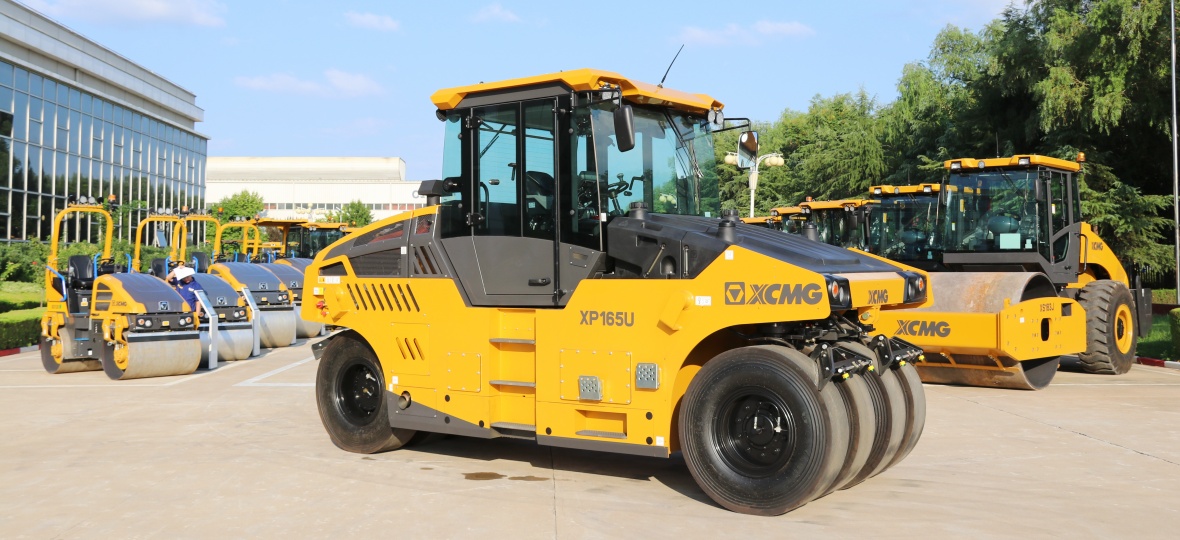

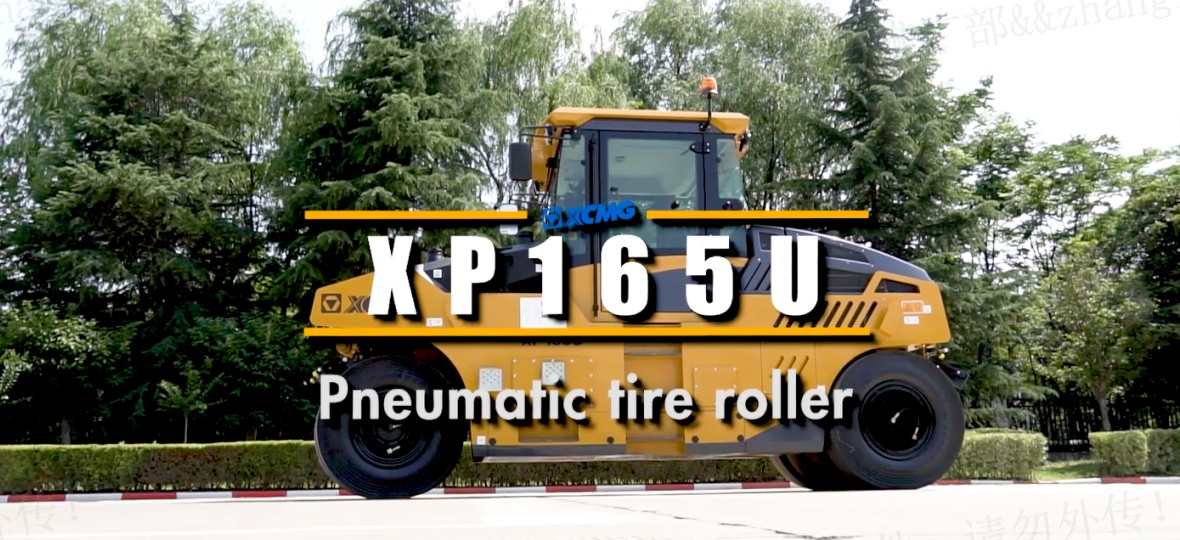

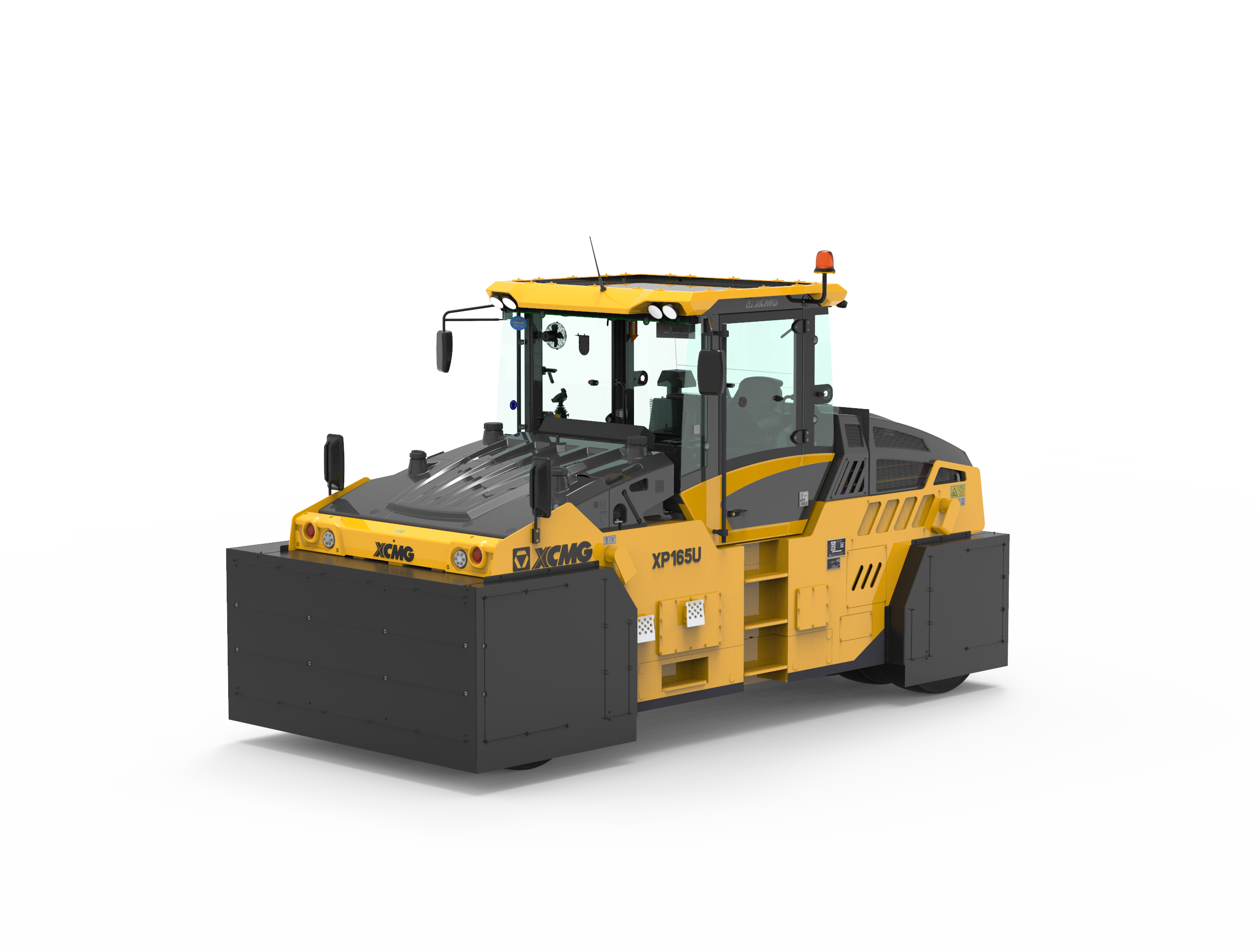

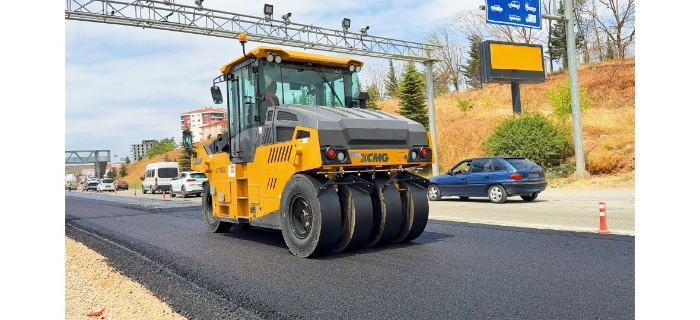

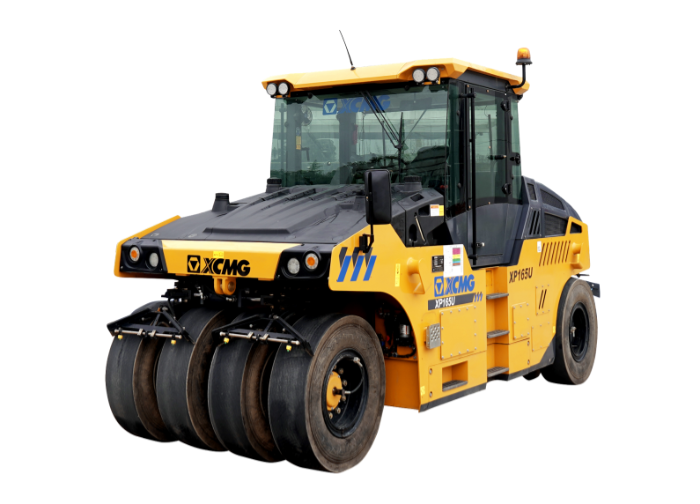

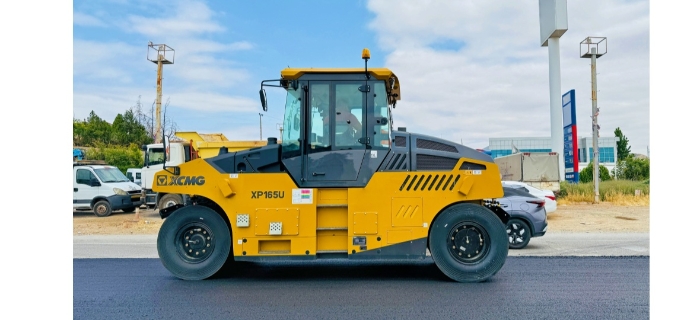

XP165U pneumatic tire roller is a medium-tonnage pneumatic tire roller produced according to European market requirements, which will take pneumatic tires as workingdevice for compacting paved materials. The pneumatictire roller is mainly applicable for compacting operation ofasphalt pavement, foundation layer, secondary foundation layer, dam and filling engineering. It is an ideal set ofcompacting equipment for building high grade highway,airport, port, dam and industrial construction site.

XP165U

Service Outlets Order Online

Parameters
Images Gallery

PARAMETERS

Item Unit Parameter: Engine - Cummins; Rated Power kW 90; Emission - EU Stage V / T4F; Operating Weight kg 16000; Working Width mm 2075; Dimensions mm 5,100 x 2,175 x 3,000; Working speed km/h 0～19; Gradeability % 30; Minimum turning radius mm 8645; Minimum ground clearance mm 280; Wheelbase mm 3900; Steering angle ° ±30; Oscillation of front wheel mm ±50; Braking distance m ≤7200; Drum width mm 2075; Overlapping quantity mm 30; Ground pressure kPa 150～350; Rated power kW 90; Rated speed r/min 2200
