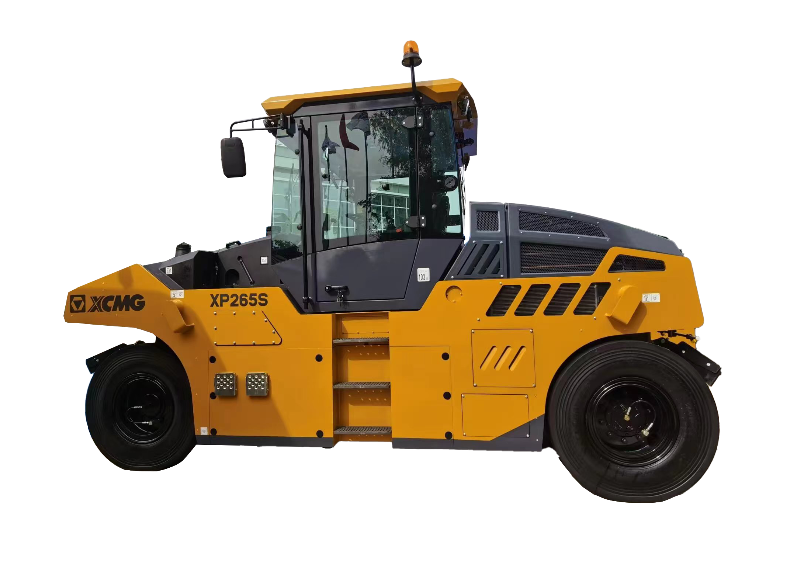

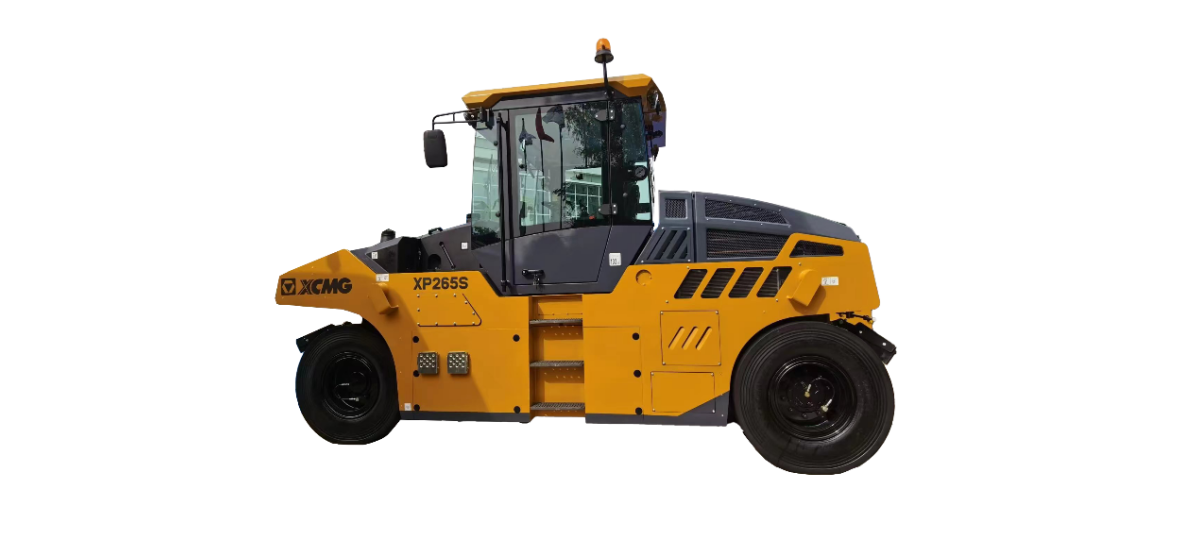

XP265S

Pneumatic Roller

XP265S

Engine: Cummins Rated Power(kW): 132 Emission: Stage Ⅲ

Order Online Service Outlets

XP265S

XP265S tire roller is a large-tonnage tire roller produced according to market requirements, which will take pneumatic tires as working device for compacting paved materials. The tire roller is mainly applicable for compacting operation of asphalt pavement, foundation layer, secondary foundation layer, dam and filling engineering. It is an ideal set of compacting equipment for building high grade highway, airport, port, dam and industrial construction site.

XP265S

Service Outlets Order Online

Parameters
Images Gallery

PARAMETERS

Item Unit Parameter: Engine - Cummins; Rated Power kW 132; Emission - Stage Ⅲ; Operating Weight kg 26300; Working Width mm 2360; Dimensions mm 5,100 x 2,500 x 3,200; Working speed km/h 0～16; Gradeability % 30; Minimum turning radius mm 7900; Minimum ground clearance mm 280; Wheelbase mm 4000; Steering angle ° ±35; Oscillation of front wheel mm ±50; Braking distance m ≤5; Drum width mm 2360; Overlapping quantity mm 65; Ground pressure kPa 200～470; Rated power kW 132; Rated speed r/min 2000
