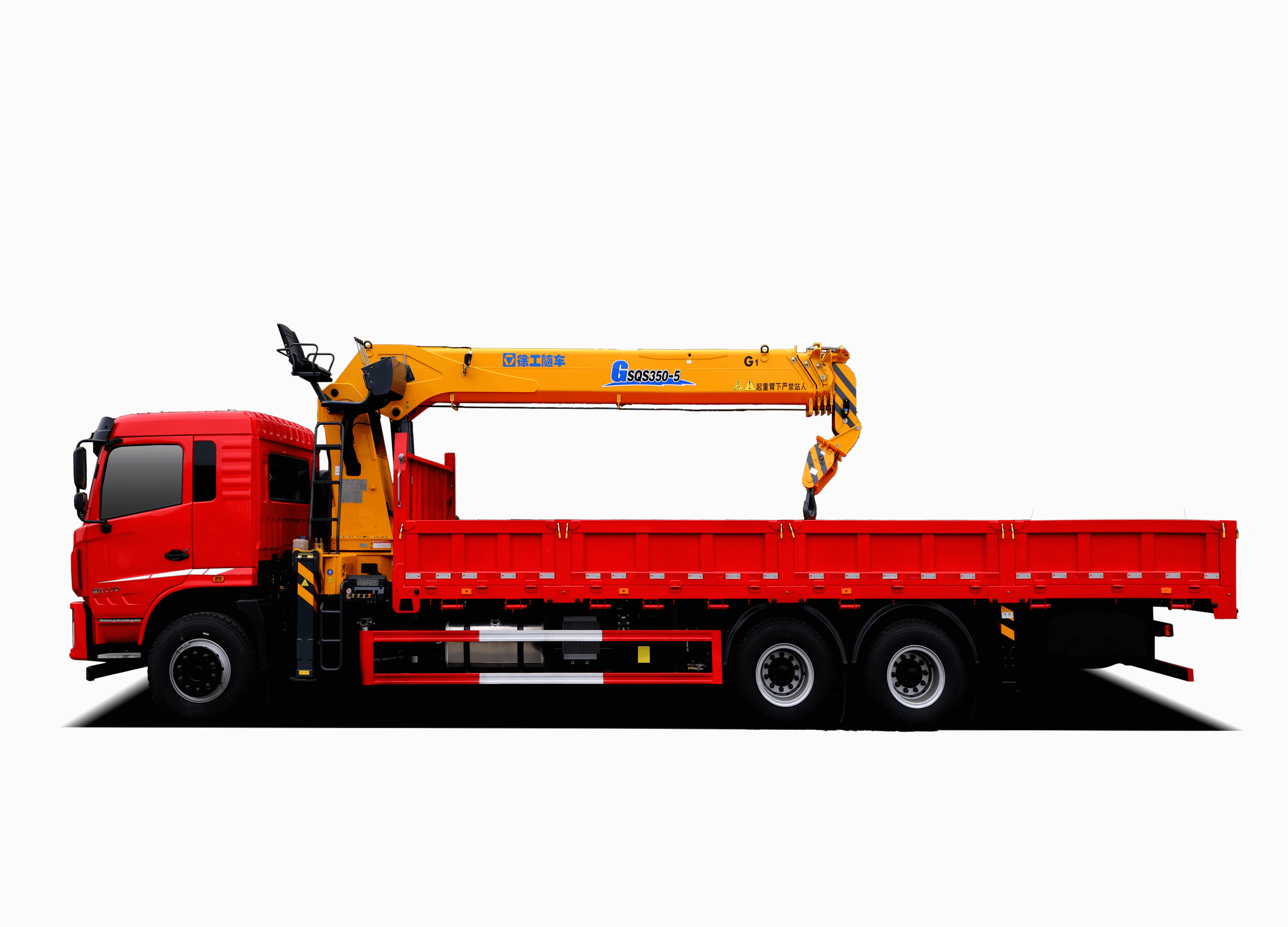

Truck Mounted Crane
Drive Type: 6X4/3 Kerb Mass(kg): - GVW(kg): 18500

1.The new octagonal arm section has greater lifting capacity and strong bending and tor- sional resistance under the same amplitude.

2.Rotary table high seat control, with better working view, remote control can be optional.

3.Using manual rotation and automatic turning of double-stage double-cylinder leg, improve the adaptability of the site on the basis of a larger span, improve the stability of the ma- chine.

4.Onboard hydraulic proportional valve, good micro-motion performance, and can carry out compound action, high operating comfort.

5.The standard high-power radiator ensures that the oil temperature of the crane is not high for a long time.

6.Standard hydraulic control torque limit valve, to ensure that customers use the crane more at ease.

7.Standard L-HM(CY) XCMG wide temperature hydraulic oil, can be used in winter and summer.

  • Parameters
  • Cases
Item Unit Parameter
Drive Type - 6X4/3
Kerb Mass kg -
GVW kg 18500
Max. Speed km/h 90
Min. Turning Diameter m -
Grade Ability - -
Fuel Tank L -
Dimension mm 10940*2530*3850
Wheelbase mm 5225+1350
Min. Clearance mm -
Approach Angle - 16
Departure Angle - 14
Cabin Model - -
Left/Right Driving - -
AC - -
Person Allowed in - 2
Engine Model - MC11.40-50
Emission Standard - Euro V
Displacement L 9.726
Output Power KW 294
Max Torque Speed N·m -
Transmission Model - -
PTO - HW19709XST
Front Axle Model - -
Rear Axle Model - -
Main Reducer Ratio - -
Rim - -
Tire - 315/80R22.5
