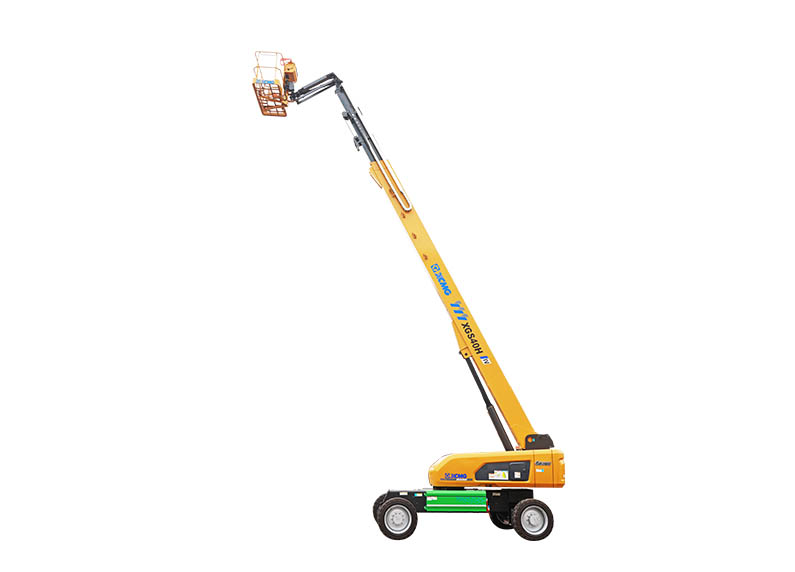

XGS40H

Hybird Boom Lift

XGS40H

Working Height(mm): 40200 Lift capacity(kg): 300kg (unlimited)/460kg(limited) Weight(kg): 22300

Order Online Service Outlets

XGS40H

XGS40H

Service Outlets Order Online

Parameters
Cases

PARAMETERS

Item Unit Parameter: Working Height mm 40200; Lift capacity kg 300kg (unlimited)/460kg(limited); Weight kg 22300; Overall dimension-Stowed mm 14060x2490x3000; Overall dimension-Transportation mm 12500x2490x3000; Dimension of working platform mm 2400x900x1150; Wheelbase mm 3800; Overall Width Axle retracted/Axle extended 2490mm/3800mm; Fly jib length mm 1420; Ground clearance mm 300; Max.Platform height m 38.2; Max.Working range m 24.9; Max.Occupants - 3; Max.Working slope - X-3°/ Y-3°; Telescopic boom luffing range - -6.5～+75°; Flying jib luffing range - -60°~+70°; Turntable rotation - 360°; Platform rotation - 160°; Drive speed stowed 5.0 km/h; Drive speed Up or extended 2 km/h; Min.Turning radius-Axle retracted inside/outside 7700mm/10800mm(2-wheel) 3300mm/6800mm(4-wheel); Min.Turning radius-Axle extended inside/outside 3300mm/8200mm(2-wheel) 2400mm/5800mm(4-wheel); Turntable tailswing Axle retracted/Axle extended 2350mm/1700 mm; Max.Gradeability - 40% (21°)
