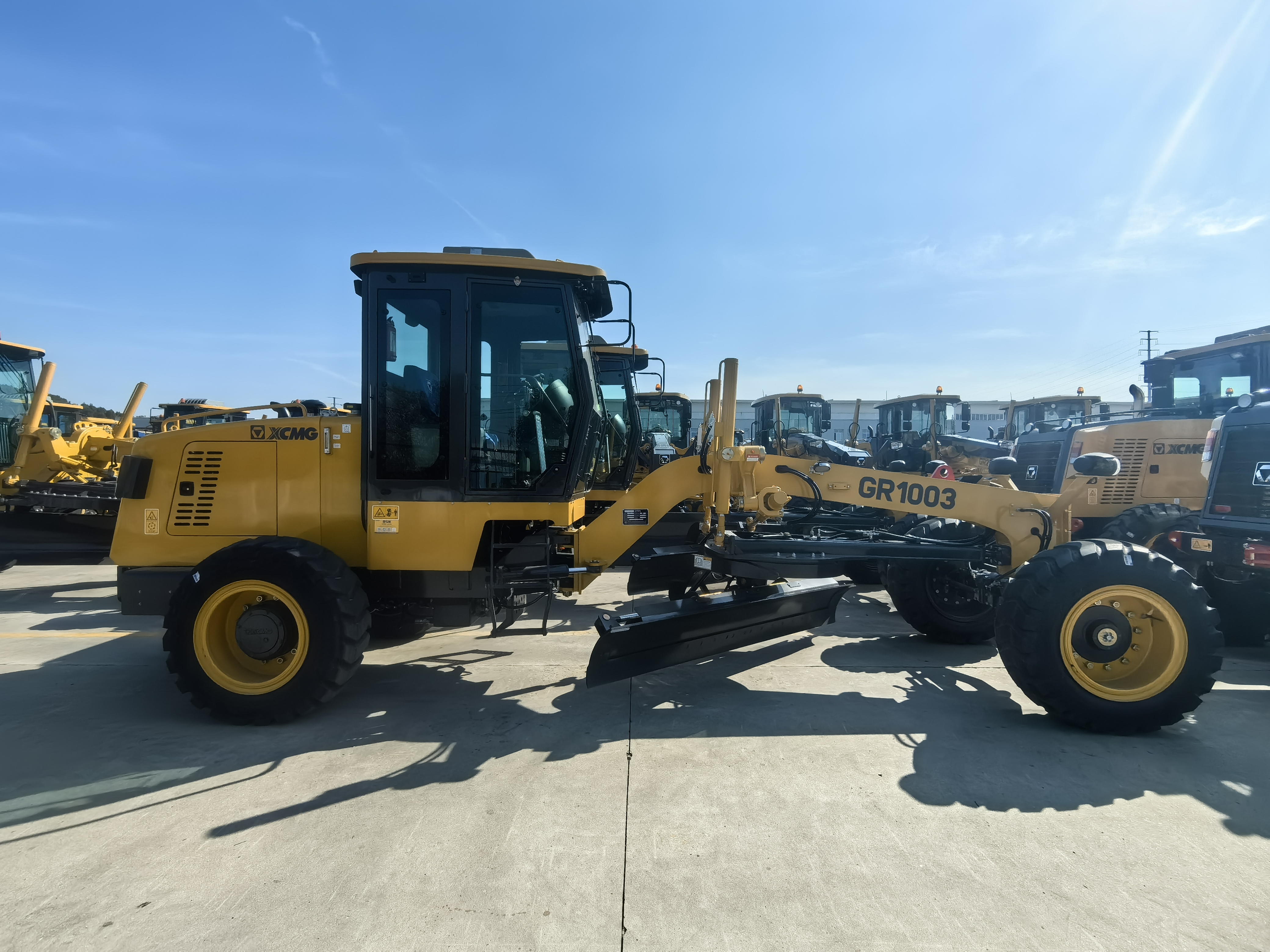

GR1003

Motor Grader
GR1003
Engine model(/): WP4.1 Rated power/speed(kW/rpm): 74/2200 Machine dimension(standard)(mm): 7230×2375×3150
GR1003

The GR1003 motor grader is mainly used forground leveling,ditching,slope scraping,bulldozing,scarification,snow removal for large areassuch as highway,airports,farmlands etc.It is thenecessary construction machinery for urban andrural road construction and water conservancyconstruction,farmland improvement and so on.

GR1003
  • Parameters
  • Images Galler
PARAMETERS
Item Unit Parameter
Engine model / WP4.1
Rated power/speed kW/rpm 74/2200
Machine dimension standard 7230×2375×3150
Machine weight standard 7500
Tire specification / 16/70-24/13.00-24
Ground clearance Front axle 550
Wheel track mm 1900
Axle distance between front and rear mm 5135
Minimum ground clearance, front axle mm -
Wheel base between middle and rear mm -
Drive speed, forward km/h 5、8、11、17、24、38
Drive speed, reverse km/h 5、11、24
Traction force f=0.75 kN ≥39
Maximum gradeability % ≥25
Tire inflation pressure kPa 300
Hydraulic system type / -
Work system pressure MPa 16
Transmission box pressure Mpa 1.4—1.8
Maximum steering angle, front wheel ° ±49
Allowable tilt angle, front wheel ° ±17
Maximum oscillation, front axle ° ±15
Maximum oscillation, balance box °
Maximum steering angle, frame ° ±27
Minimum turning radius m 6
Maximum lift above ground mm 310
Maximum cutting depth mm 350
Sideshift distance left/right mm -
Maximum tilt angle ° 45
Cutting angle ° 28—70
Swivel angle ° 120
Length x Height mm 3048×450
Coolant L 50
Fuel tank L 260
Engine L 18
Transmusswon box L 26
Balance box L -
Drive axle L 28
Hydraulic oil L 50
