XM1005F

Medium Milling Machine
XM1005F
Engine(-): Shangchai Rated Power(kW): 191.5 Emission(-): EU Stage 3a/CN Stage Ⅲ
XM1005F

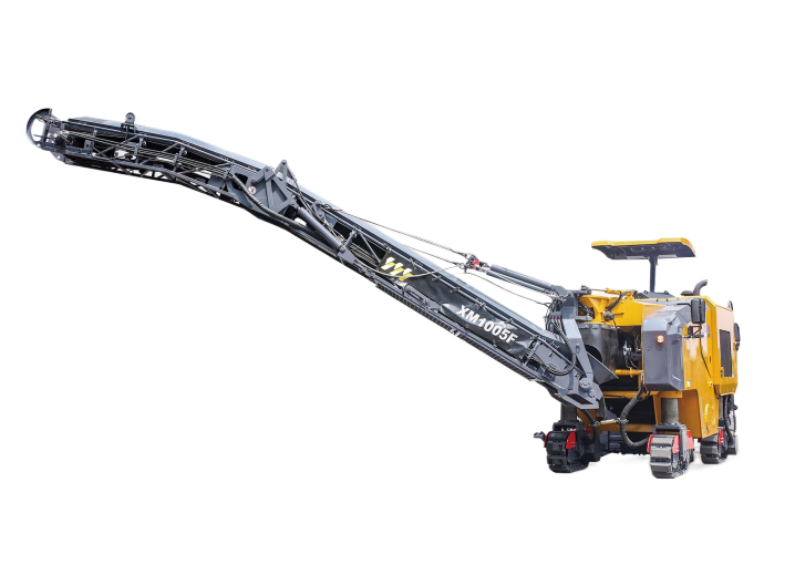

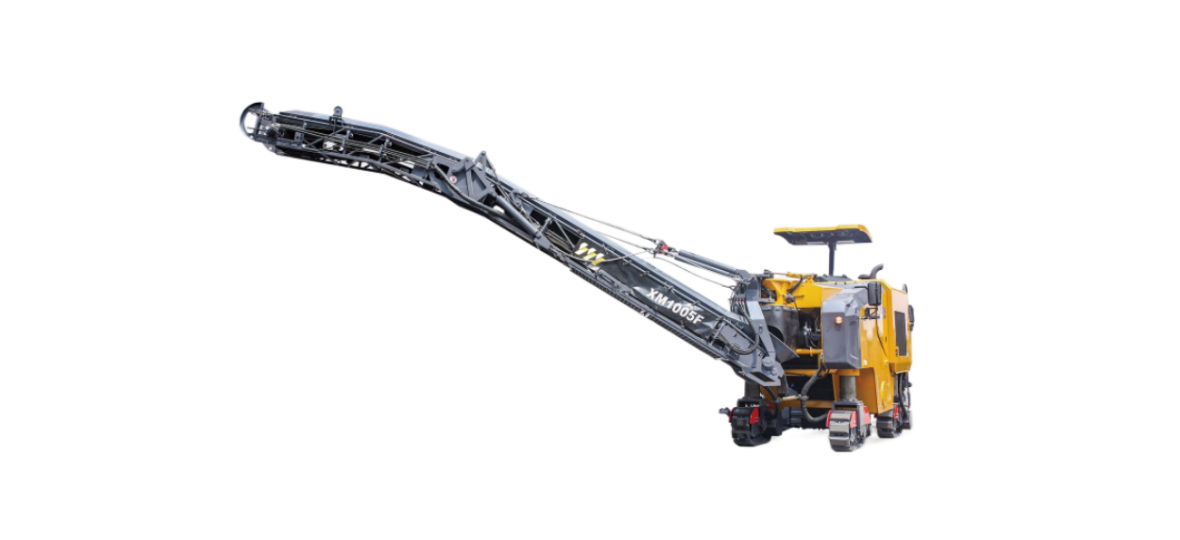

XM1005F milling machine is a kind of front-conveying medium-sized milling machine with high performance, whichis mainly used for excavation and renovation of asphalt concrete pavements of highways, urban roads, airports, freight yards, parking lots, etc. lt can efficiently removeroad congestion, waves, mesh patterns, ruts, etc.; excavate the pavement pits and trenches; roughen the cementpavement and mill the surface faulting.

XM1005F
  • Parameters
  • Images Gallery
PARAMETERS
Item Unit Parameter
Engine - Shangchai
Rated Power kW 191.5
Emission - EU Stage 3a/CN Stage Ⅲ
Weight in transportation state kg 15500
Weight in work state kg 16300
Milling width mm 1000
Max.Milling Depth mm 300
Number of cutters - 91
Transport Dimensions / L x W x H mm 9480 x 2310x 2800
