XLY6000

Slipform Paver
XLY6000
Standard paving width(mm): 3400 Maximum paving width(mm): 6000 Paving thickness(mm): 0~350
XLY6000

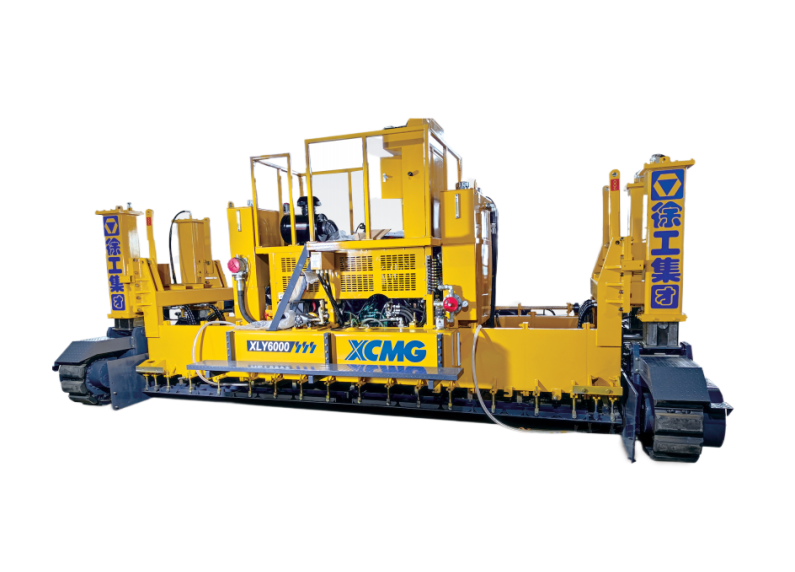

XLY6000 Slipform Paver is a special construction equipment for cement pavement independently developed by our company. It can meet the needs of high-speed development of highway construction, greatly improve the construction quality and speed of cement concrete structure, and can adapt to the construction of various roads.

XLY6000
  • Parameters
PARAMETERS
Item Unit Parameter
Standard paving width mm 3400
Maximum paving width mm 6000
Paving thickness mm 0~350
Paving speed m/min 0~10
Gradeability % 10
Vibration frequency Hz 0~167
Engine model - CUMMINS QSB6.7-C220-30
Rating power kW 163
Rating rotate speed r/min 2200
Screw rotate speed r/min 0~34
Overall weight t 22
Transportation dimensions mm 4000×7300×2800
