XLY9000

Slipform Paver
XLY9000
Standard paving width(mm): 4250 Maximum paving width(mm): 9000(Customizable 9750) Paving thickness(mm): 0~350(Customizable 420)
XLY9000

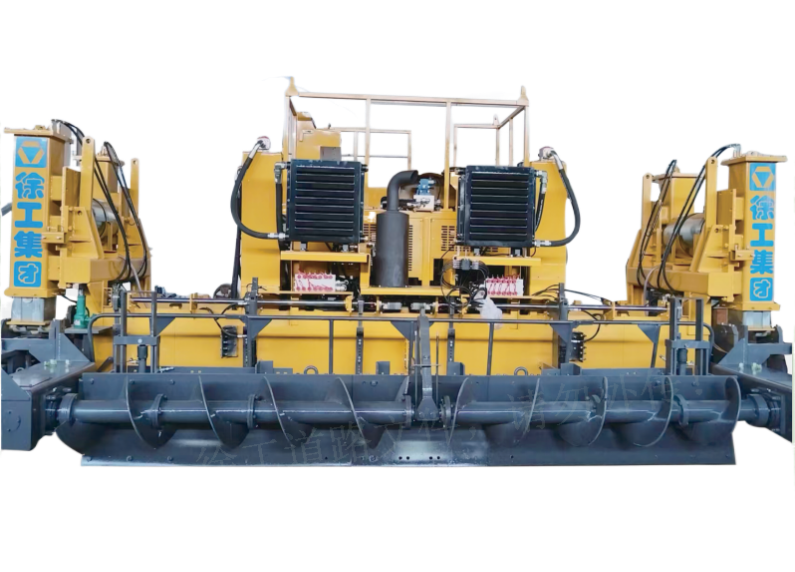

XLY9000 Slipform Paver is a special construction equipment for cement pavement independently developed by our company. It can meet the needs of high-speed development of highway construction, greatly improve the construction quality and speed of cement concrete structure, and can adapt to the construction of various roads.

XLY9000
  • Parameters
PARAMETERS
Item Unit Parameter
Standard paving width mm 4250
Maximum paving width mm 9000(Customizable 9750)
Paving thickness mm 0~350(Customizable 420)
Paving speed m/min 0~10
Gradeability % 10
Vibration frequency Hz 0~167
Engine model - CUMMINS QSB6.7-C260-30
Rating power kW 242
Rating rotate speed r/min 2100
Screw rotate speed r/min 0~34
Overall weight t 33
Transportation dimensions mm 4150×10400×2800
